Standard X-axis Rack and Pinion Translation Stage (MWX Series)
Standard X-axis Rack and Pinion Translation Stage (MWX Series)



Standard X-axis Rack and Pinion Translation Stage (MWX Series)

SEM Equipment Sdn. Bhd. flag
Category: PRECISION POSITIONING STAGE Available
For more information, visit our official website at sem-eq.com
Visit Official Site Contact Us
Description




Model :














Features :

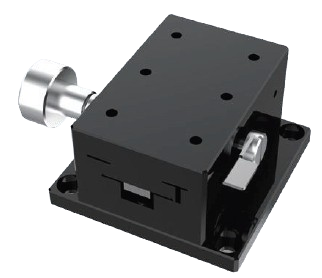

  1. The MWX series translation stages are economical manual translation stages independently developed by our company.
  2. Constructed primarily of aluminum alloy and driven by rack and pinion gears, they enable rapid planar movement of workpieces.
  3. The anodized surface provides excellent rust resistance.

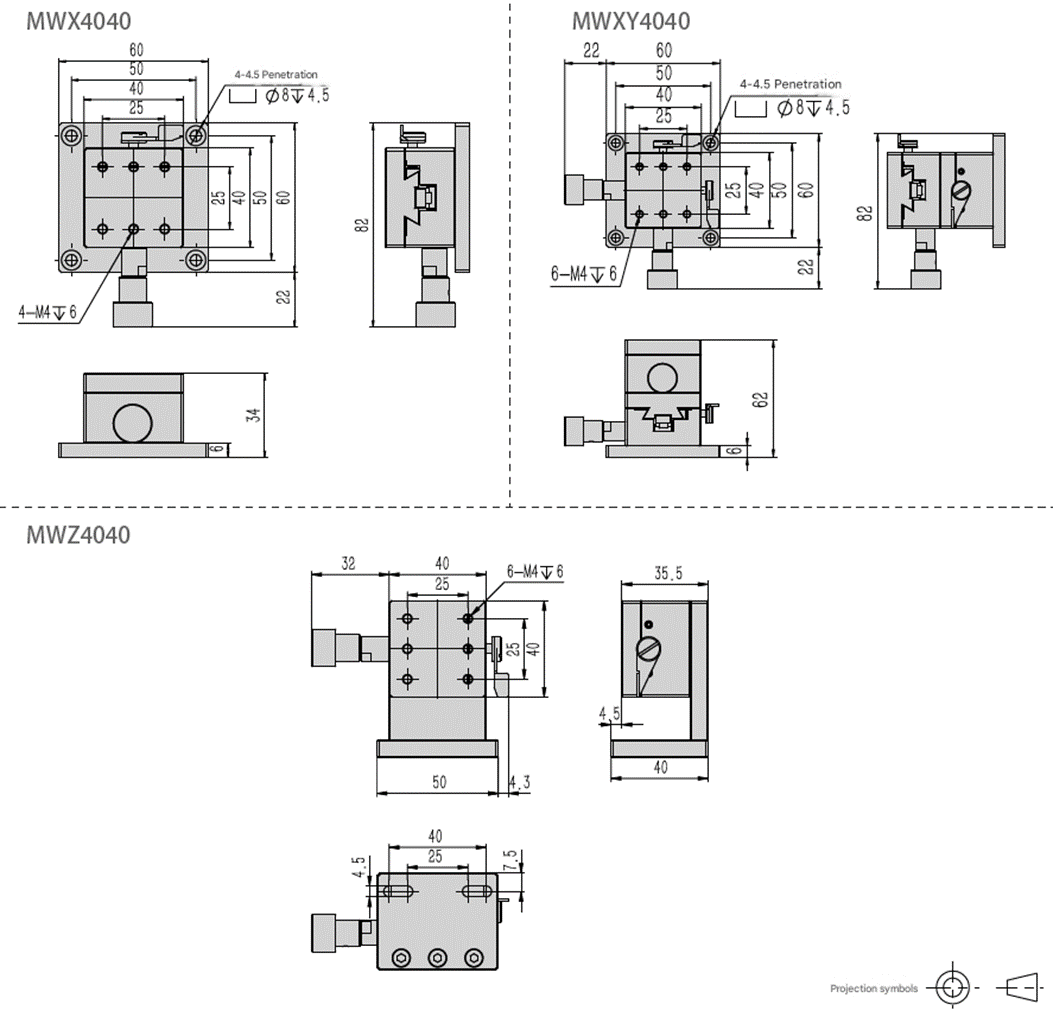

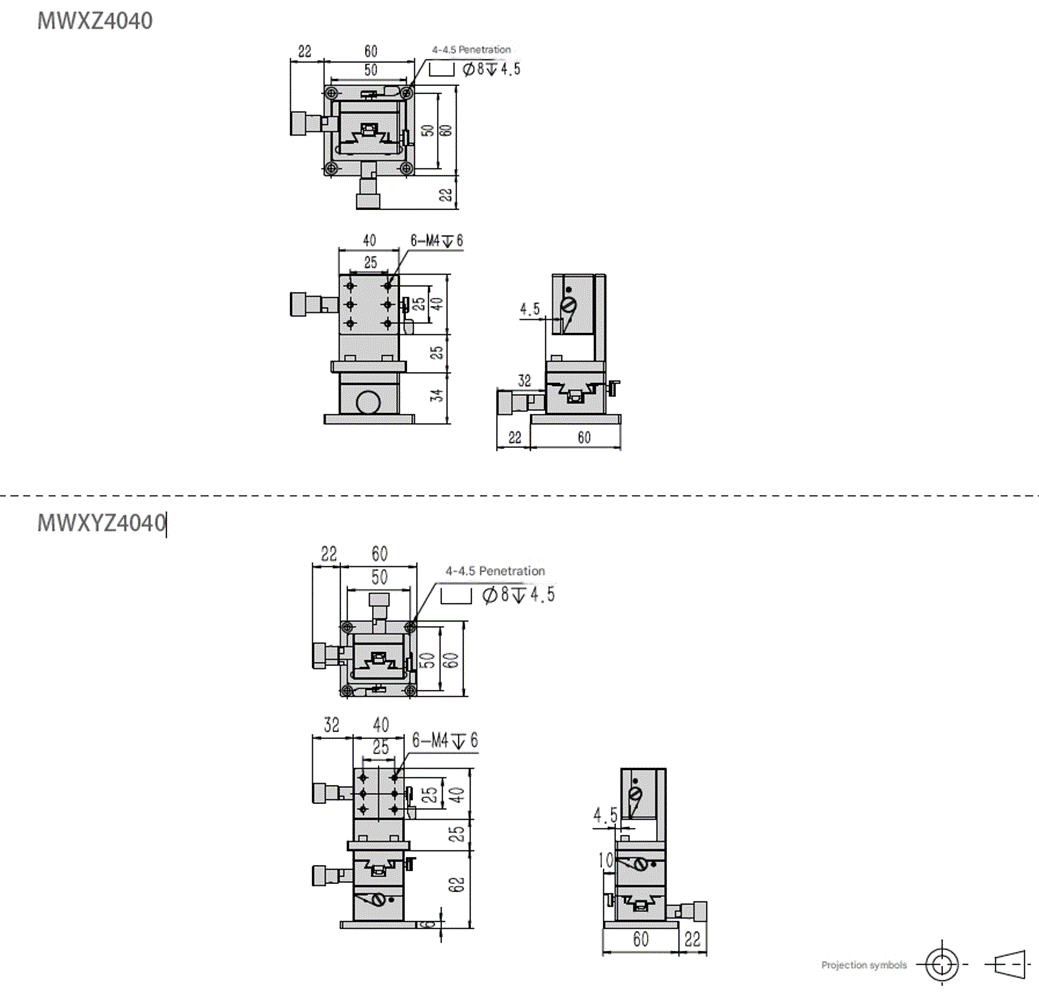

Dimension :










Specifications :

Model MWX4040 MWXY4040 MWZ4040
Moving direction X-axis XY axis Z axis
Main body material Aluminum alloy (black anodized)
Driver mode Handwheel + rack and pinion
Countertop size 40mm×40mm
Countertop thickness 34 mm 62 mm /
Stroke ±10mm
Load 29. 4N (3kgf)
Body weight 0. 22kg 0.39kg 0.25kg
Minimum read volume of centigrams 0.1mm
Moving parallelism <0.05mm/20mm
Parallelism 0.03 mm 0.06 mm /

Model MWXZ4040 MWXYZ4040
Moving direction XZ axis XYZ axis
Main body material Aluminum alloy (black anodized)
Driver mode Handwheel + rack and pinion
Countertop size 40mm×40mm
Countertop thickness 34 mm 62 mm
Stroke ±10mm
Load 29. 4N (3kgf)
Body weight 0.47kg 0.65kg
Minimum read volume of centigrams 0.1mm
Moving parallelism <0.05mm/20mm
Parallelism 0.03 mm 0.06 mm



Model MWX4060 MWXY4060 MWZ4060
Moving direction X-axis XY axis Z axis
Main body material Aluminum alloy (black anodized)
Driver mode Handwheel + rack and pinion
Countertop size 40mm×60mm
Countertop thickness 34 mm 62 mm /
Stroke ±15mm
Load 49N (5kgf)
Body weight 0.28kg 0.5kg 0.33kg
Minimum read volume of centigrams 0.1mm
Moving parallelism <0.05mm/30mm
Parallelism 0.04mm 0.08mm /
