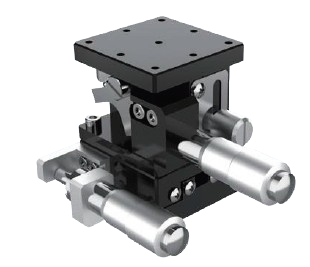

Standard XZ-axis Cross Guide Manual Translation Stage (MXZ- Series)

Model :


• MXZ40-L, MXZ60-L-1, MXZ60-L-2, MXZ60-L-2

1. The MXZ series translation stage combines an MX stage with an MZ stage, providing XZ-axis translation.
2. Constructed primarily of aluminum alloy, it features a black anodized surface that effectively prevents light reflection and offers excellent rust resistance.
3. The load capacity values  are for reference only. They may not be suitable for use under conditions of vibration, high loads, or other loads.
4. Instructions: Loosen the locking knob, adjust the drive mechanism (differential head) to the desired position, and then tighten the locking knob.

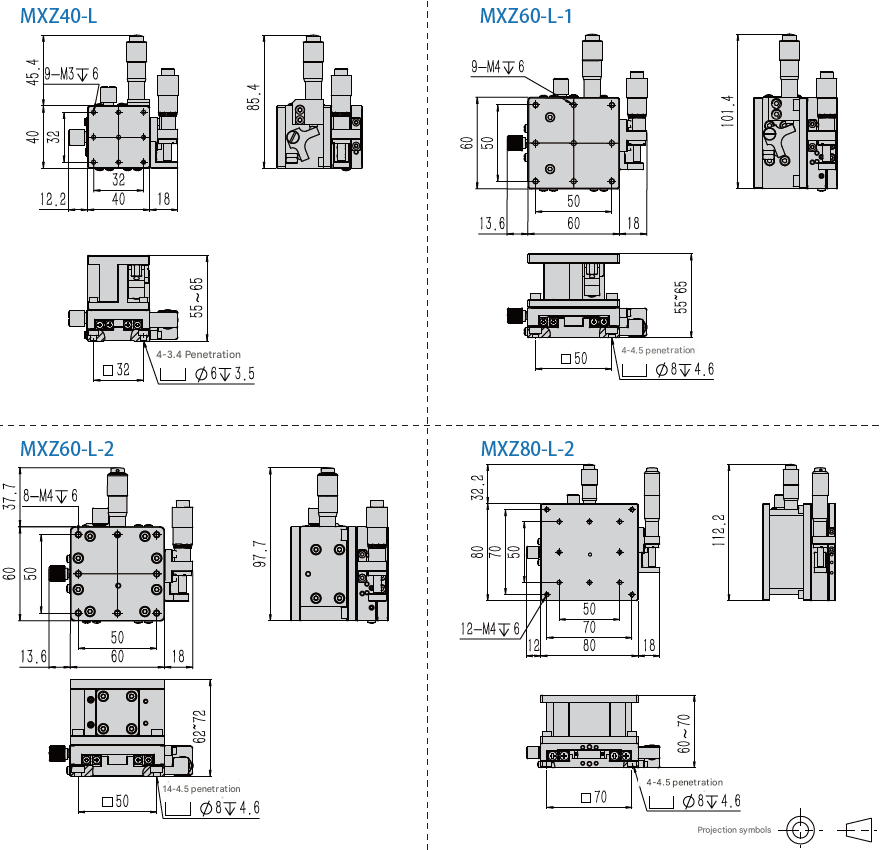

• MXZ40-L, MXZ60-L-1, MXZ60-L-2, MXZ60-L-2

• MXZ40-L, MXZ60-L-1, MXZ60-L-2, MXZ60-L-2
