TH2518 Series
DC Resistance Meter
Basic Accuracy: 0.05%
Test Range 10uΩ-200kΩ
With temperature compensation
Temperature Test Accuracy ±1％Rd，Range: -10℃-99.9℃
16 Channels(Option 90 Channel)
Product description
■ 4.3 inch 24-color touch LCD screen with 480 × 272 resolution
■ Chinese and English optional operation interface
■ Up to 90-channel resistance/temperature scan tests
■ Support 6 units for free insertion and removal, simultaneous measurement between test units
■ Maximum test speed can reach 600 times / sec
■ Maximum resistance accuracy: 0.05%, minimum resolution: 10uΩ
■ Basic temperature accuracy: 0.2 °C
■ The adopted test end of the scan test channel is programmable
■ Compatible with scanning and stand-alone measurement modes

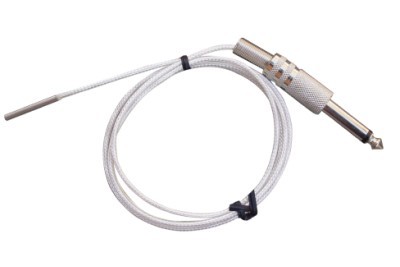

■ Temperature measurement can support PT100, PT500 and analog voltage three temperature sampling methods
■ Temperature compensation function (TC)
■ One-click screen capture function
■ Data logging function
■ Automatic upgrade of instrument operating software via USB HOST
■ Comparison sort results of channel, board and machine-level can be output
■ Handler interface for online operations
■ Components
Resistor, inductor, transformer, motor, relay, circuit solder joint,capacitor riveting point
■ Cables, connectors
Strand wire, connectors, switches
■ Material
Heat-sensitive materials (fuses, sensor for thermistors), conductive materials such as metal foil
■ New energy
Electric vehicle battery pack connecting bridge, battery connection resistor
