Features
-40Vmax XGT Li-Ion battery and BL motor allow for excellent balance of high power and lightweight maneuverability similar to corded tools
-Increased visibility of ink line position
-BL motor delivers 6,000 RPM for fast cutting
-Large cutting capacity (62.5 mm at 90°) and bevel capacity (0° - 48°) with a positive stop at 45°
-Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
-Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance
-Lock-off (2 stage) safety switch for increased operator safety
Specification
40Vmax bar 8.02.0Ah
Blade Diameter 190 mm (7-1/2") | 185 mm (7-1/4")
Max Cutting Capacity 90°: 62.5 mm (2-7/16") | 60 mm (2-3/8")
45°: 44.5 mm (1-3/4") | 43 mm (1-11/16")
48°: 42 mm (1-5/8") | 41 mm (1-5/8")
No Load Speed (RPM) 6,000
Dimensions (L x W x H) 322 x 210 x 290 mm (12-5/8 x 8-1/4 x 11-3/8")
Net Weight 4.4 - 4.7 kg (9.7 - 10.4 lbs.)
Work Amount (approx.) 145 pcs Melapi thickness: 60 mm, width 300 mm
with BL4040
* Recommended batteries 4.0 Ah, 4.0 Ah (F), 5.0 Ah, 8.0 Ah
Standard Equipment
TCT Saw Blade (B-62022), Dust Nozzle, Hex Wrench, Guide Rule
Available Options

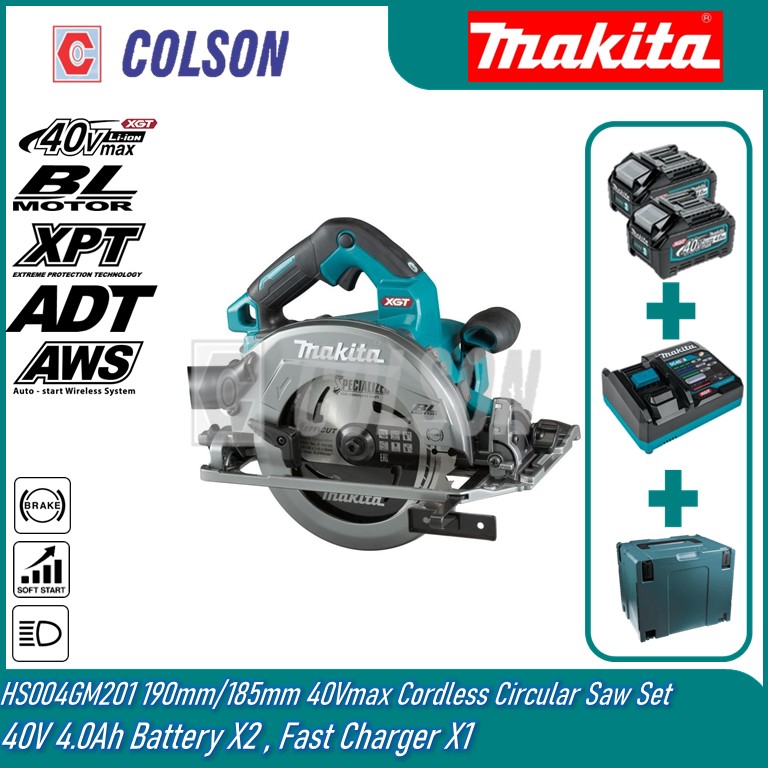

GM201: 1x Fast Charger, 2x 4.0Ah Battery, 1x Makpac Connector Box Type 4

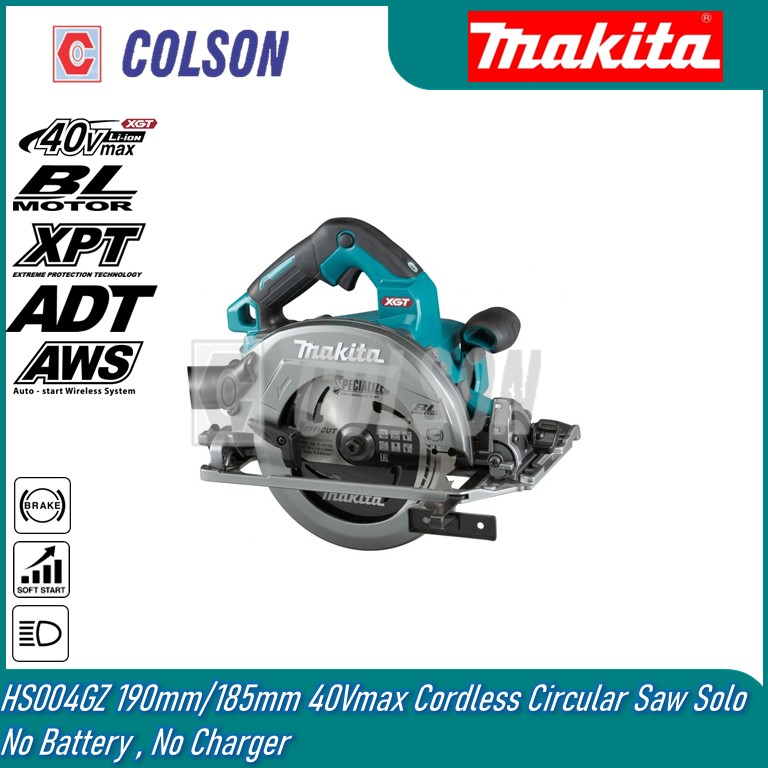

GZ: Without Battery, Charger & Carrying Case
