Description
SFJ-231- Fifth Generation Helium Leak Detector
-

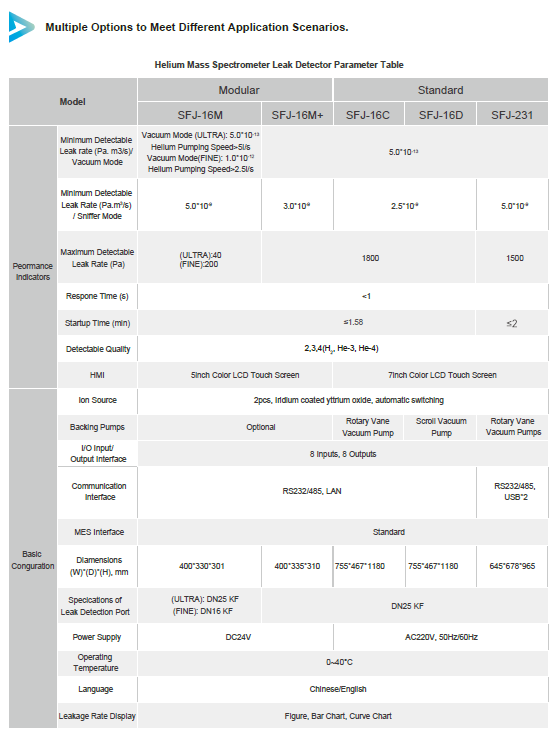

Technical Specification
|
No. |
Specifications |
Parameters |
|
1 |
Minimum Detectable Leak rate (Pa. m3/s) |
5.0*10-13 (Vacuum mode)
5.0*10-9 (Sniffer mode) |
|
2 |
Maximum allowable leak detection pressure (Pa) |
1500 |
|
3 |
Respone Time (s) |
<1 |
|
4 |
Startup Time (min) |
≤ 2 |
|
5 |
Detectable Quality |
2,3,4(H2, He-3, He-4) |
|
6 |
HMI |
7inch Color LCD Touch Screen |
|
7 |
Ion Source |
2pcs, Iridium coated yttrium oxide, automatic switching |
|
8 |
Backing Pumps |
Rotary Vane Vacuum Pumps |
|
9 |
I/O Input/Output Interface |
8 Inputs, 8 Outputs |
|
10 |
Communication Interface |
RS232/485, USB*2 |
|
11 |
MES Interface |
Standard |
|
12 |
Diamensions (W*D*H-mm) |
645*678*965 |
|
13 |
Power Supply |
AC220V, 50Hz/60Hz |
|
14 |
Operating Temperature |
0~40°C |
|
15 |
Language |
English |
|
16 |
Specications of Leak Detection Port |
DN25 KF |
Advantages:
1. Harmonic Decoupling Algorithm: Ultra-fast response short response time for shart-up more accurate sealing detection.
2. New structure: Mass spectroment chamber, circuit board, external dimensions, high robustness, low failure rate, easy and efficient operation and maintenance.
3. Stable input and Ecient output: Equipped with RS232, RS485 and USB communication interfaces, it is able to work stably under the worst working conditions after various extreme tests, digital and anaing outputs are availble to meet the needs of remote operating system integration.
4. Rapid and accurate detection of helium or hydrogen by vacuum helium injection method, sniffer method, helium hood method, back pressure method and other detection methods, it is suitable for industrial leak detection in various high requirements and harsh environments.
5. Magnetic Mass Spectrometry (MMS) principle with high detection accuracy and wide
detection range
-
