FUNCTIONS & KEY FEATURES
• Bosch Heavy Duty - Power, Performance and Robustness redefined!
• Rotation Control Clutch - Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
• Vibration Control - Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
• Speed Selection - Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
• Vario Lock - Convenient adjustment of the chisel position enabling you to adapt it to each work situation

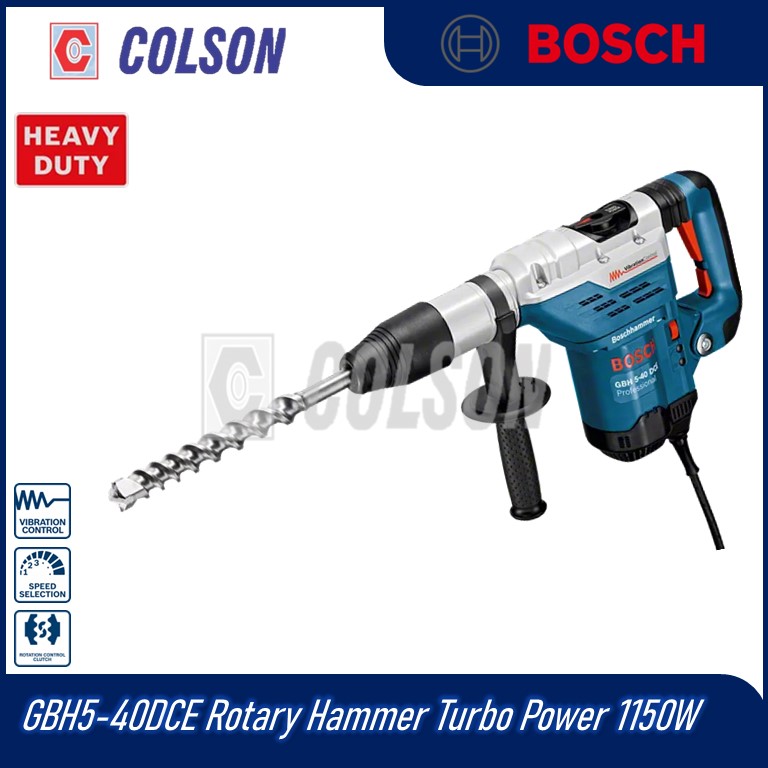

The fast all-rounder with Vibration Control
• Fastest drilling rate in its class due to 1150 W motor and powerful hammer mechanism
• SDS max comfort for easy and fast tool changes with one hand
• Vibration Control (10 m/s² for drilling, 8 m/s² for chiselling) ensures convenient working, even in time-intensive applications
SPECIFICATIONS :
Additional data
Rated input power 1,150 W
Impact energy 8.8 J
Impact rate at rated speed 1,500 – 3,050 bpm
Rated speed 170 – 340 rpm
Weight 6.8 kg
Tool dimensions (length) 485 mm
Tool dimensions (height) 260 mm
Tool holder SDS max
Drilling range
Drilling dia. concrete, hammer drill bits 12 – 40 mm
Opt. appl. range concrete, hammer drill bits 18 – 32 mm
Drilling dia. concrete, breakthrough drill bits 45 – 55 mm
Drilling diameter in concrete with core cutters 40 – 90 mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 10.5 m/s²
Uncertainty K 1.5 m/s²
Total vibration values (Chiselling)
Vibration emission value ah 7.5 m/s²
Uncertainty K 1.5 m/s²
Hammer drilling in concrete
Vibration emission value ah 10.5 m/s²
Uncertainty K 1.5 m/s²
Chiselling
Vibration emission value ah 7.5 m/s²
Uncertainty K 1.5 m/s²
