RS-X Winner, for those who dare to follow their own path. With a new and improved 6-speed engine for amazing performance, and an assist & slipper clutch for smooth control. Conquer every ride and reach your dreams, your way.
Type
Cub
Displacement
149.2 cm³
Max Power
11.8 kW / 9,000 rpm

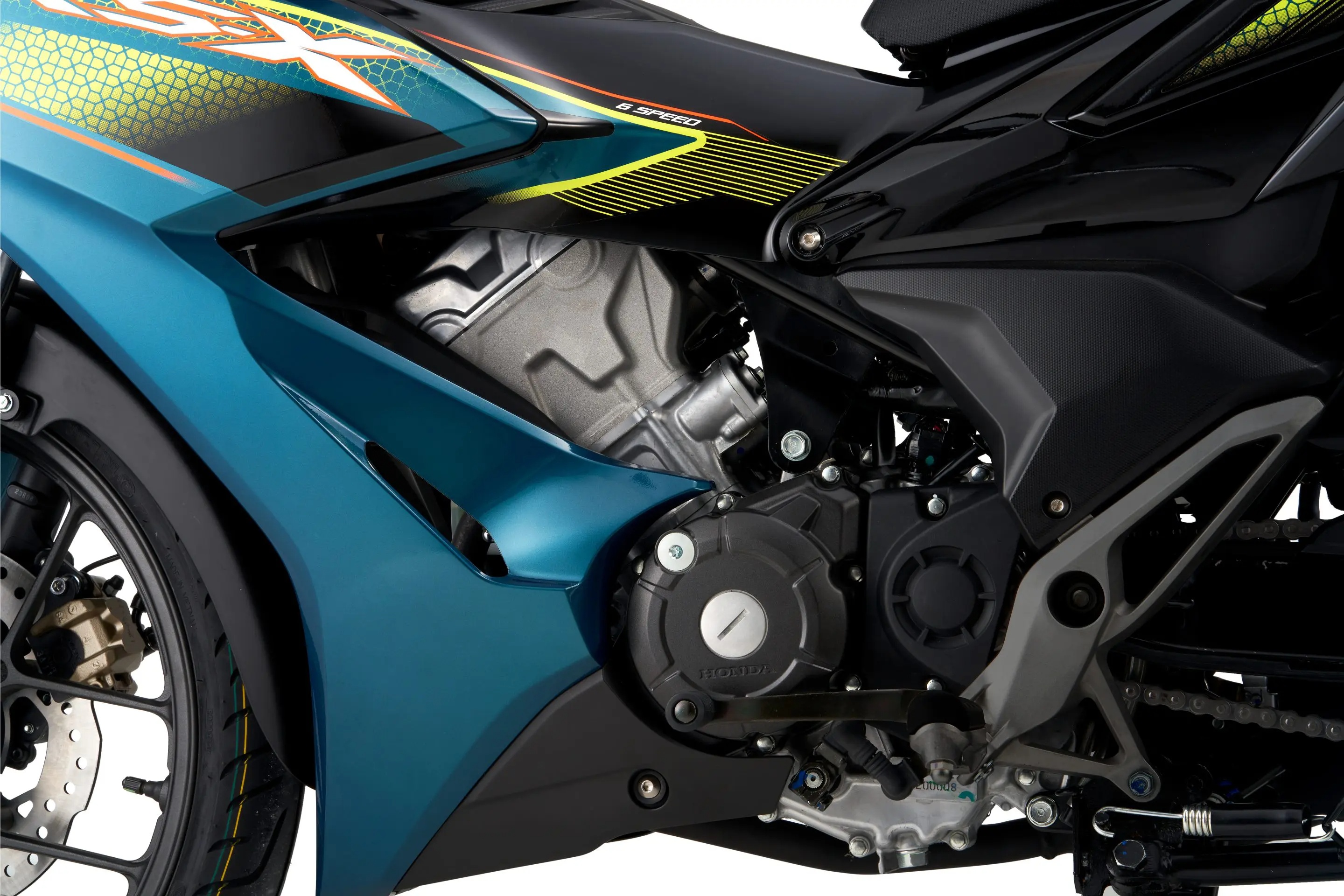

Designed with outstanding power, the All-New RS-X Winner delivers exceptional acceleration across the engine's RPM range. Certified as an Energy Efficient Vehicle (EEV) for more mileage and less carbon emission.

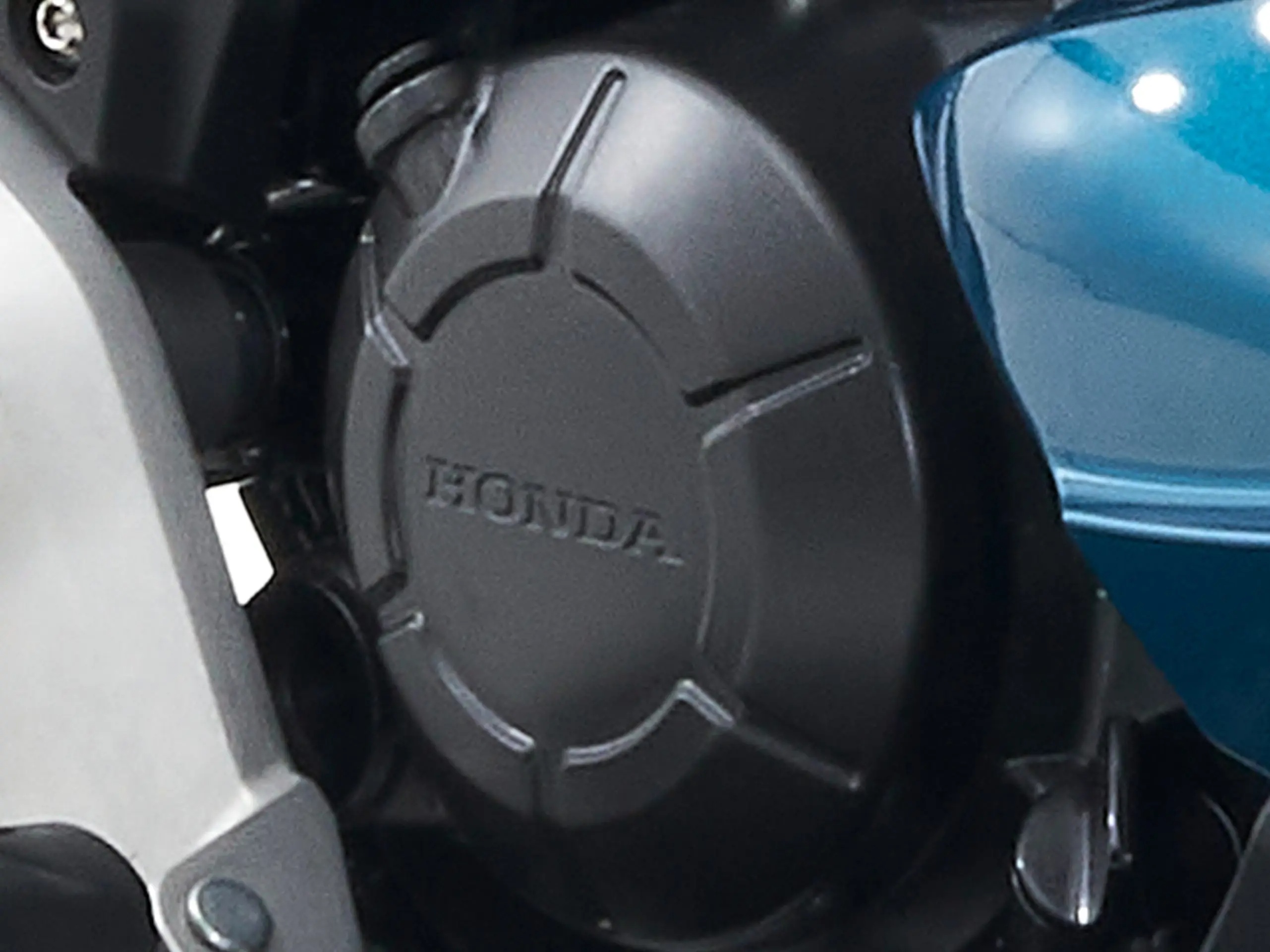

This superb feature helps prevent rear tire slippage and improves rider maneuverability through enhanced clutch mechanism handling.

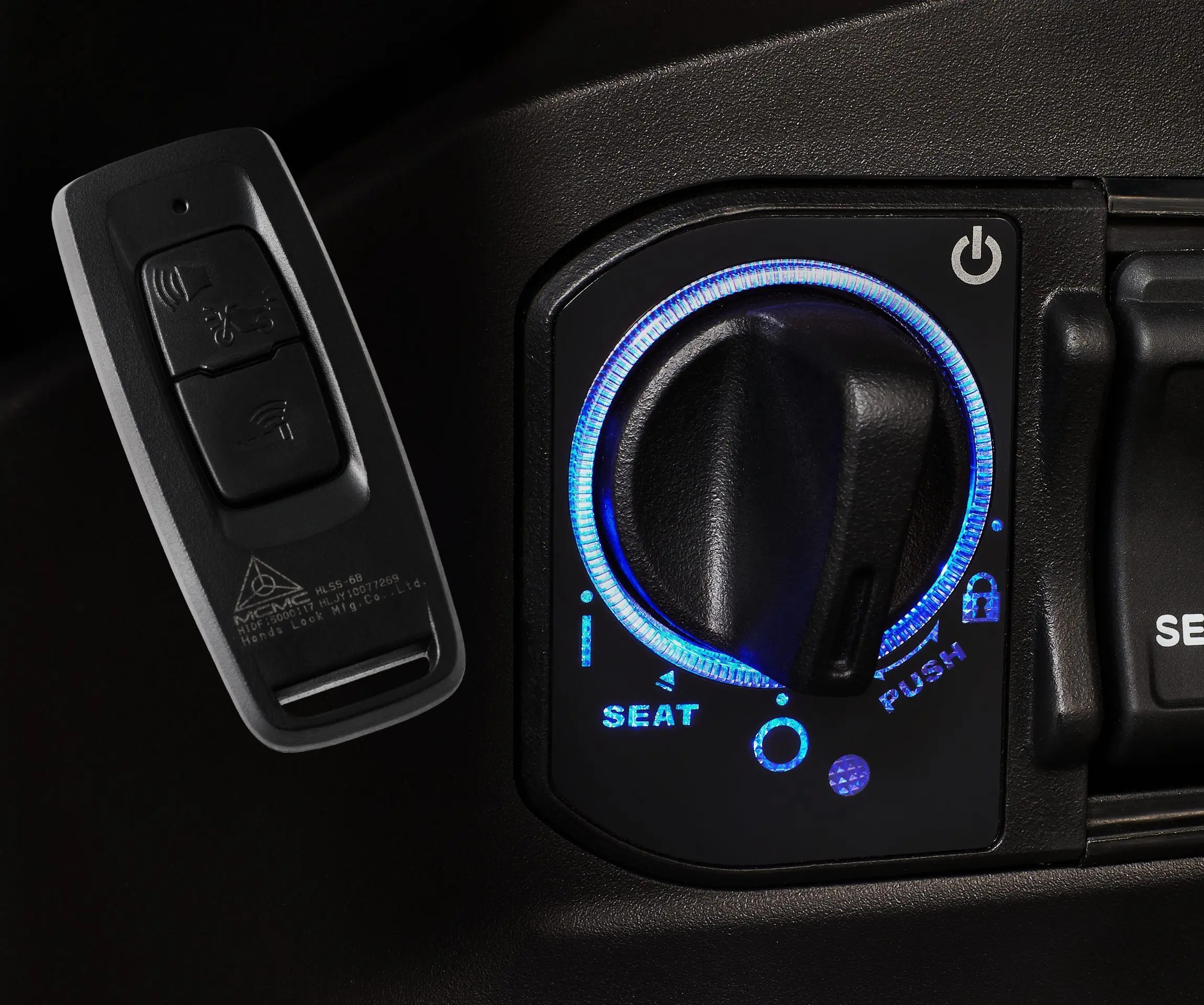

This advanced technology enables riders to start the engine and lock the handlebar using a smart electronic system. This feature also includes Anti-theft Alarm and Answer Back System for increased security.

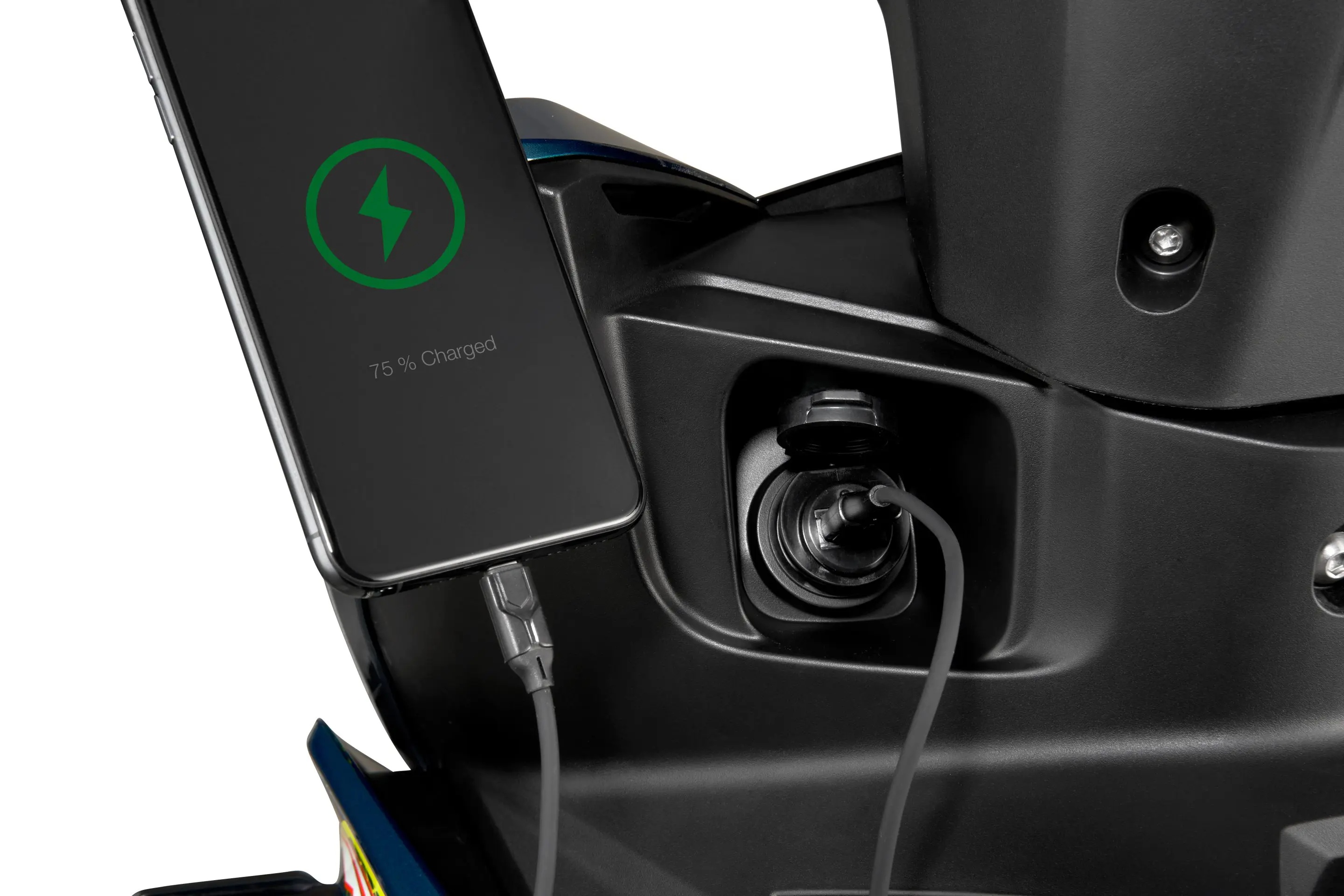

Equipped with a USB charging port with a waterproof cover located at the front of the vehicle, allowing riders to charge their phones when needed.

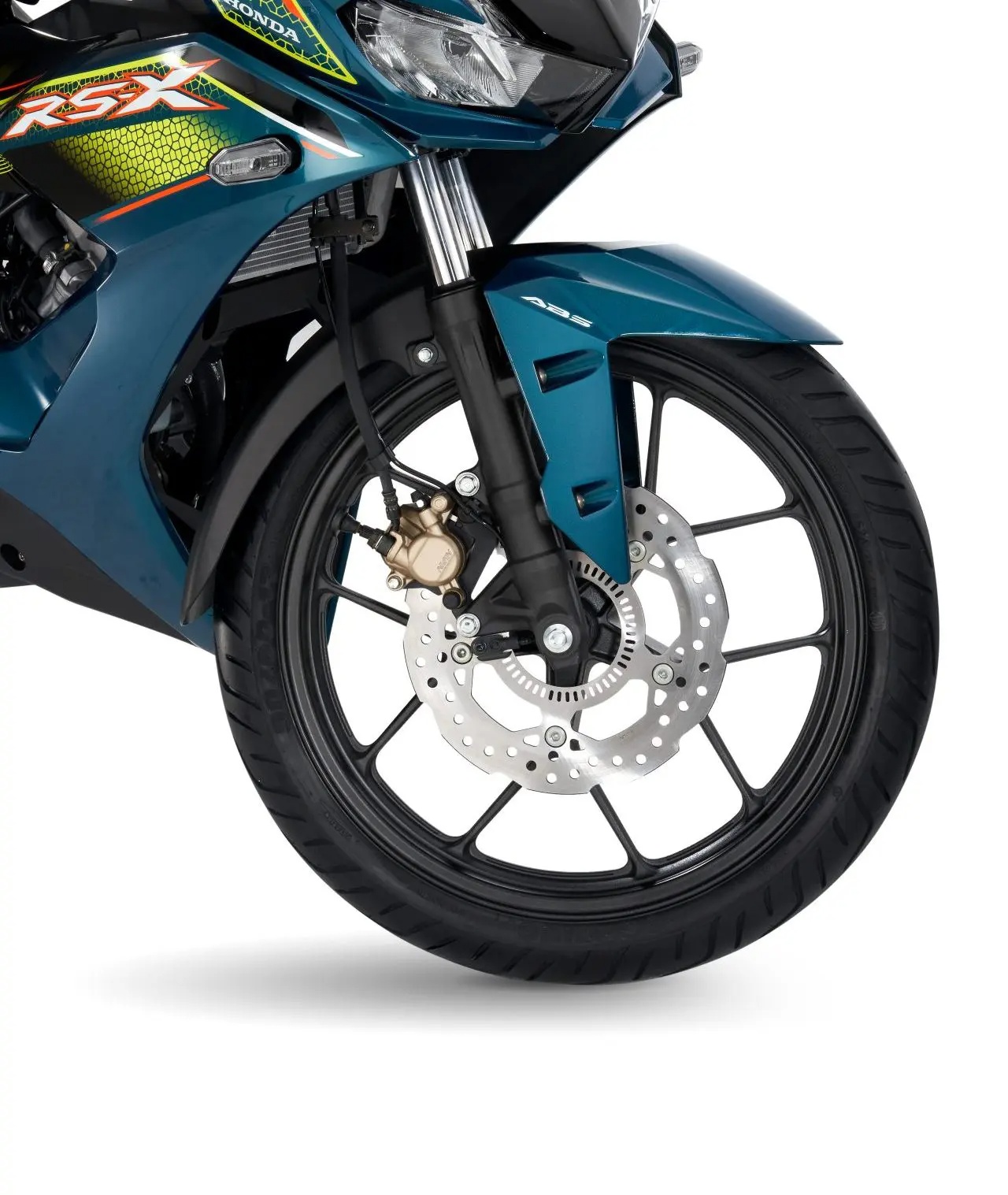

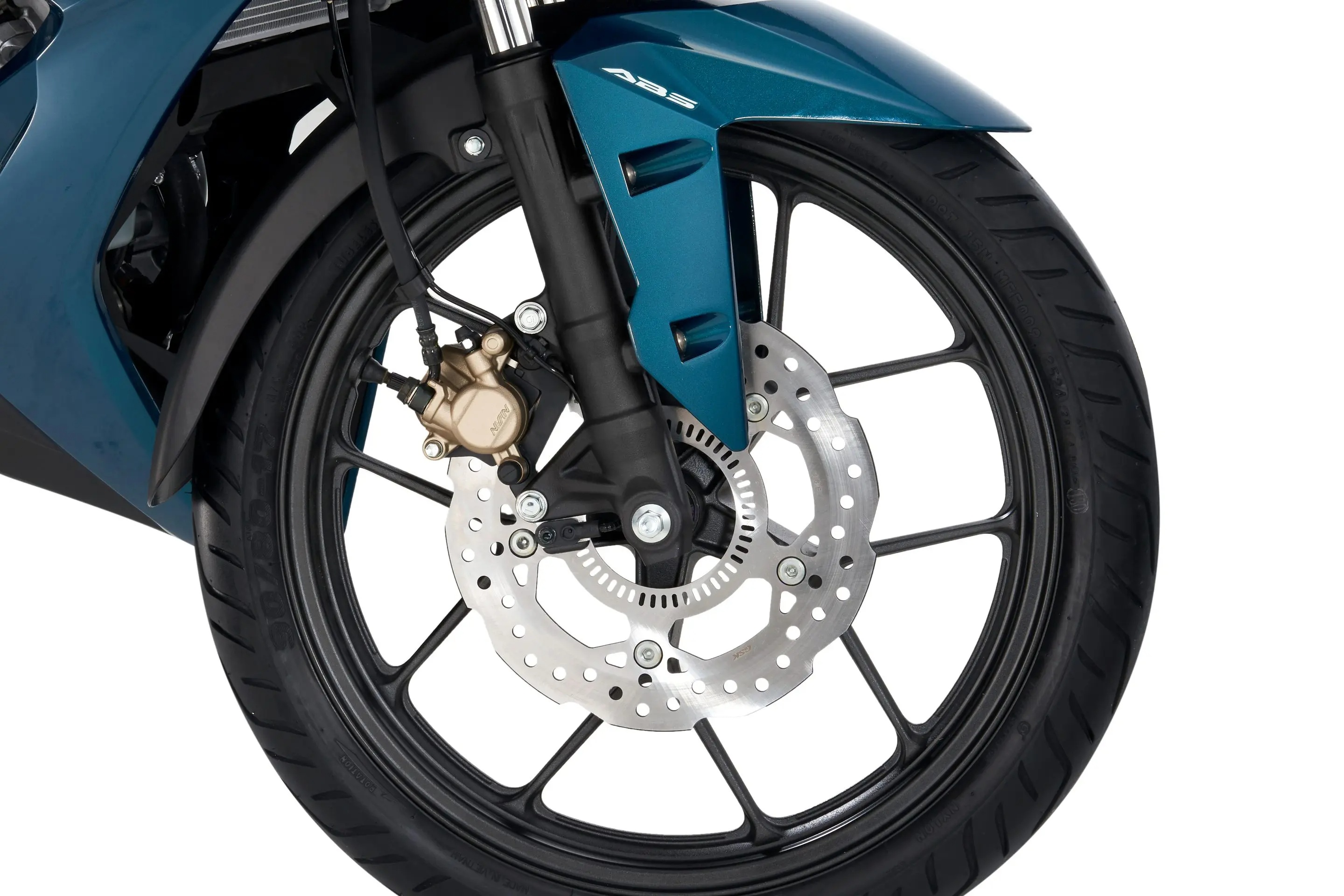

A top-notch braking system, with ABS on the front wheel, helps prevent wheel lock for increased confidence and stability, especially at high speeds or on slippery surfaces.

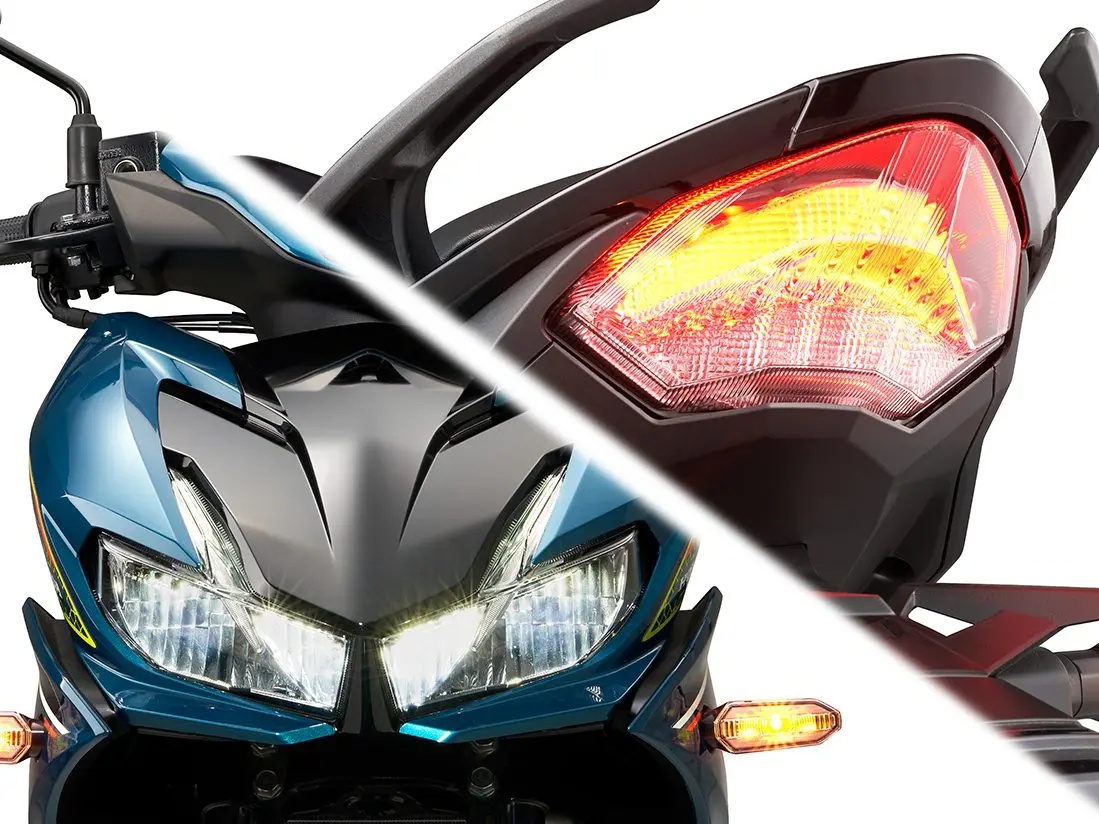

Modern LED technology provides brighter illumination and a longer lifespan for the headlights, taillights, position lights, and turn signal lights.

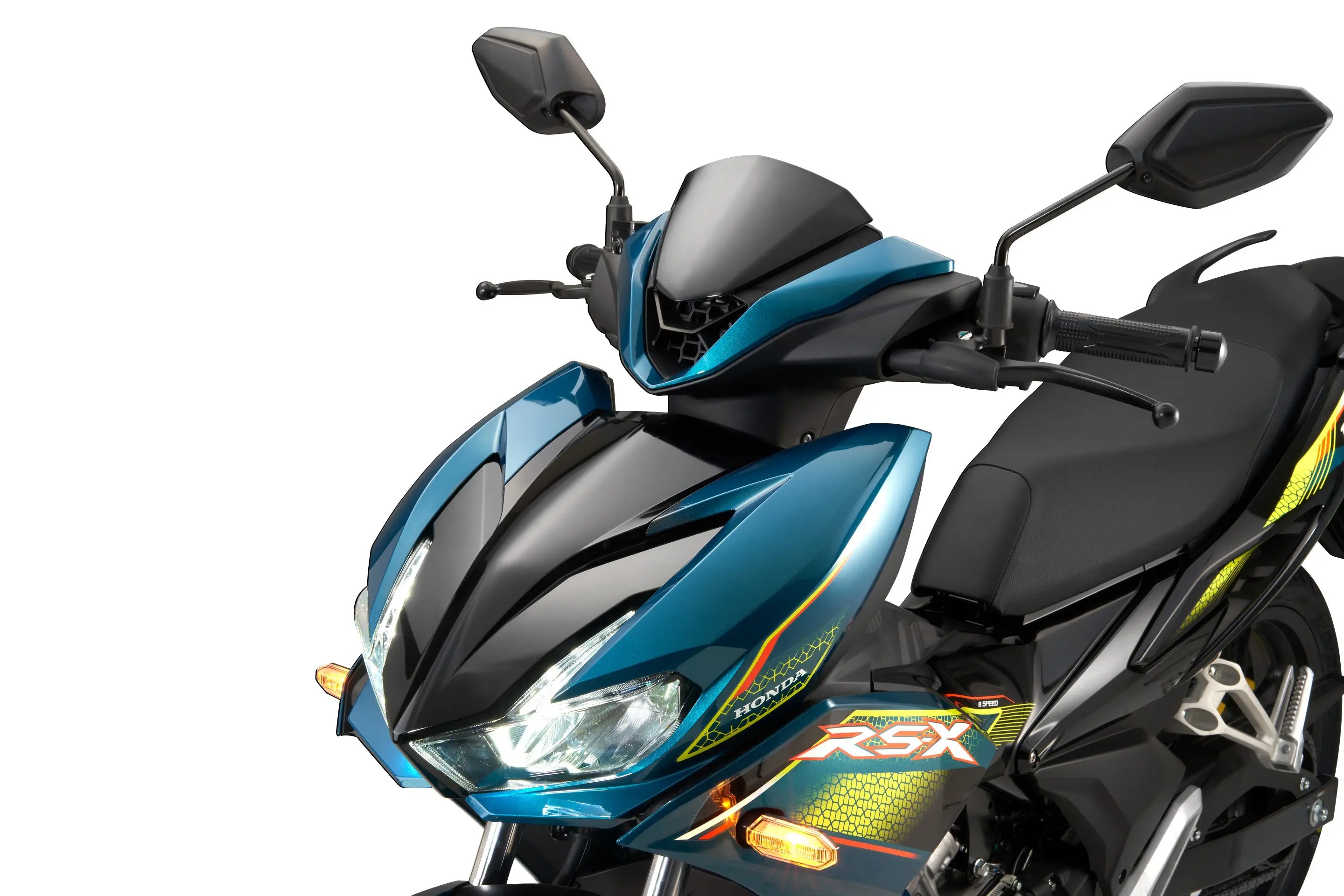

Features a masculine design style, standing out with strong, continuous lines from front to back. The sharp lines contribute to an agile and aerodynamic image.

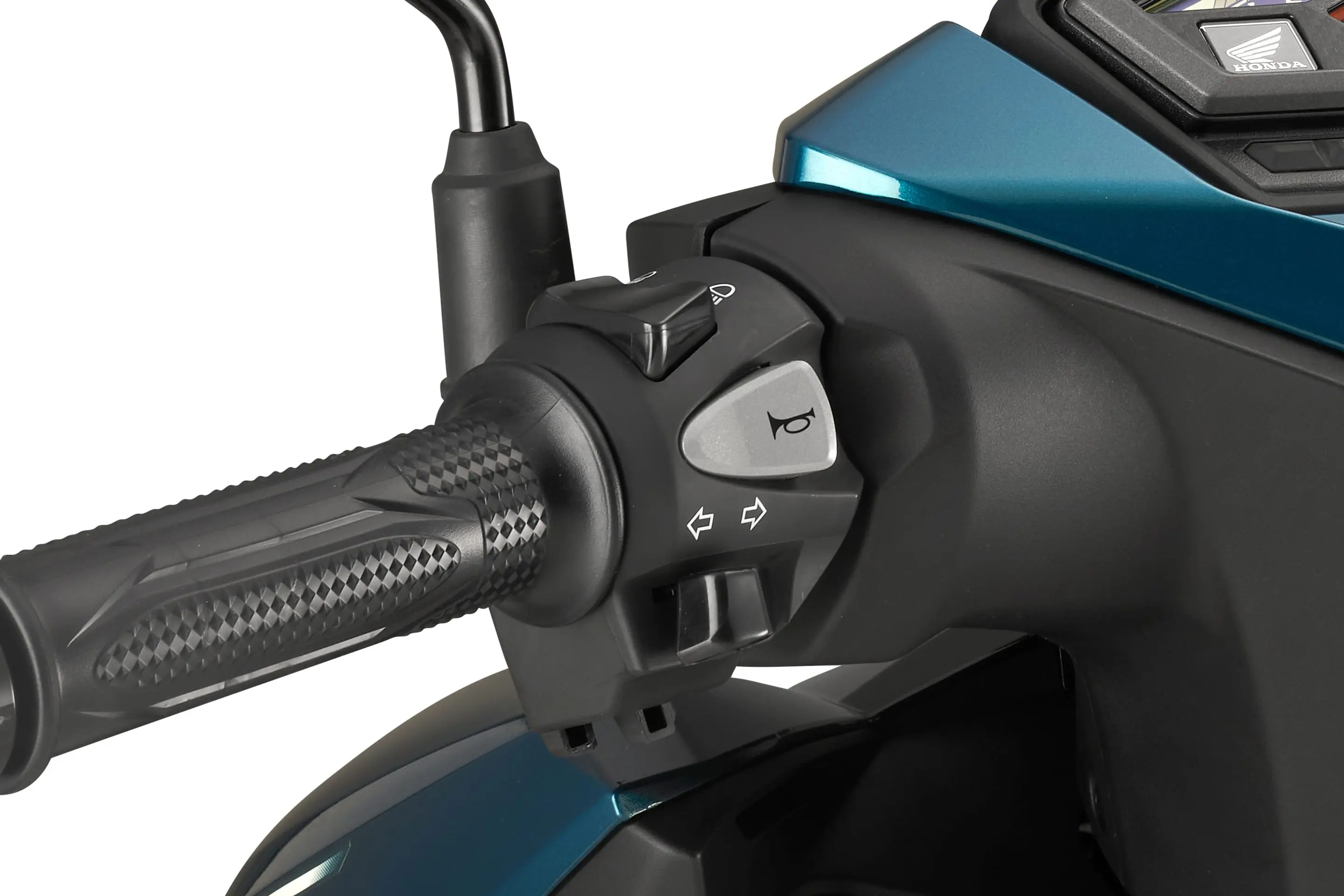

The separate handle switch provides precise control over various functions, including headlight, turn signals, and horn, allowing riders to focus on the road ahead.
Newly designed wheel creates a sportier & more dynamic look, aiming for a sporty image

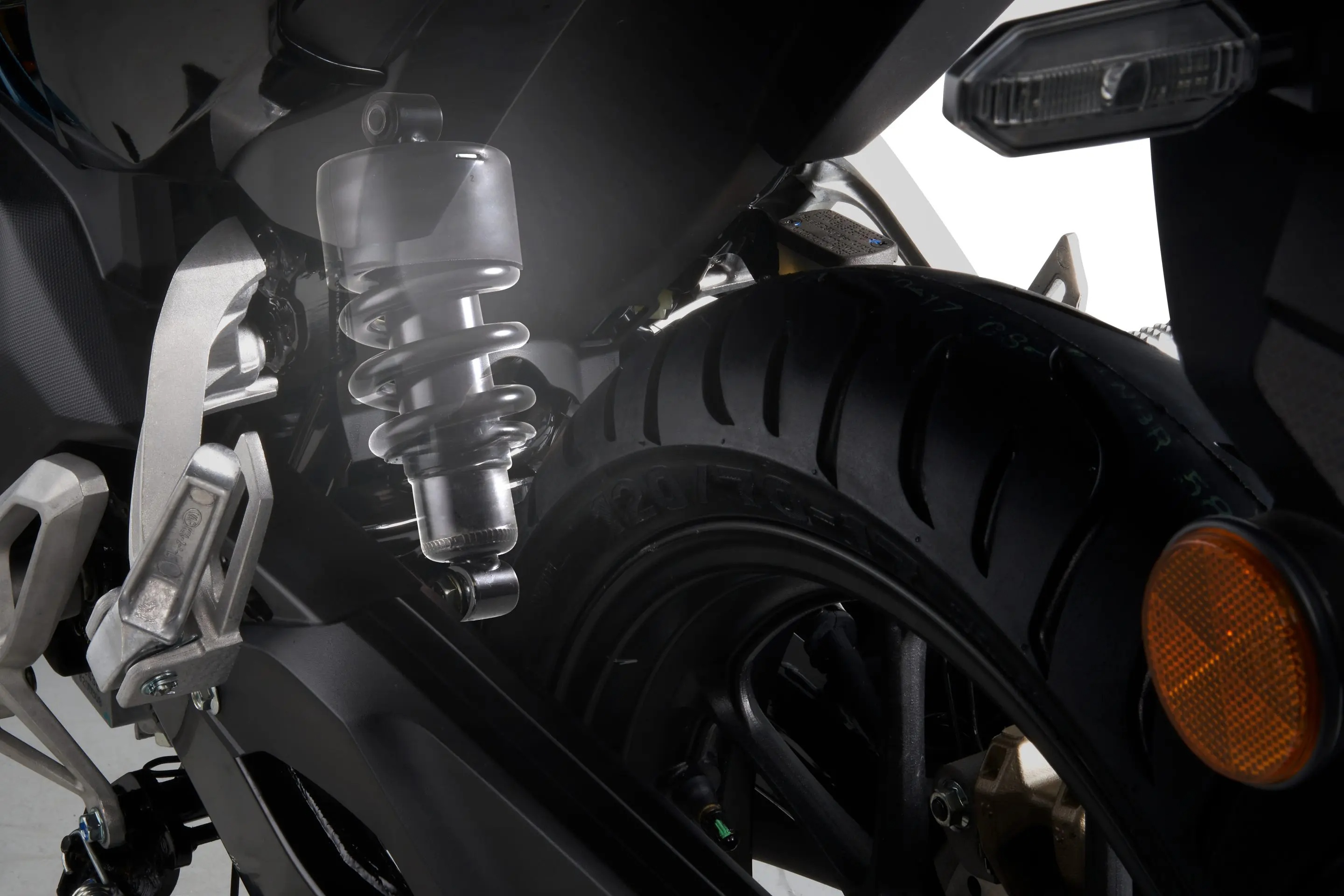

Features the monoshock suspension system that delivers a smooth and comfortable ride, even on rough roads.

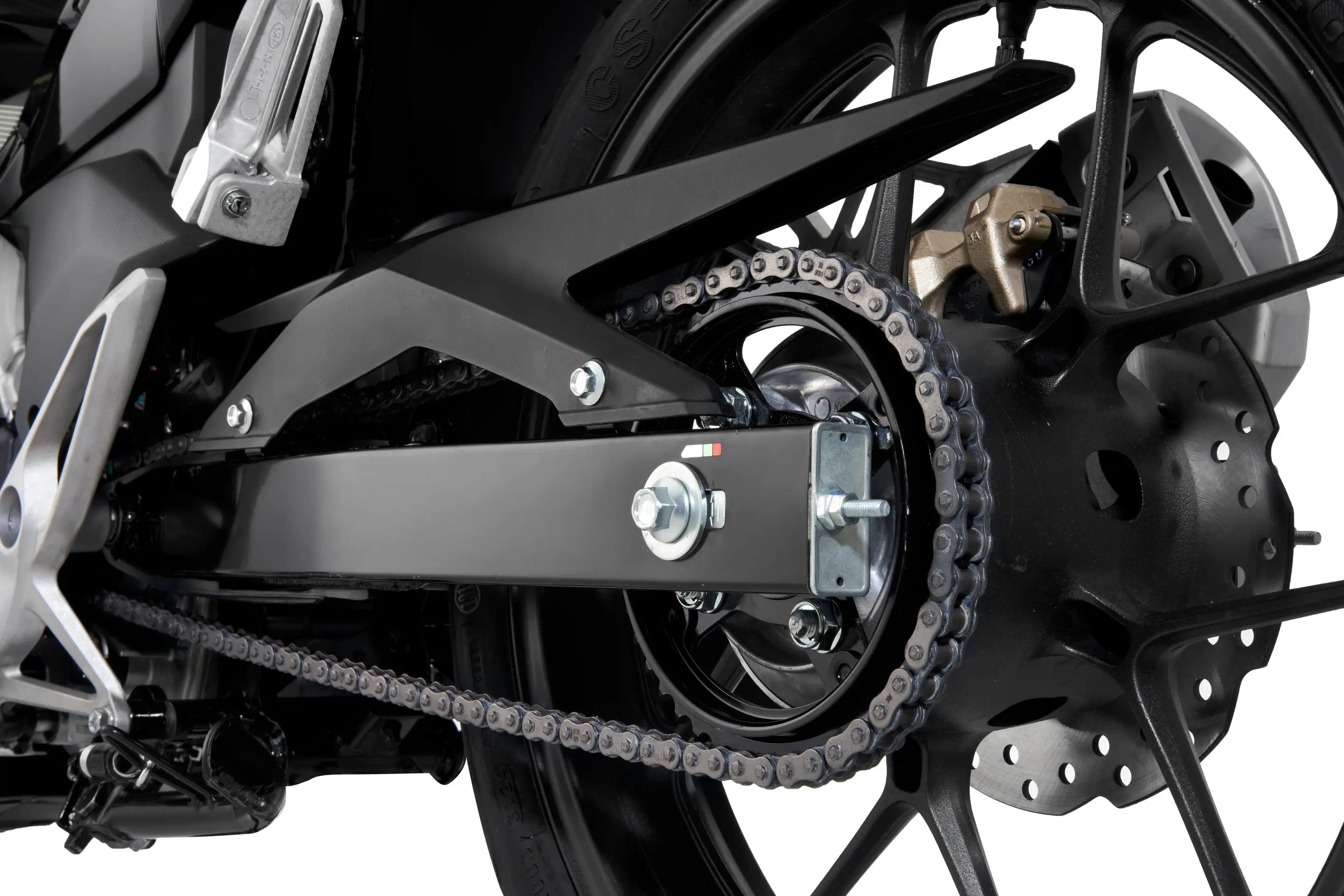

Chain system that maintains an O-ring-sealed chain, helping to prolong the life of the vehicle

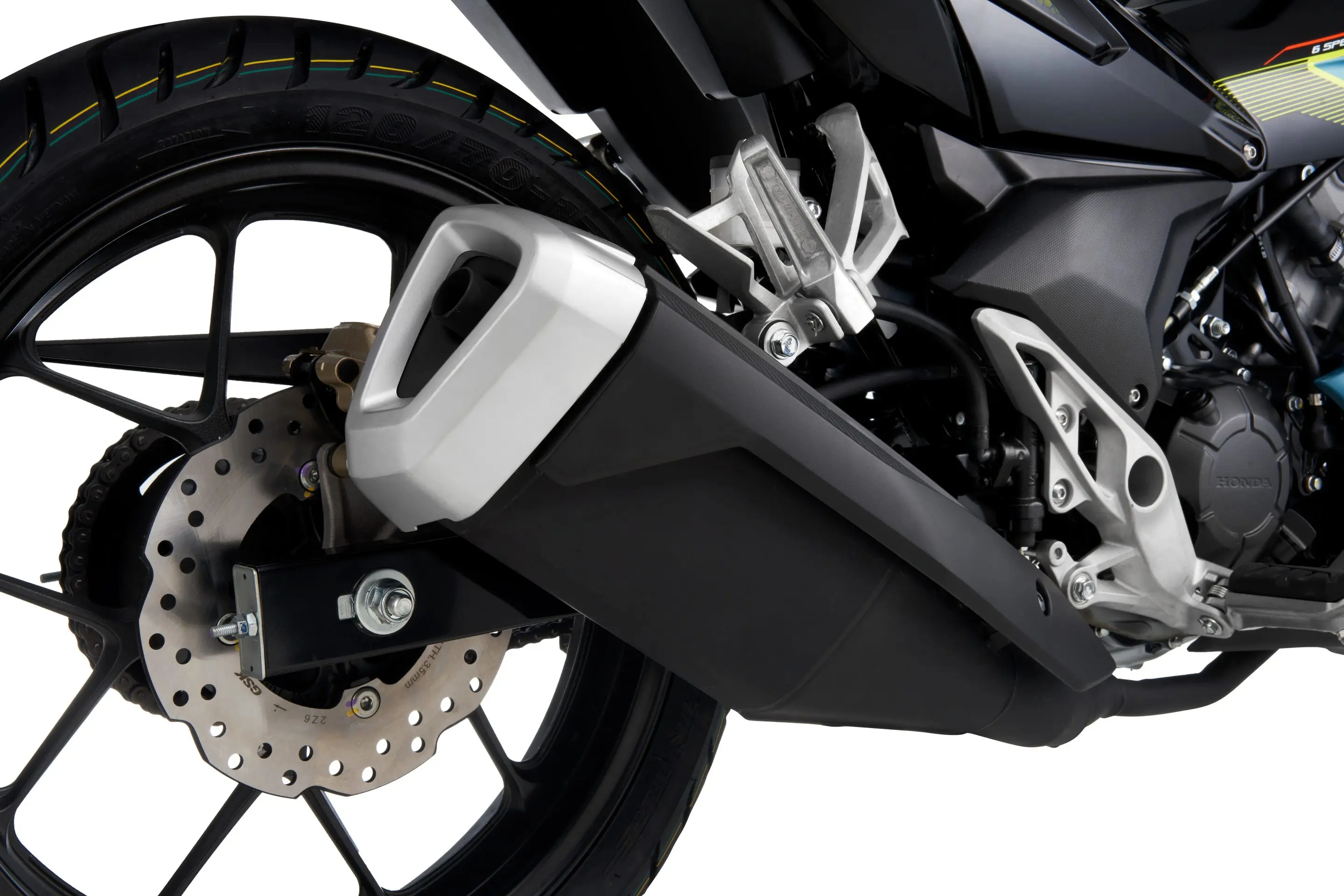

Muffler design the aggressive styling and sleek lines that add a touch of sportiness to the bike.
MyMAP uses four recognizable icons to refer to its four main pillars of assessment:
1. Compliance to UN regulations
2. Audit & Analysis on Conformity of Production
3. Assessment of safety features & new technology
4. Assessment of support programme provided to buyer
| Type | Single Cylinder, Liquid-cooled, DOHC 4-Stroke 4 Valve |
| Displacement | 149.2 cm³ |
| Bore x Stroke | 57.3 mm x 57.8 mm |
| Compression Ratio | 11.3 : 1 |
| Max. Power | 11.8 kW / 9,000 rpm |
| Max. Torque | 13.6 Nm / 7,000 rpm |
| Engine Oil Capacity | 1.1 ! (After draining), 1.3 ! (After disassembly) |
| Carburation | PGM-FI (Programmed Fuel Injection) |
| Fuel Tank Capacity | 4.5 ! |
| Starter | Electric Auto Start |
| Battery Capacity | 5.0 A.h (10 HR) |
| ACG Output | 12 V |
| Clutch Type | Manual Clutch Wet Multiplate Type with Assist & Slipper Clutch |
| Transmission Type | Constant Mesh, 6 Speeds |
| Frame Type | Twin Tube |
| Dimensions (L x W x H) | 2,019 mm x 730 mm x 1,109 mm |
| Wheelbase | 1,278 mm |
| Seat Height | 795 mm |
| Ground Clearance | 148 mm |
| Curb Weight | 123 kg |
| Suspension Type (FR) | Telescopic |
| Suspension Type (RR) | Swing Arm with Monoshock |
| Tyres (FR) | 90/80 – 17M/C (46P) (Tubeless) |
| Tyres (RR) | 120/70 – 17M/C (58P) (Tubeless) |
| Brakes Type (FR) | Hydraulic Single Disc, ABS |
| Brakes Type (RR) | Hydraulic Single Disc |
