Refined 125cc engine. High fuel efficiency. Spirited performance. Dash through the city in style and confidence with the Dash125.
Type
Cub
Displacement
124.9 cm³
Max Power
7.4 kW / 8,000 rpm

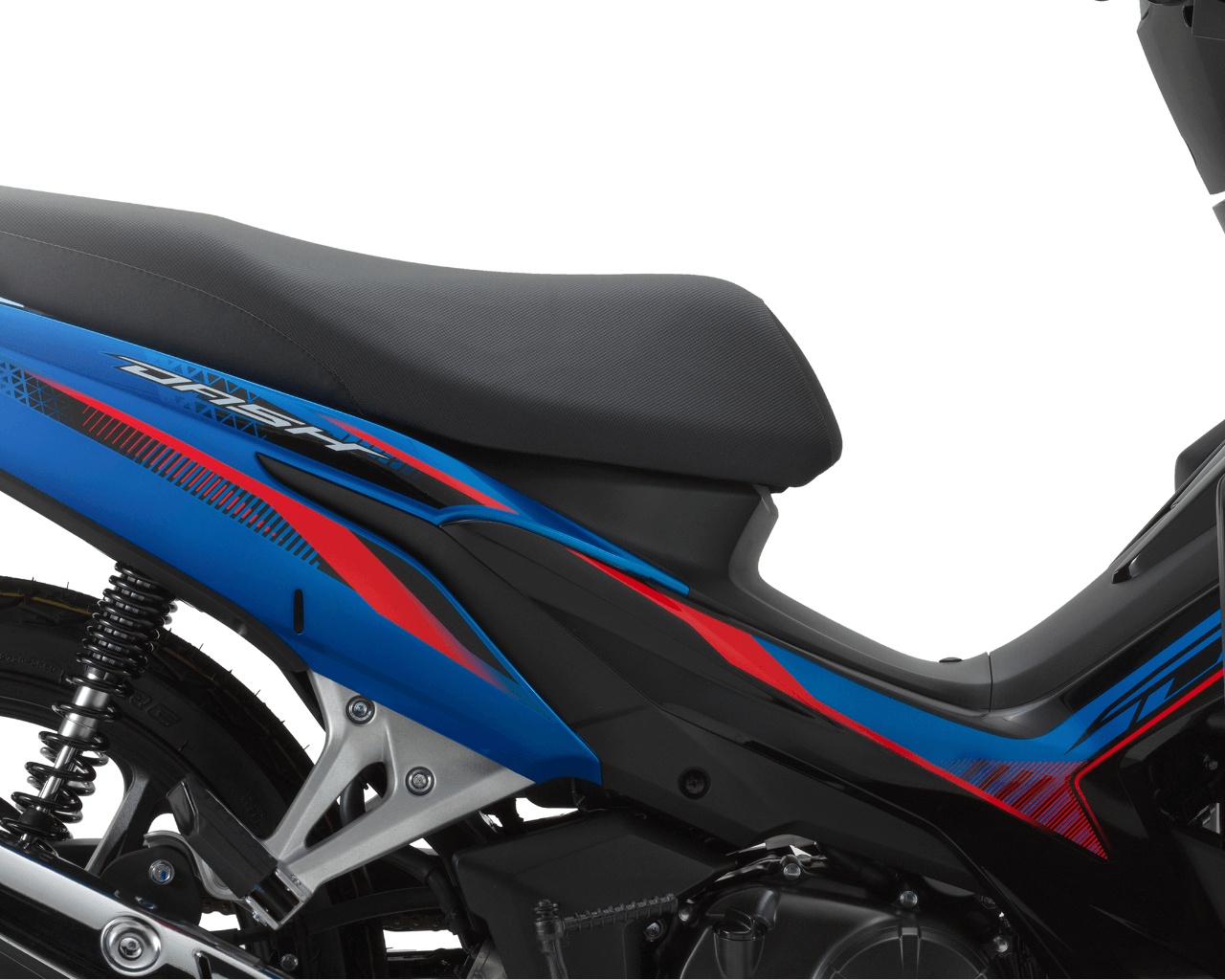

The new design “Accent Line” looks sporty, stylish and exciting.

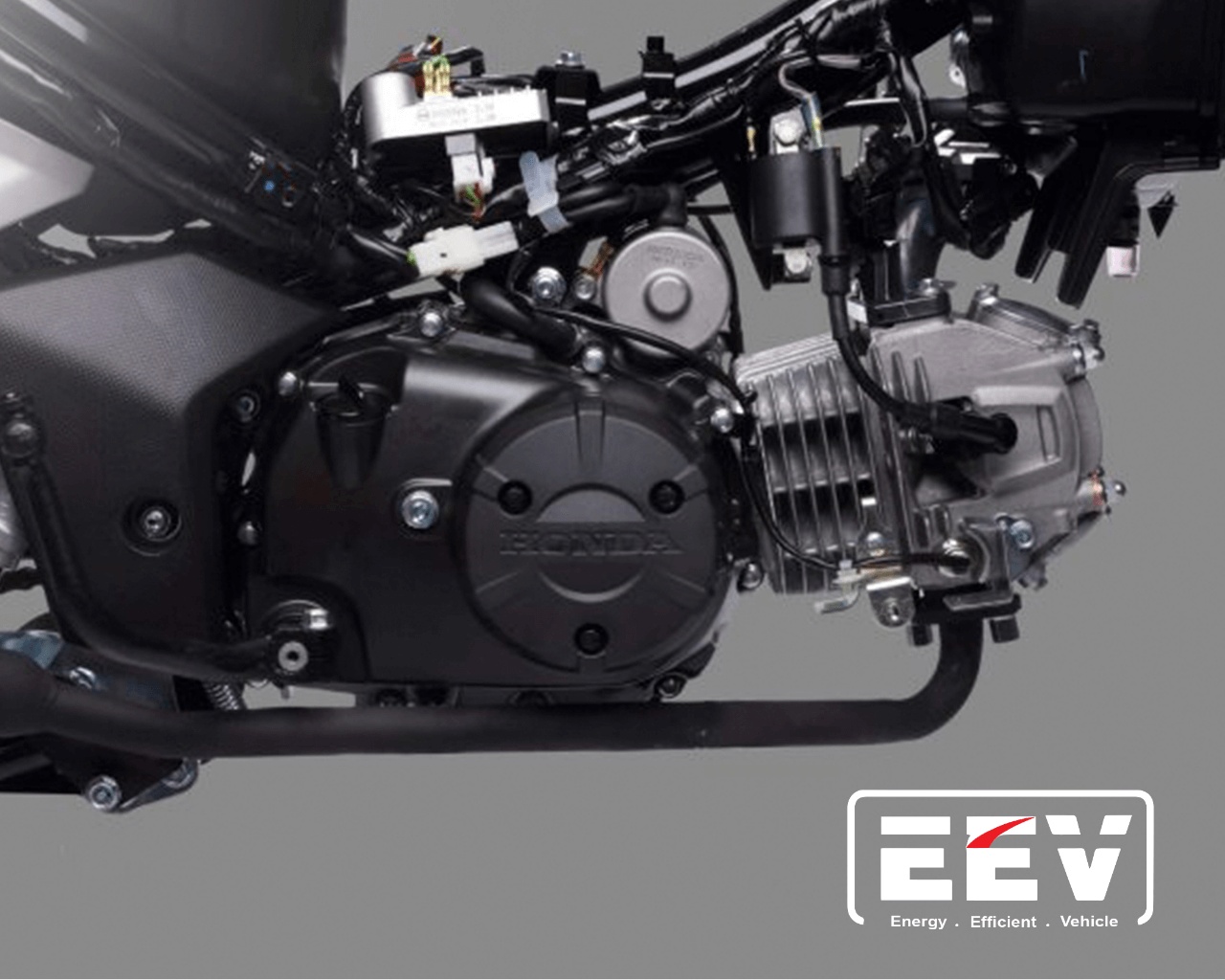

Featuring refined 125cc EURO4 compliant engine, certified as Energy Efficient Vehicle (EEV) that is fuel efficient suitable for daily rides.

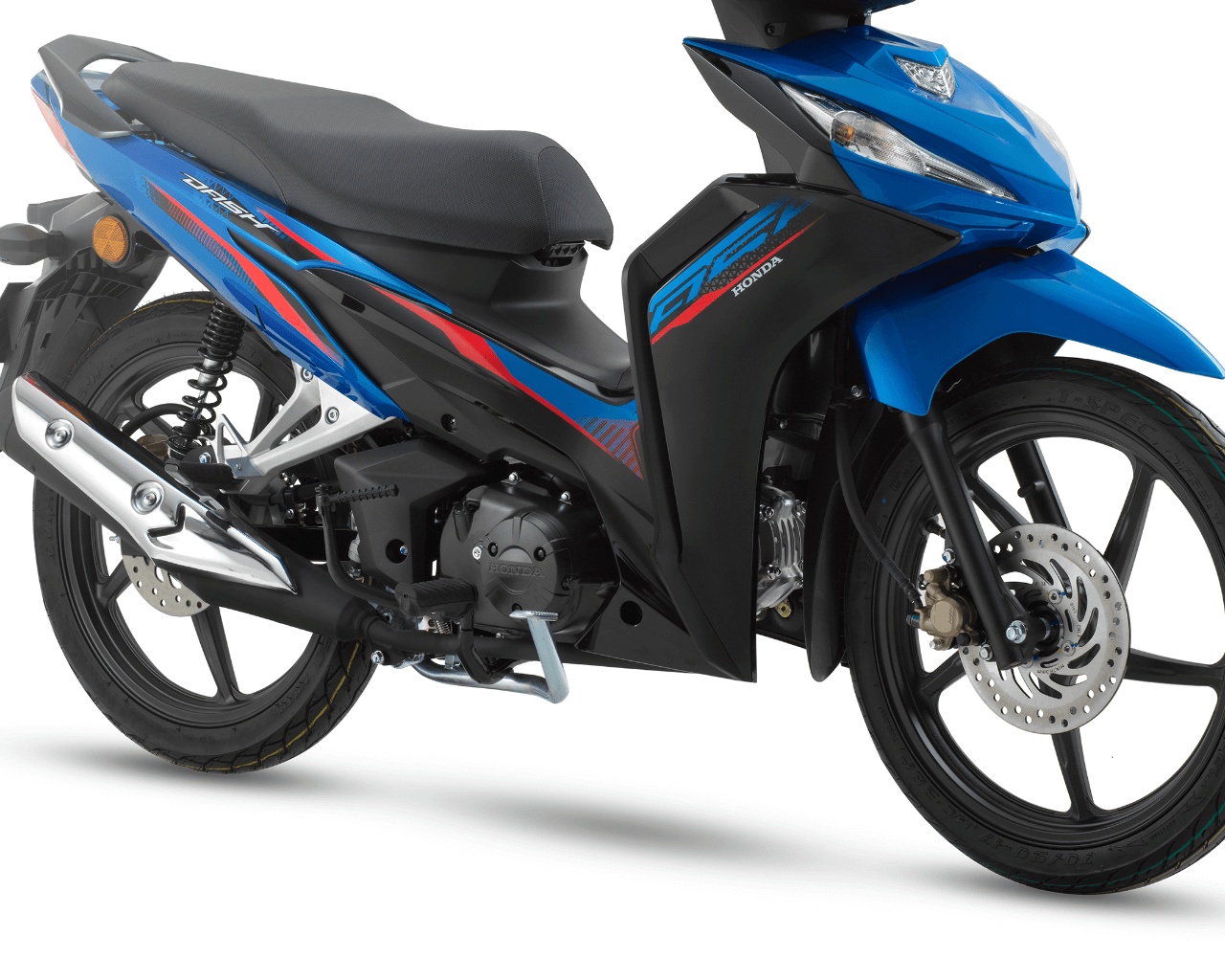

Front and rear disc brake for more comfortable and stable braking.

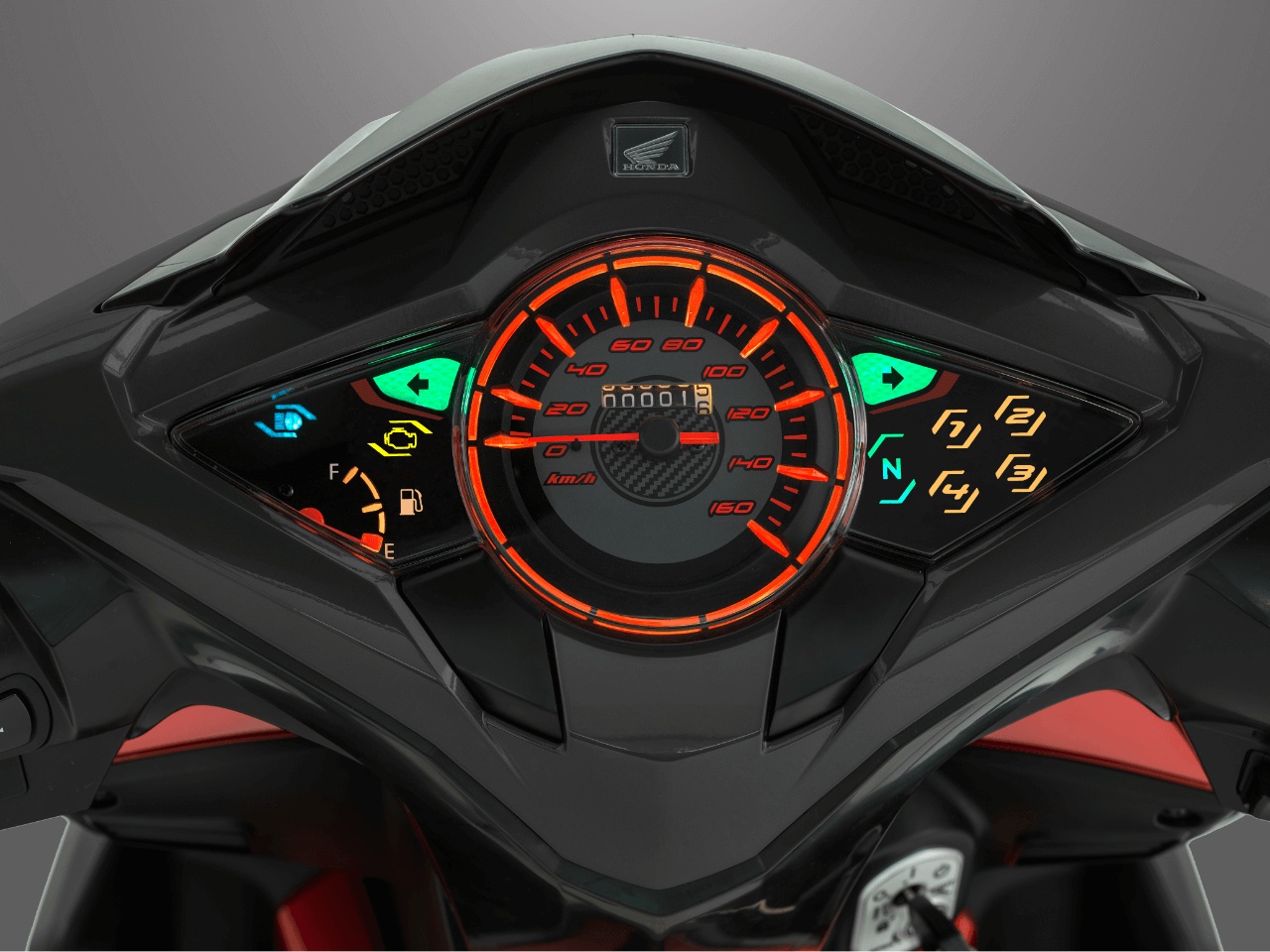

Speedometer with modern analog combination for accurate reading display.

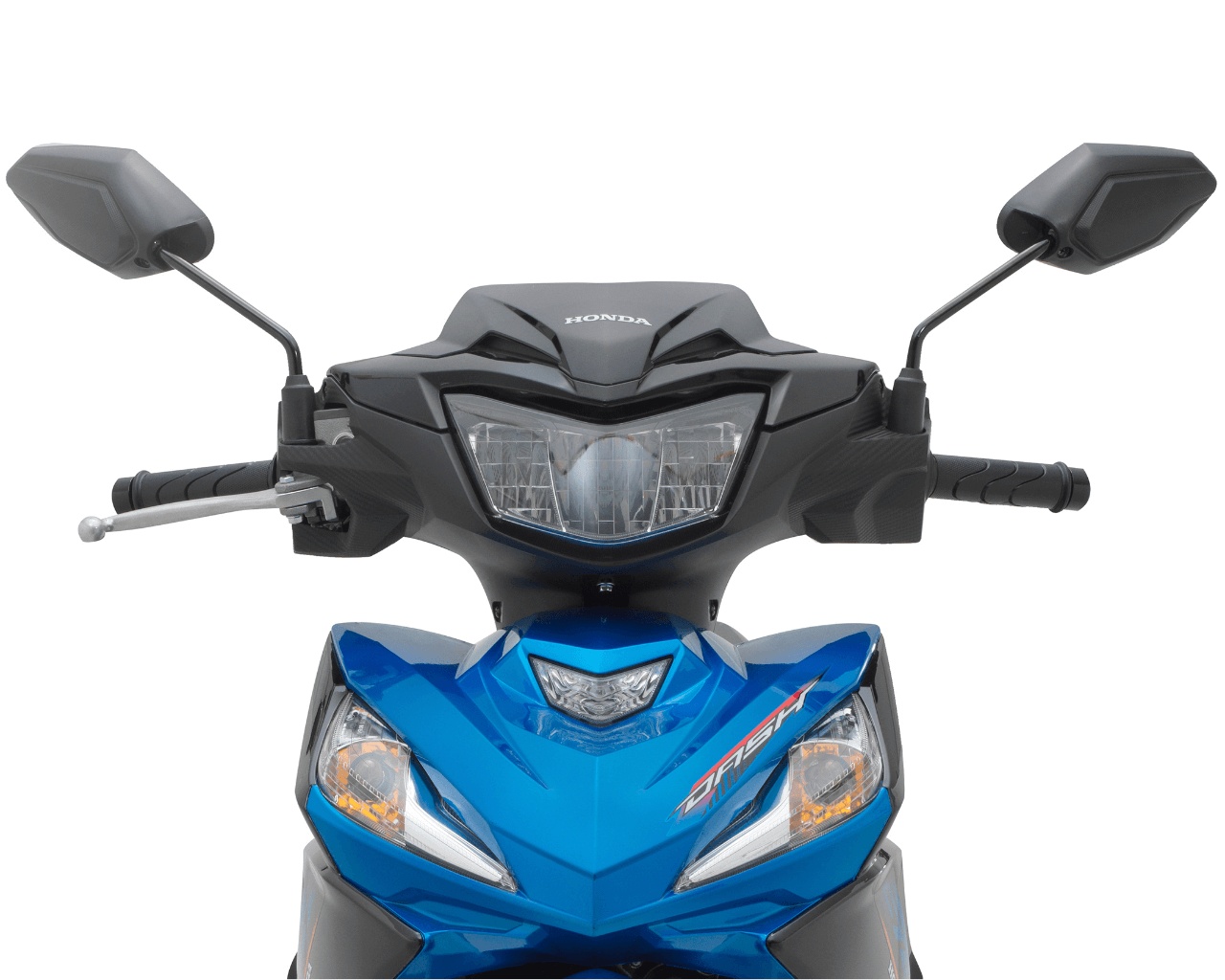

LED light not only look stylish but ensure safety.
| Type | Single Cylinder, Air Cooled, SOHC 4-Stroke 2 Valve |
| Displacement | 124.9 cm³ |
| Bore x Stroke | 52.4 mm x 57.9 mm |
| Compression Ratio | 9.3 : 1 |
| Max. Power | 7.4 kW / 8,000 rpm |
| Max. Torque | 9.5 Nm / 6,500 rpm |
| Engine Oil Capacity | 0.7 ! (After draining), 0.9 ! (After disassembly) |
| Carburation | PGM-FI (Programmed Fuel Injection) |
| Fuel Tank Capacity | 4.0 ! |
| Starter | Kick Starter with Electric Auto Start |
| Battery Capacity | 3.0 A.h (10HR) |
| ACG Output | 12 V |
| Clutch Type | Automatic Centrifugal Clutch |
| Transmission Type | Constant mesh, 4 speeds |
| Frame Type | Back Bone |
| Dimensions (L x W x H) | 1,894 mm X 707 mm X 1,108 mm |
| Wheelbase | 1,237 mm |
| Seat Height | 767 mm |
| Ground Clearance | 142 mm |
| Curb Weight | 105 kg |
| Suspension Type (FR) | Telescopic |
| Suspension Type (RR) | Swing Arm with Double Suspension |
| Tyres (FR) | 70/90 – 17M/C (38P) (Tubeless) |
| Tyres (RR) | 80/90 – 17M/C (50P) (Tubeless) |
| Brakes Type (FR) | Hydraulic Single Disc |
| Brakes Type (RR) | Hydraulic Single Disc |
