An excellent choice for daily commute and short weekend getaways. It features a muscular and rugged look with advanced features that makes adventures with ADV160 fun and exciting.
Type
Scooter
Displacement
156.9 cm³
Max Power
11.8kW / 8,500rpm

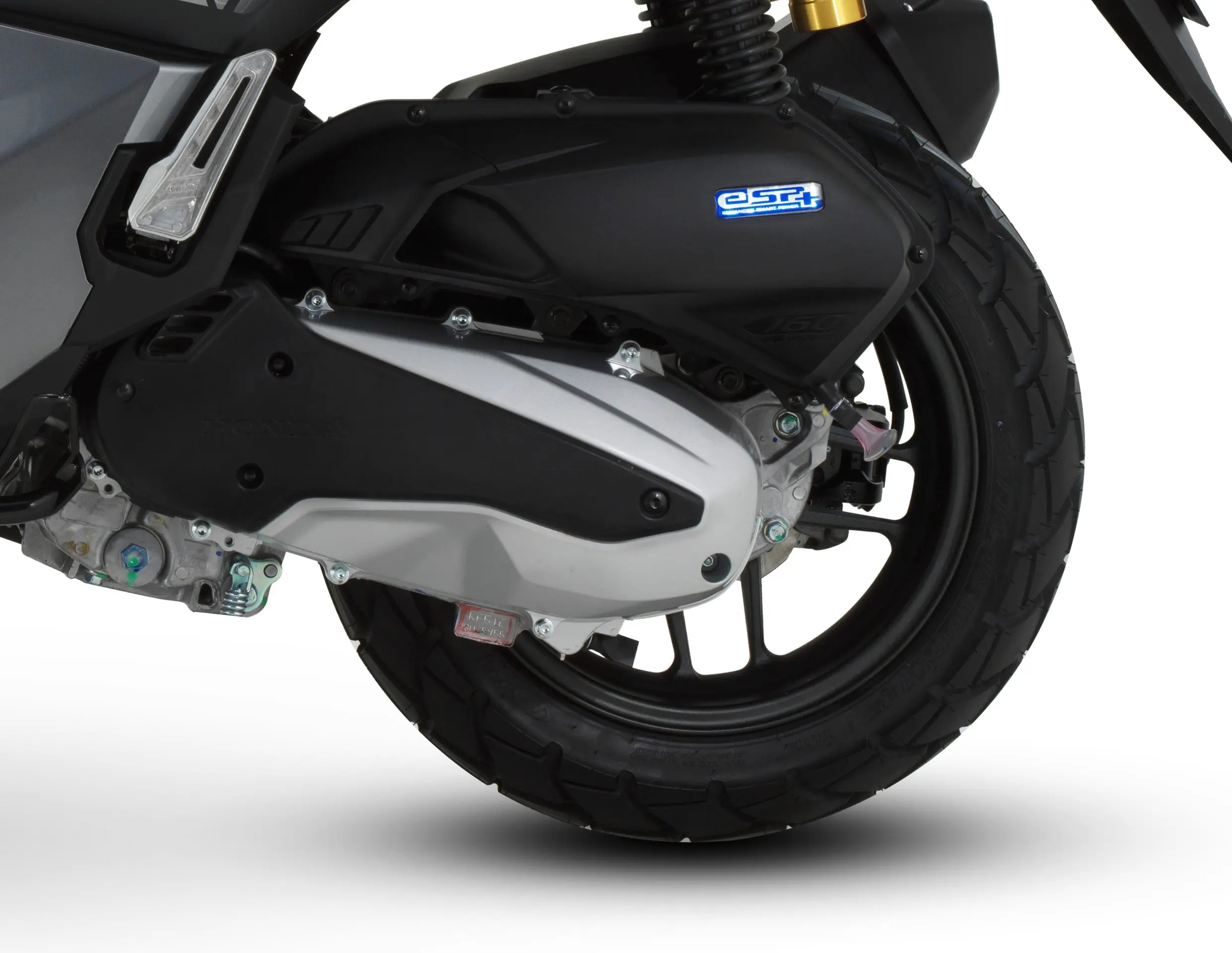

157cc engine with eSP+ carry over eSP qualities of efficiencies and smooth operation by minimizing internal friction through refined combustion chamber design and precisely controls the amount of fuel injected (PGM-FI) with significant boost in performance through 4 valves resulted in improved fuel efficiency, smoother performance, and reduced emissions.

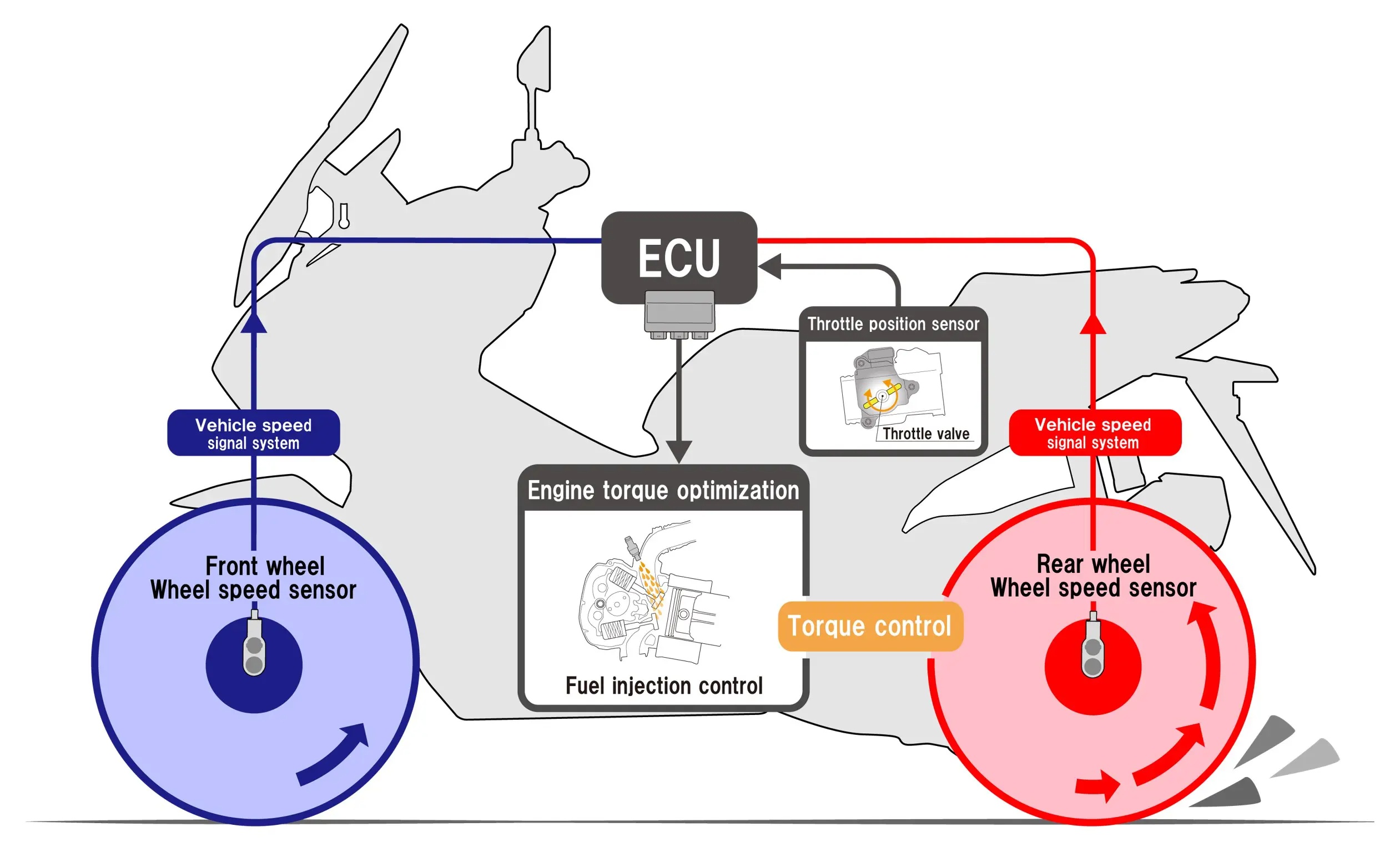

Senses an imminent loss of rear wheel traction and electronically reduces engine power to ensure proper traction and stabilize the vehicle.

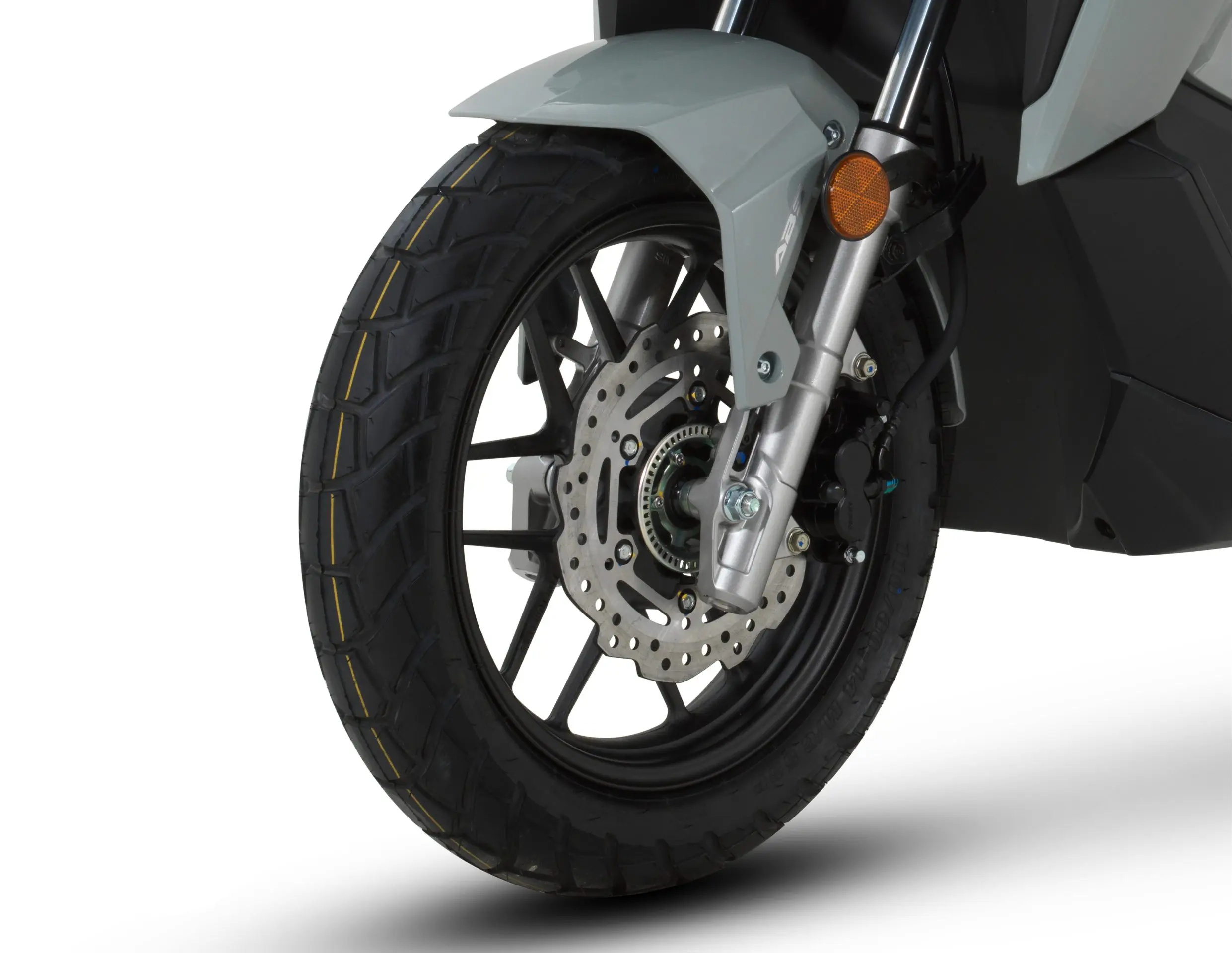

Disc brakes at the front and rear with a single ABS set up to increase control and confidence when braking with MyMAP Certificate.

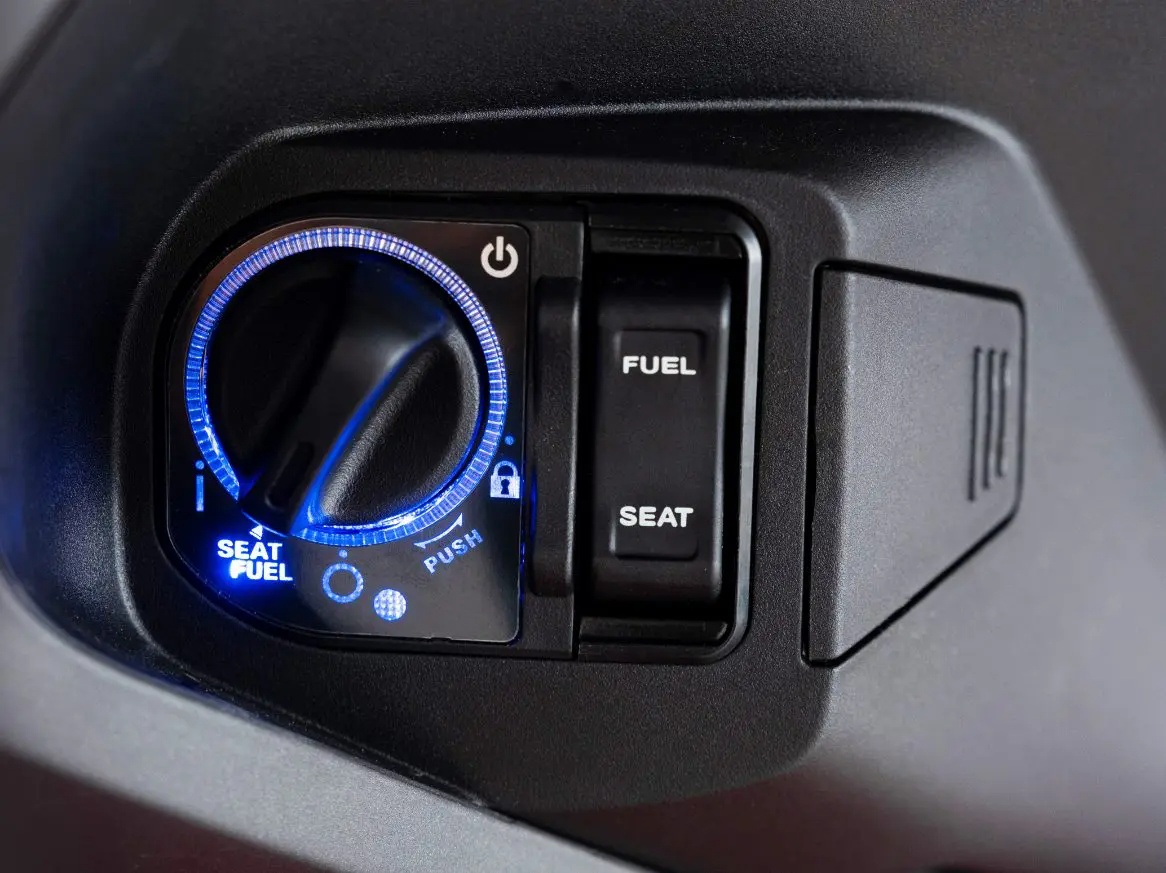

This advanced technology enables riders to start the engine and lock the handlebar using a smart electronic system. This feature also includes Anti-theft Alarm and Answer Back System for increased security.

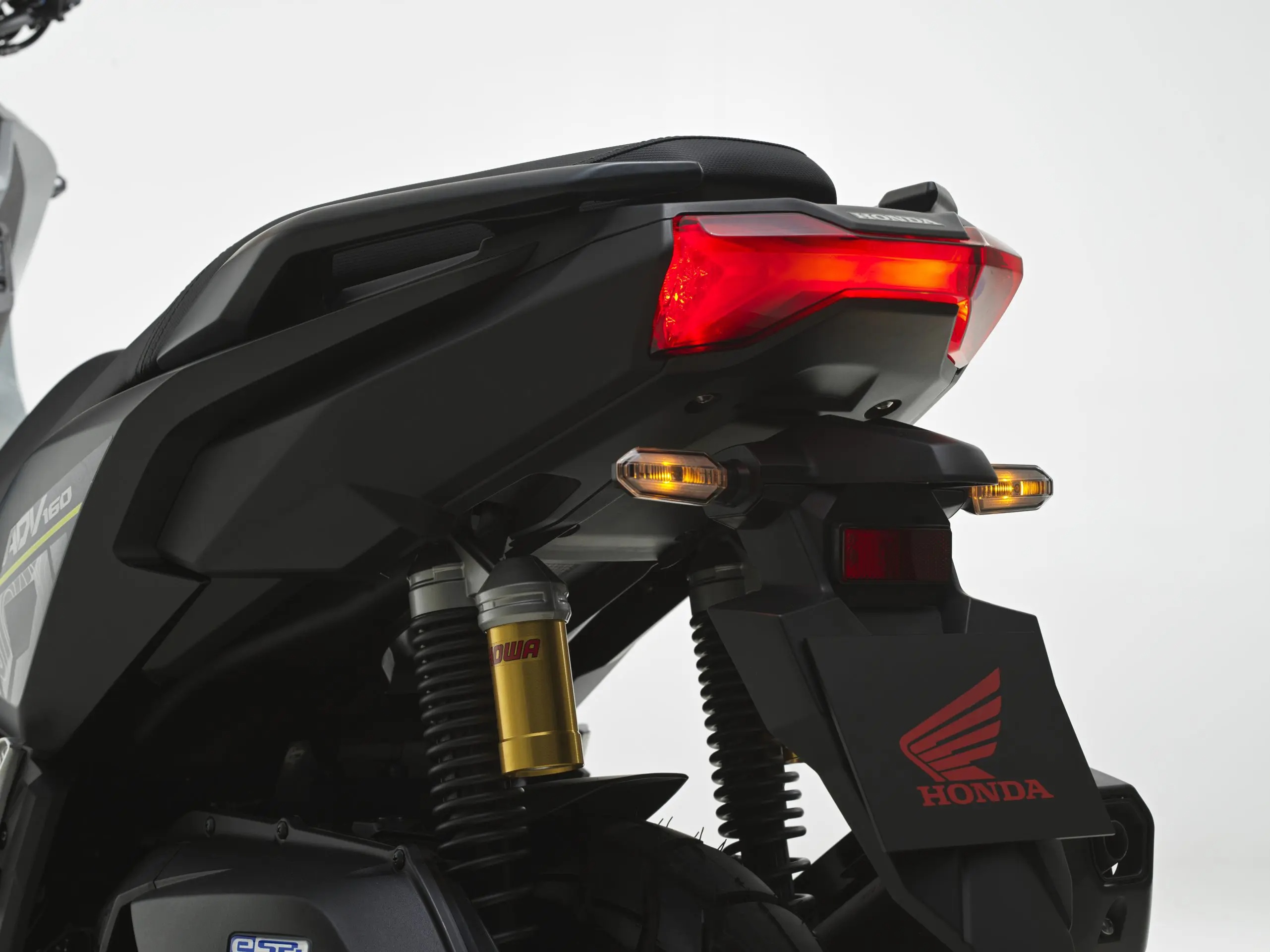

Hazard light flashed to notify others on hard stop of emergency .

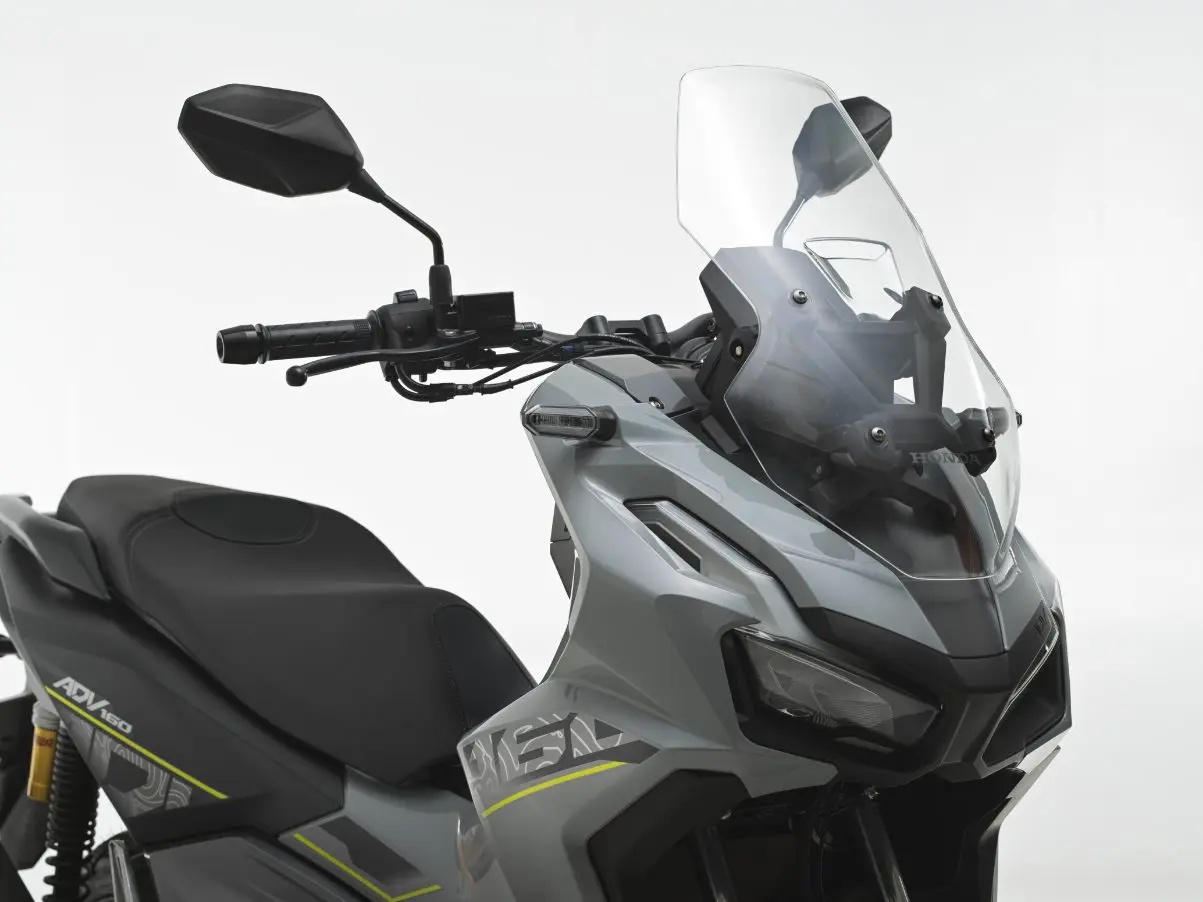

Higher and two-level adjustable windshield for comfort riding .

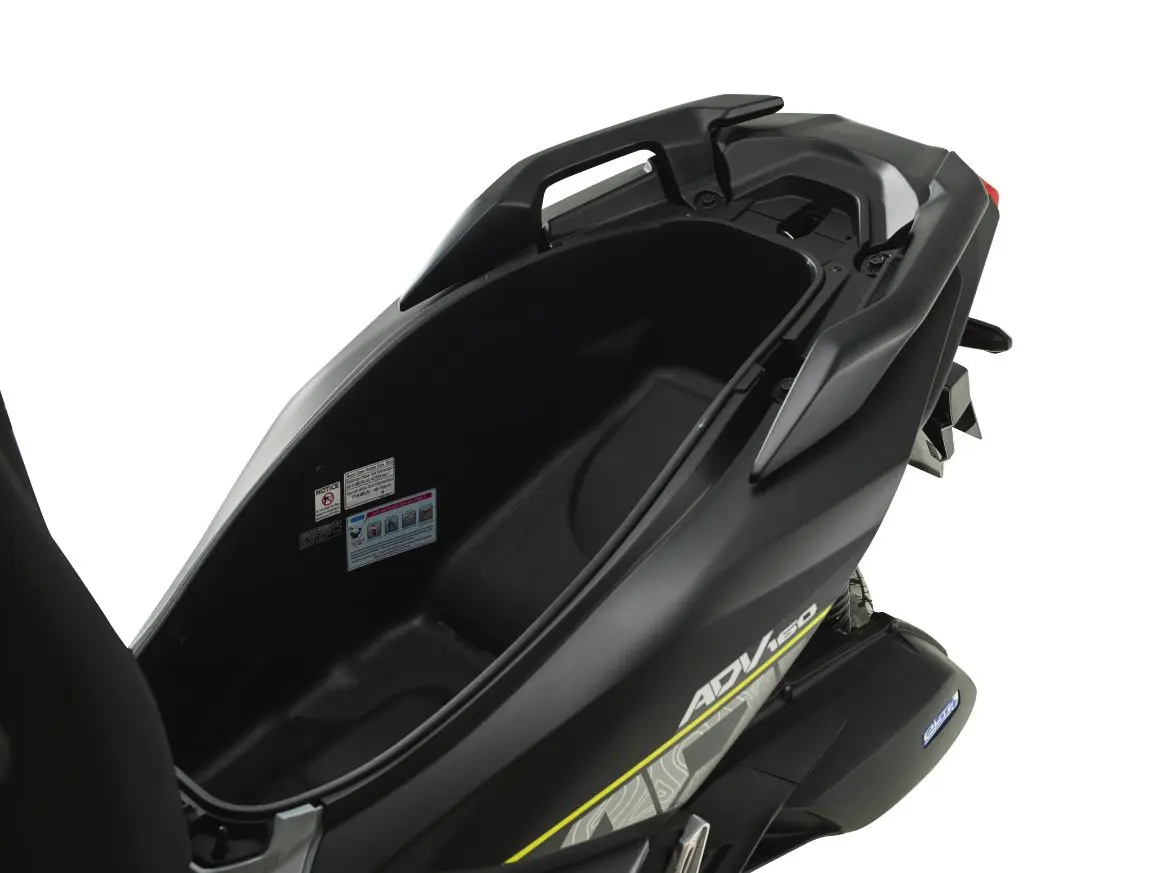

Large and versatile storage space for daily use and weekends getaway. Capable to fit open-face helmet with extra room for gloves and raining coat for user convenient. Store backpack and groceries for secure rides.

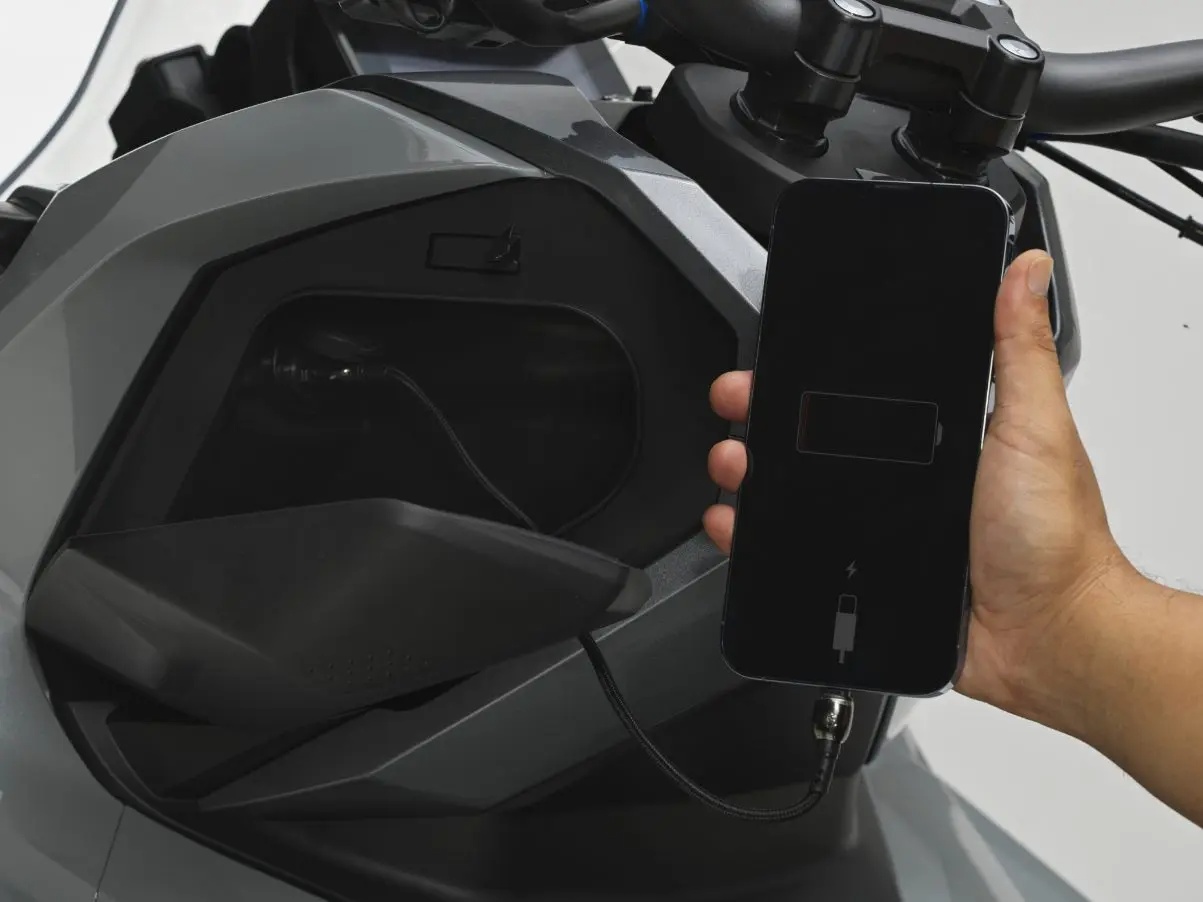

USB charger in the console box to make it more convenience to charge gadgets while riding.

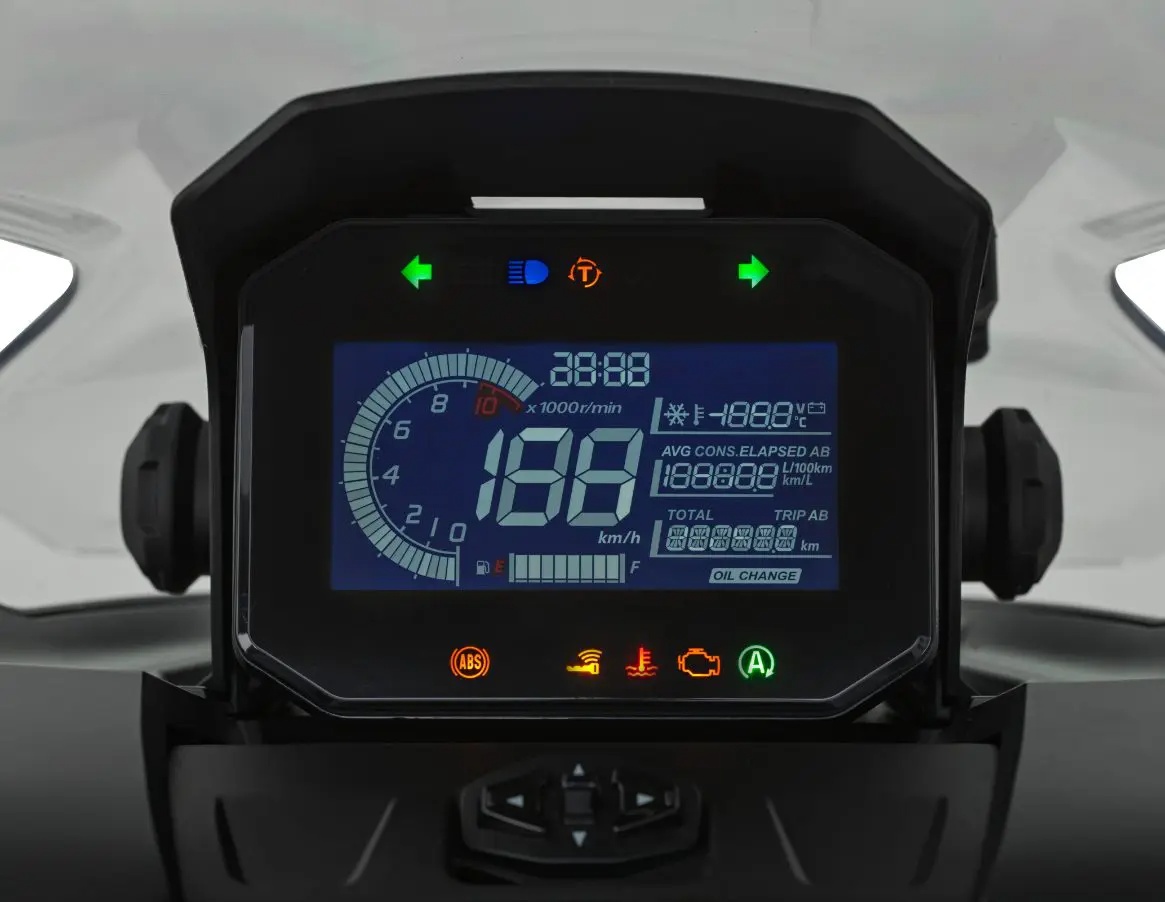

Designed to provide useful info with modern vibes that give the rider clear visibility while on the move. Speedometer for safe speed monitoring, fuel gauge and odometer for fuel tracking, clock to stay on schedule, and various warning icon for user and bike safety.

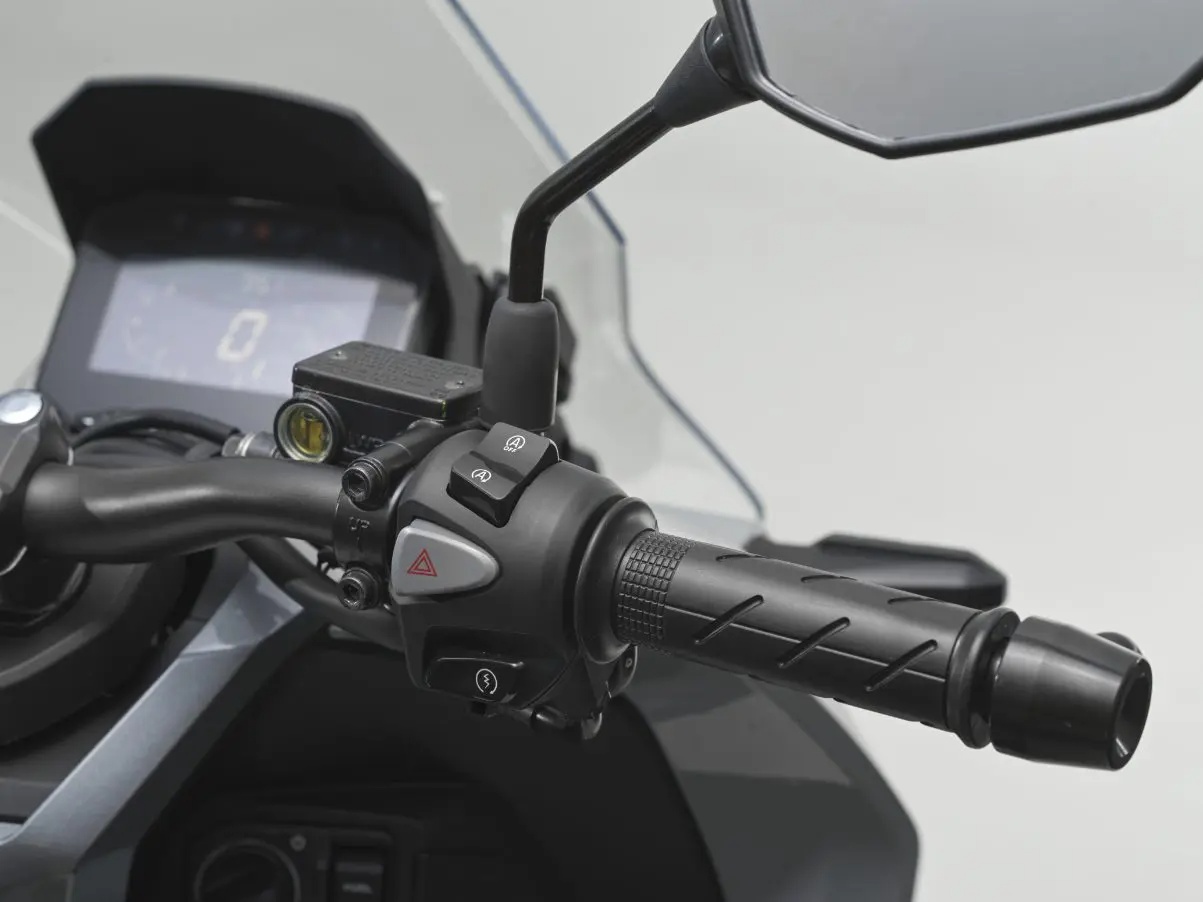

Automatically switches the engine off at traffic lights and other brief stops, eliminating wasteful fuel consumption.

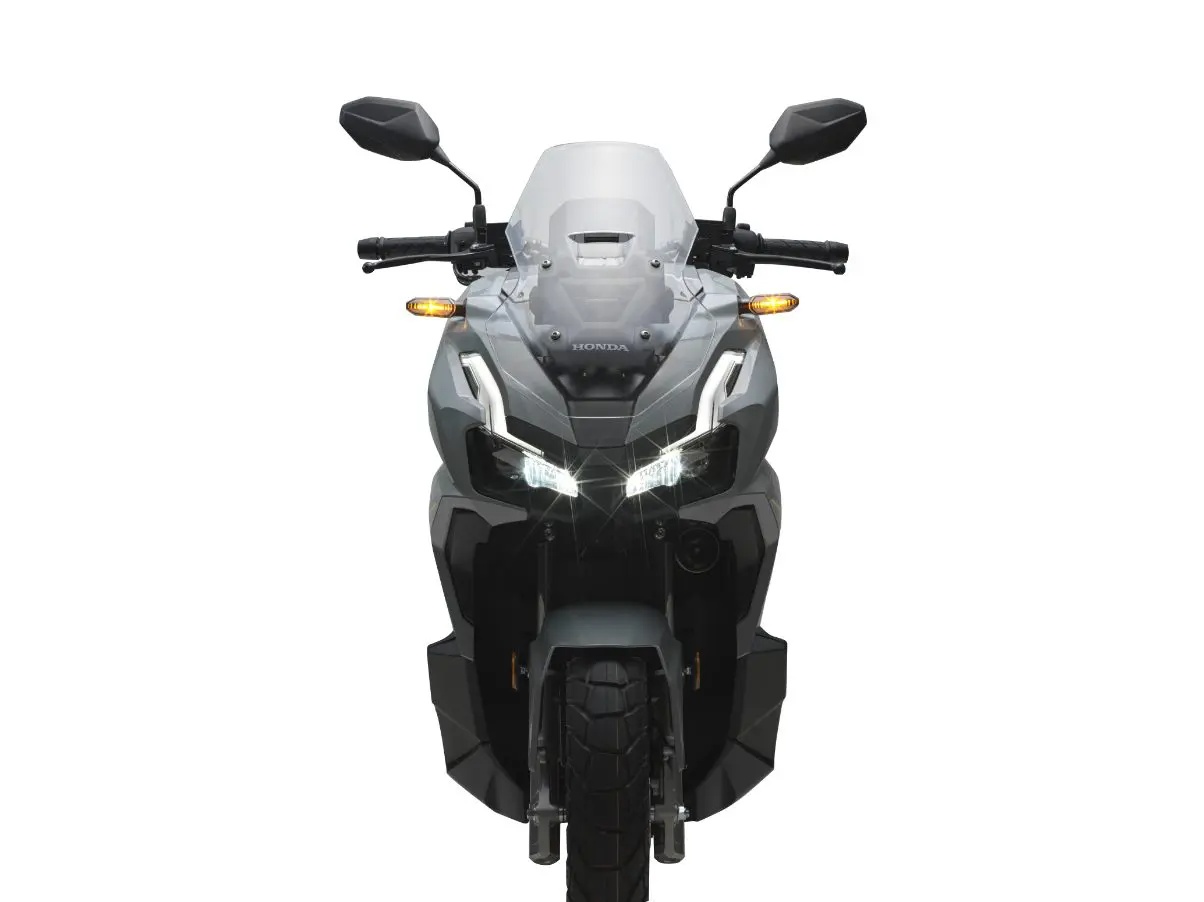

Modern LED technology provides brighter illumination and a longer lifespan for the headlights, taillights, position lights, and turn signal lights.
.jpg)

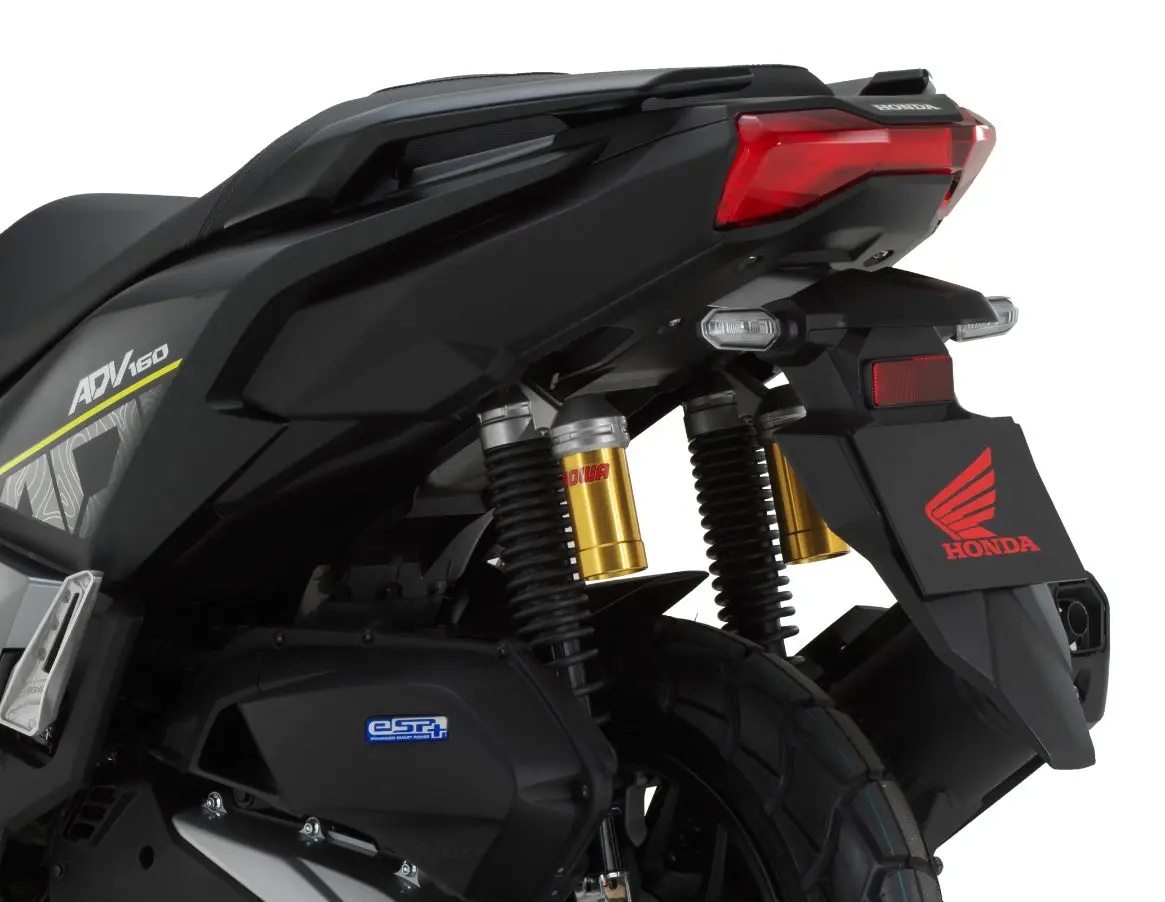

Designed with better ground access and comfort.

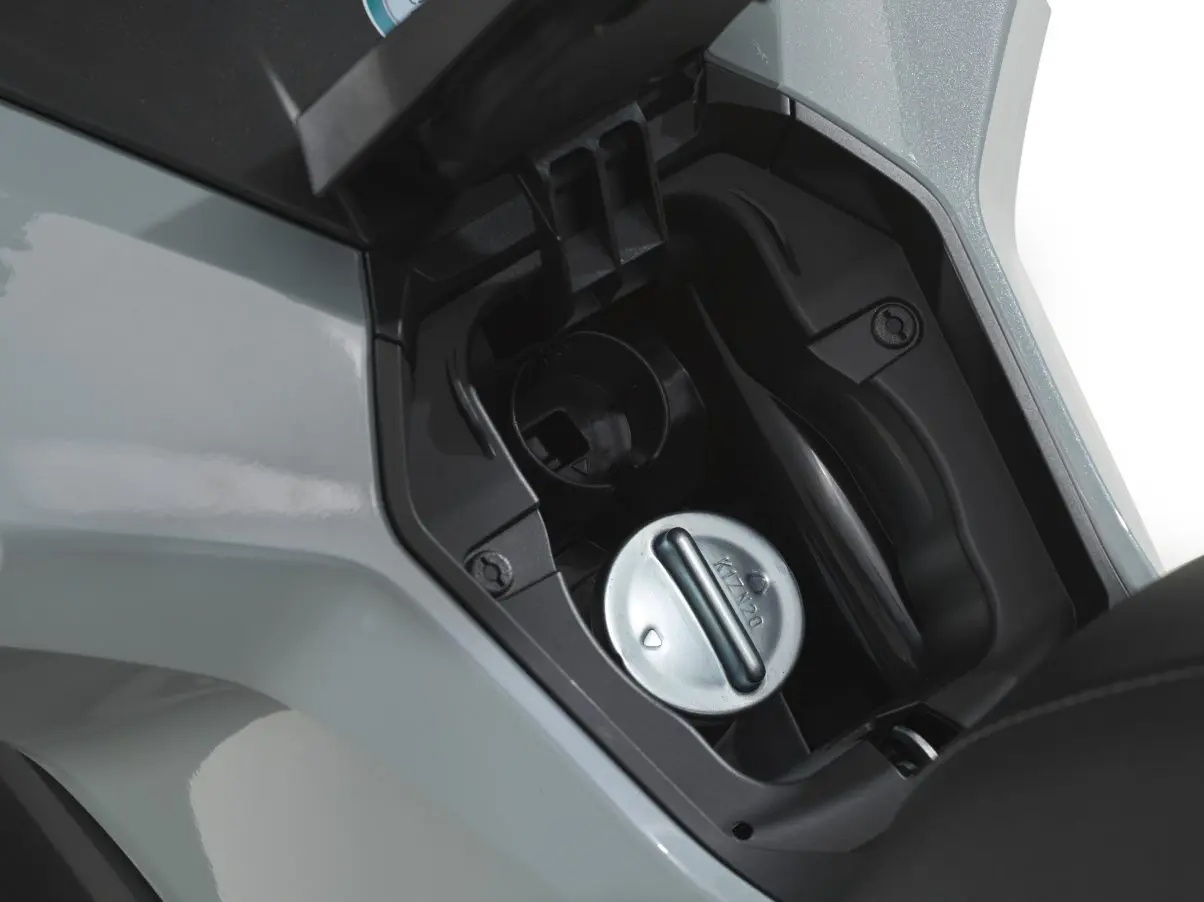

Explore adventure without frequent refuel.
| Type | Single Cylinder, Liquid Cooled, SOHC 4-Stroke 4 Valve, eSP+ |
| Displacement | 156.9 cm³ |
| Bore x Stroke | 60.0 mm x 55.5 mm |
| Compression Ratio | 12.0 : 1 |
| Max. Power | 11.8 kW / 8,500 rpm |
| Max. Torque | 14.7 Nm / 6,500 rpm |
| Engine Oil Capacity | 0.75 ! (After draining) / 0.9 ! (After disassembly) |
| Carburation | PGM-FI (Programmed Fuel Injection) |
| Fuel Tank Capacity | 8.1 ! |
| Starter | Electric Auto Start |
| Battery Capacity | 5.0 A.h (10HR) |
| ACG Output | 12 V |
| Clutch Type | Automatic Centrifugal Clutch Dry Type |
| Transmission Type | Automatic |
| Frame Type | Double Cradle |
| Dimensions (L x W x H) | 1,950 x 763 x 1,196 (Low) / 1,270 (High) |
| Wheelbase | 1,324 mm |
| Seat Height | 780 mm |
| Ground Clearance | 165 mm |
| Curb Weight | 133 kg |
| Suspension (FR) | Telescopic |
| Suspension (RR) | Swing Arm with Double Suspension |
| Tyres (FR) | 110/80 – 14 M/C (53P) (Tubeless) |
| Tyres (RR) | 130/70 – 13 M/C (57P) (Tubeless) |
| Brakes (FR) | Hydraulic Single Disc, ABS |
| Brakes (RR) | Hydraulic Single Disc |
