Contactless Safety Door Switch SSR22

ESPE safety door switches are used on fences of potentially dangerous machines and areas to monitor opening and closing of doors to ensure people safety protection.
Safety door switch is a kind of safety device, specialized for monitoring open/ close of protective mechanism (like safety fence door, protective cover).
SSR22 series safety door switch with RFID technology to ensure high safety and confidentiality.
The sensor & label support universal coding and unique coding.
Small size is better for mounting.

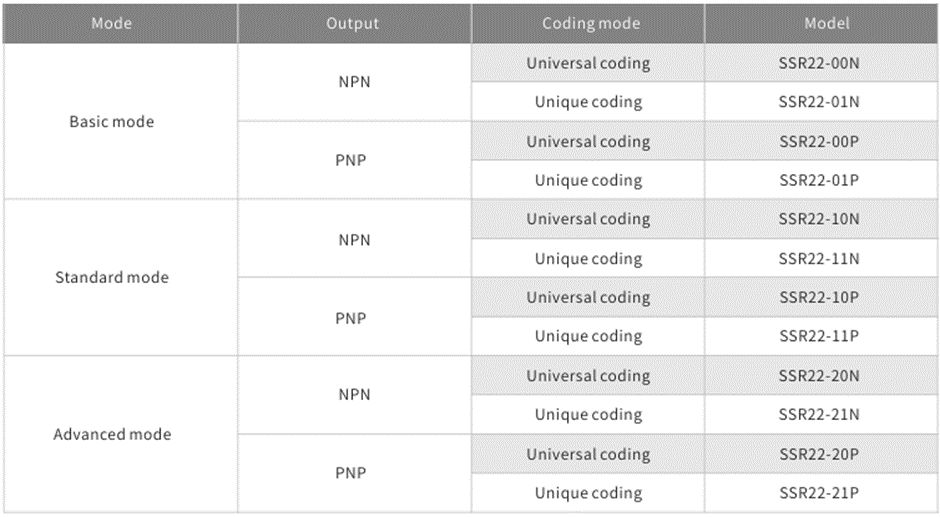

Model :


• SSR22 series



• Self-diagnose and cross-diagnose design: periodic mutual diagnose improve the safety level;
• Independent and redundant output: In case any risk caused by single loop failure;
• Magnetic holding force can reach 15N, which can replace the door magnet.

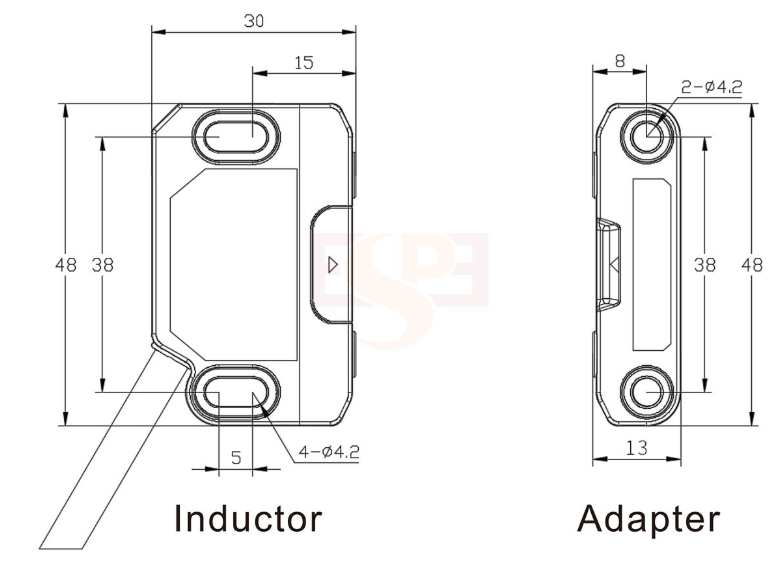

Dimension :

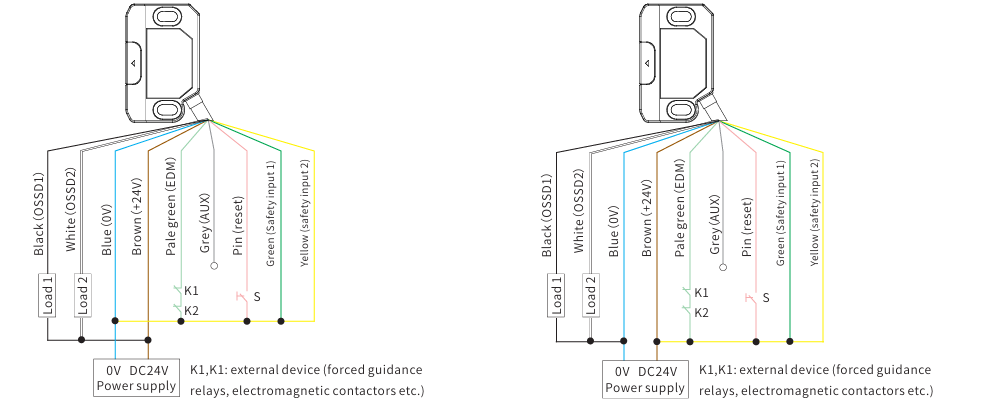

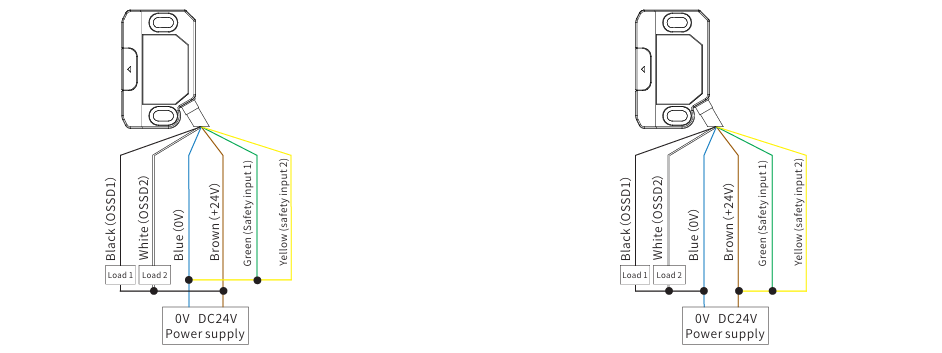

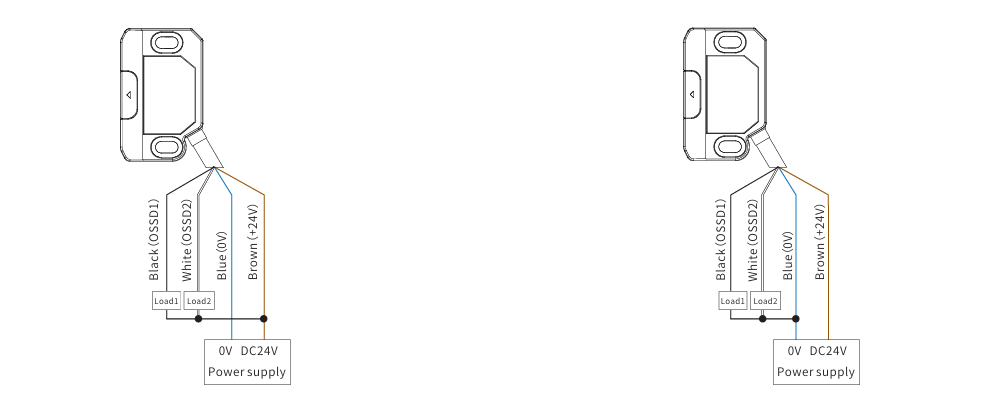

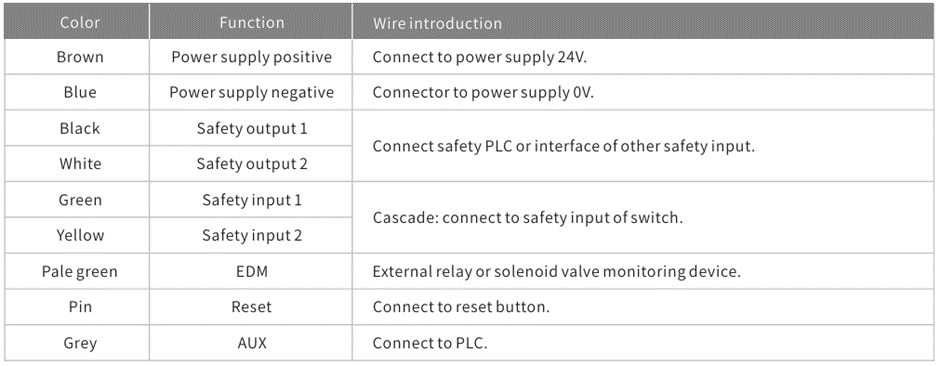

Wire Diagram :
