ESPE safety door switches are used on fences of potentially dangerous machines and areas to monitor opening and closing of doors to ensure people safety protection.
New generation safety door switch save labor and is environment beneficially.

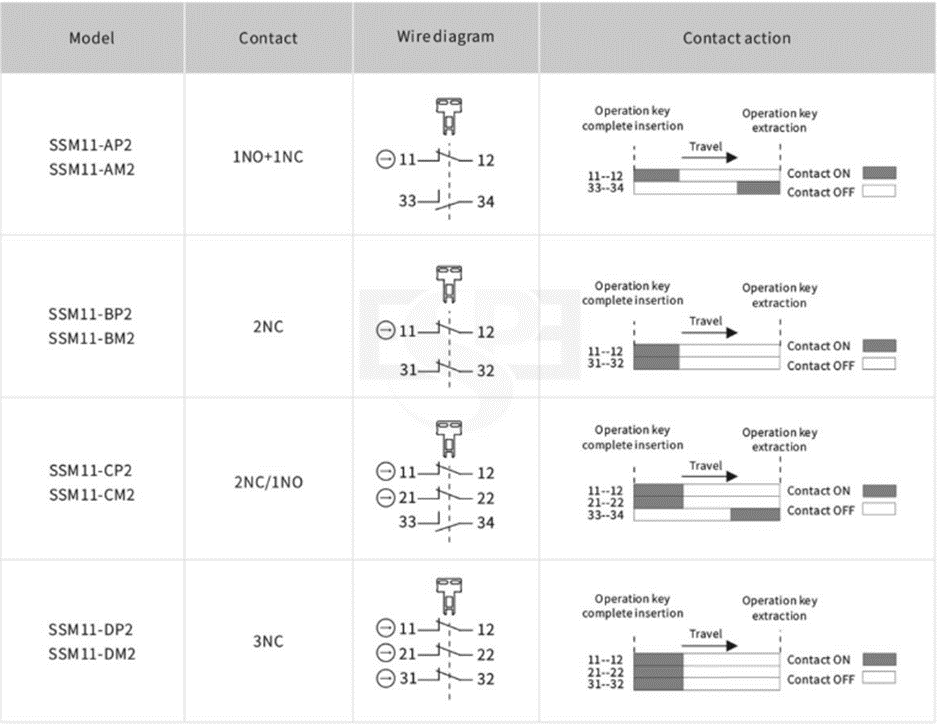

Equipped with 2NC/1NO and 3NC contact structure of 3 contact type.
Mechanical design only used for monitoring door close / open.

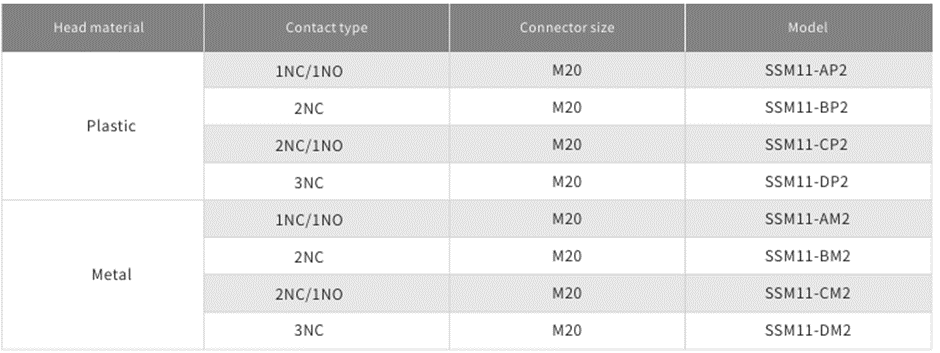

Model :
.png)
.png)
.png)
.png)
| Safety level | ||
| Certificate | CE | |
| Standard | EN60947-5-1、IEC60947-5-1、GB/T 14048.5、EN ISO 14119、GB/T 18831 | |
| Protection rate | IP67 | |
| Material | PA66 fire retardant | |
| Mechanical lifespan | >1 million times | |
| Electrical lifespan | Over 150,000 times | |
| Using Type | AC-15 | DC-13 |
| Rated operating voltage(Ue) | 240V | 24V |
| Rated operating current(Ie) | 3A | 2A |
| Electrical parameter | ||
| Contact resistance | <200mΩ | |
| Rated insulation voltage (Ui) | 300V | |
| Anti-electric shock level | Class II (double insulation) | |
| Pulse withstand voltage (EN60947-5-1) | 2.5kv | |
| Insulation resistance | 100MΩ above（<500VDC） | |
| Short-circuit protection | 10A, 250V requires a quick-break fuse | |
| Vibration resistance | 10-55HZ, double amplitude 1.5mm | |
| Compact resistance | Durability1000m/s² | |
| Conditional short-circuit current | 100A (EN60947-5-1) | |
| Space of contact | Above 2 x 2mm | |
| Action characteristic | ||
| Direct opening force | Standard model: minimum 60N | |
| Direct opening travel | Over 10mm | |
| Allowed operating speed | 0.1m-0.5m/s | |
| Allowed operating frequency | Maximum 20 times/minute | |
| Environment | ||
| Operating environment | 3 (EN60947-5-1) | |
| Operating temperature | -10°C to 60°C ( no freezing) | |
| Operating humidity | <85% RH | |
