High Level Safety Interlock SLR11: Top Choice in Johor Bahru (JB), Malaysia SEM Equipment Sdn. Bhd.

Description

ESPE safety door switches are used on fences of potentially dangerous machines and areas to monitor opening and closing of doors to ensure people safety protection.
Safety interlock switch is a safety device used to lock and monitor the movable mechanisms such as safety fence doors, and protective covers.
The strong structural design of SLR11 series make it withstand higher tension.
The RFID technology has highersecurityandconfidentiality.Sensor&actuatorsupportuniversalanduniquecoding.Smallsizeforeasyinstallation.

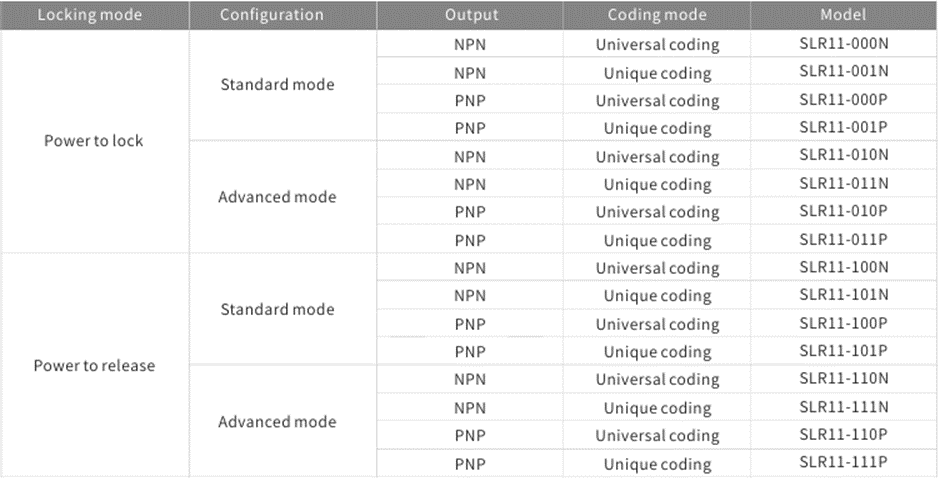

Models :

SLR11 Series

Features :

With locking & monitoring function;
Optional coding modes: Universal coding & unique coding;
Independent redundant dual signal: In case of hazard caused by signal loop failure;
Self-diagnose & cross-diagnose: Periodic double cross-diagnose improves security;
Small size: 29.7*29.7 section size;
Flexible installation: Directly installed on aluminum frame less than 30mm, brackets is no need.

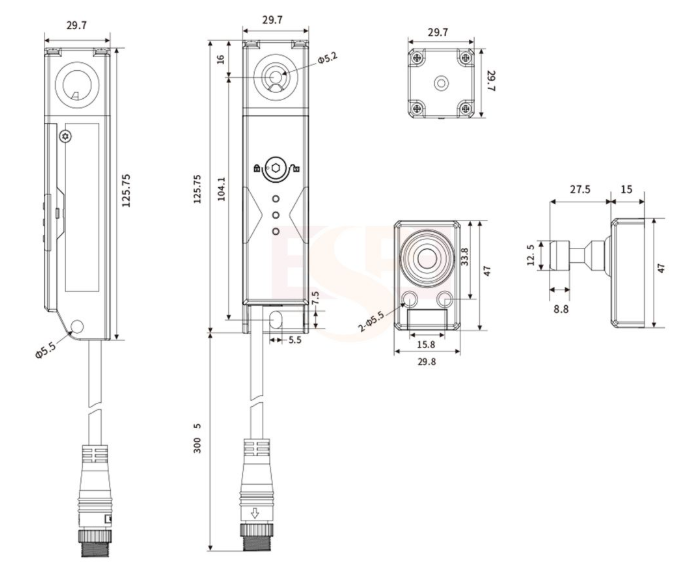

Dimension :

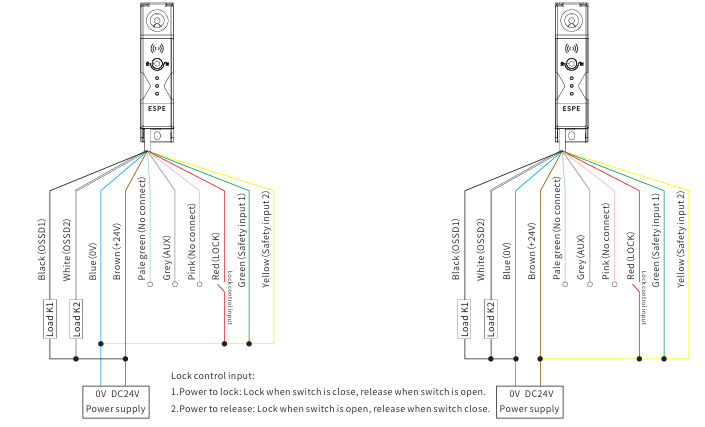

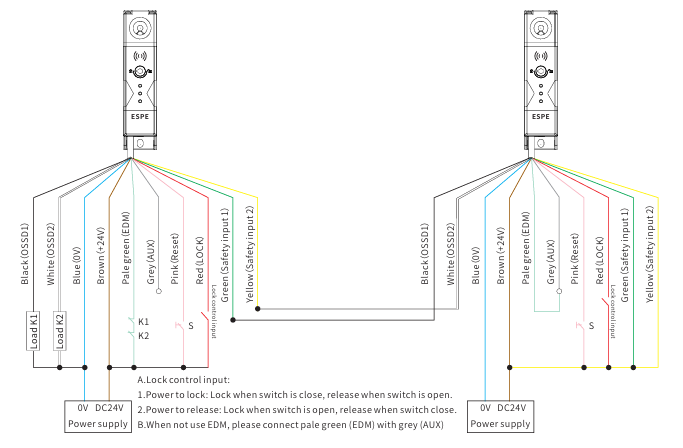

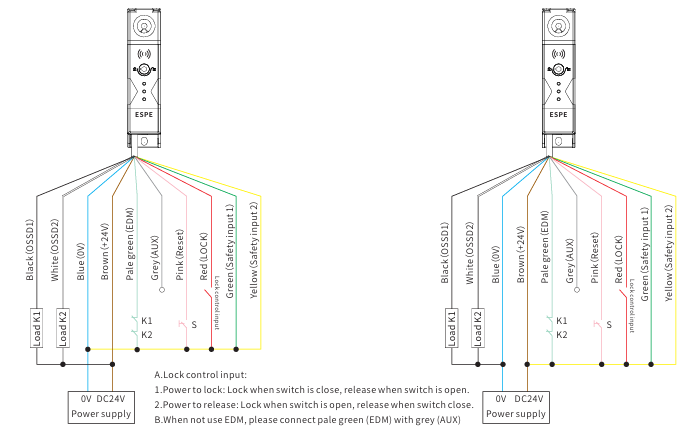

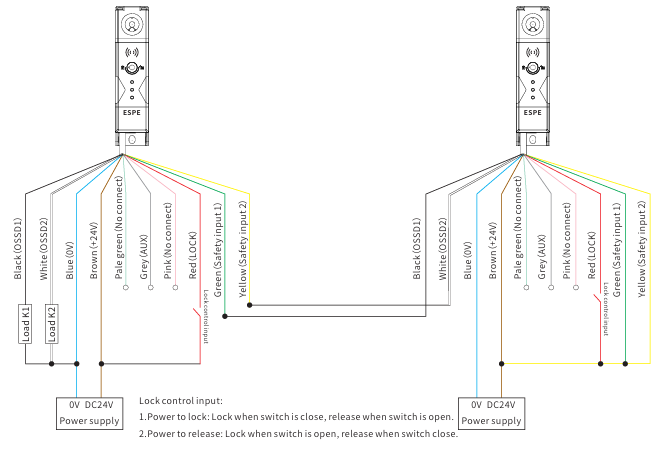

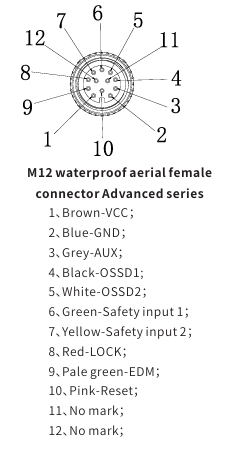

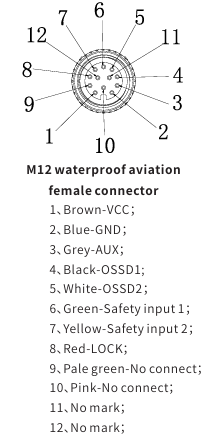

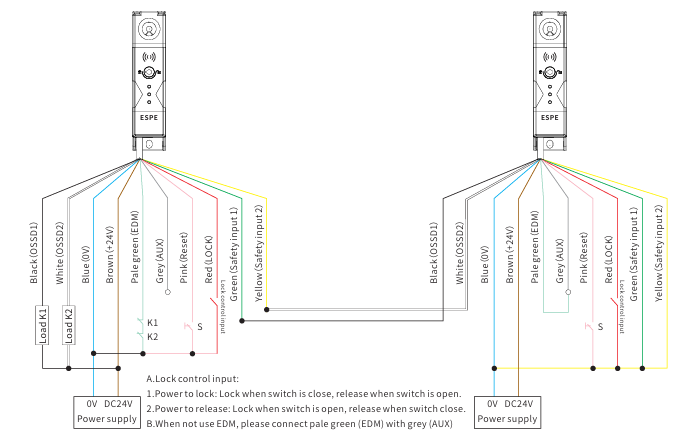

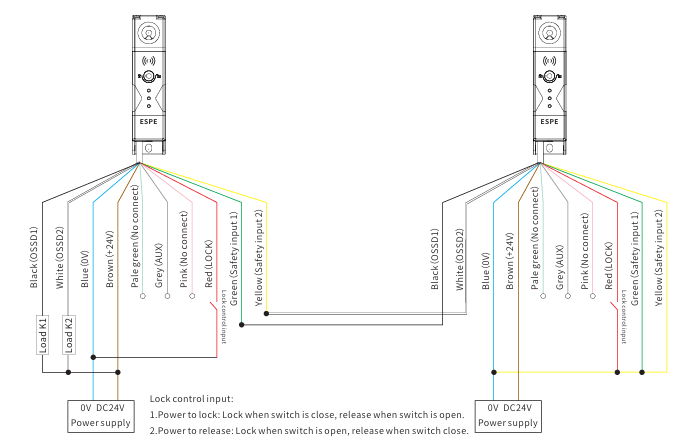

Wire Diagram :

Specifications :

Standard		ISO13849-1 (Category 4 PLe); IEC/EN60947-5-3
Certificate		CE
Locking model		Mechanical lock/ Power to lock
Safety output		NPN2/ PNP2
Response time	Lock-unlock	100ms (independent working)
Response time	Unlock-lock	Approximate 1mA
Response time	Lock-unlock	100ms (independent working)
Response time	Unlock-lock	Approximate 1mA
Locking	Lock holding force	Over 2000N
	Lock bolt insertion deviation	Less then 2mm
	Mechanical endurance	Over 1 million times(door operaing speed 1m/s)
	Mechanical endurance	Over 1 million times(door operaing speed 1m/s)
	Operating frequency	1Hz
	Minumum radius of	Over 220mm
	revolving door	Over 220mm
	Manual unlocking	Front, back
Cascade linking		Max 20 pieces
Control	Output type	Transistor output *2
output	Maximum load current	≤200mA
(OSSD output)	Residual voltage (when it it on)	<2.5V@200mA
	Voltage when OFF	≤2V @wire cable 5m
	Leakage current	≤0.5mA
	Maximum load capacity	2.2uF
	Load connection resistance	≤2.5Ω
AUX output(unsafe	Output type	Transistor output
output)	Output quantity	1
	Maximum load capacity	50mA
	Residual voltage (when ON status)	≤2.5V @50mA
External	Safety input	1.5mA*2
input	Safety input	1.5mA*2
(breaking	Reset/ EDM input	About 10mA*1
current)	Locking control input	About 10mA*1
Power	Power supply	DC24V±15%
Power	Rated capacity	4.6W (no load)
Protection		Safety circuit protection, current limit,overload protection, overvoltageprotection, stop & restart when overheat
Protection		Reverse polarity protection, transient noise protection, invalid pulse protectio
Environment Resistance	Housing protection rate	IP65
	Operating ambient	-20°c-55°c (no freezing)
	temperature	-20°c-55°c (no freezing)
	Storage temperature	-25°c-70°c (no freezing)
	Operating	5%-95%RH
	ambient humidity	5%-95%RH
	Storage temperature	5%-95%RH
	Vibraion resistance	10Hz-55Hz, dounle amplitude 2.0mm, 5minutes each in X, Y and Z directions
	Shock resistance	30g 6 times each in X, Y and Z directions
Risk time		100ms
Restart time		3.5s
Material		Nylon/ zinc alloy/ stainless steel

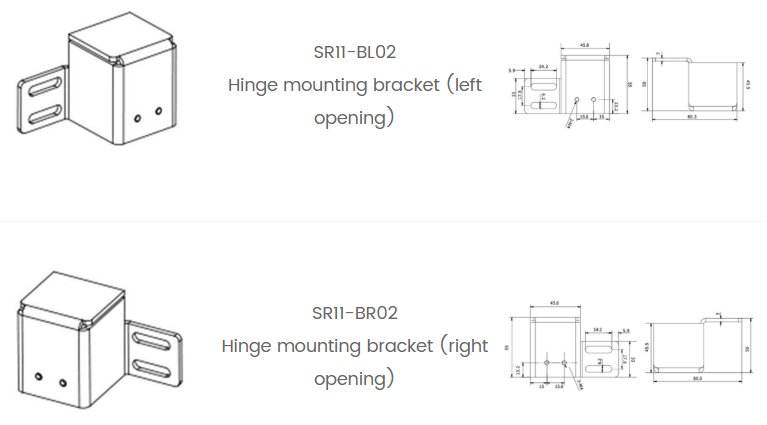

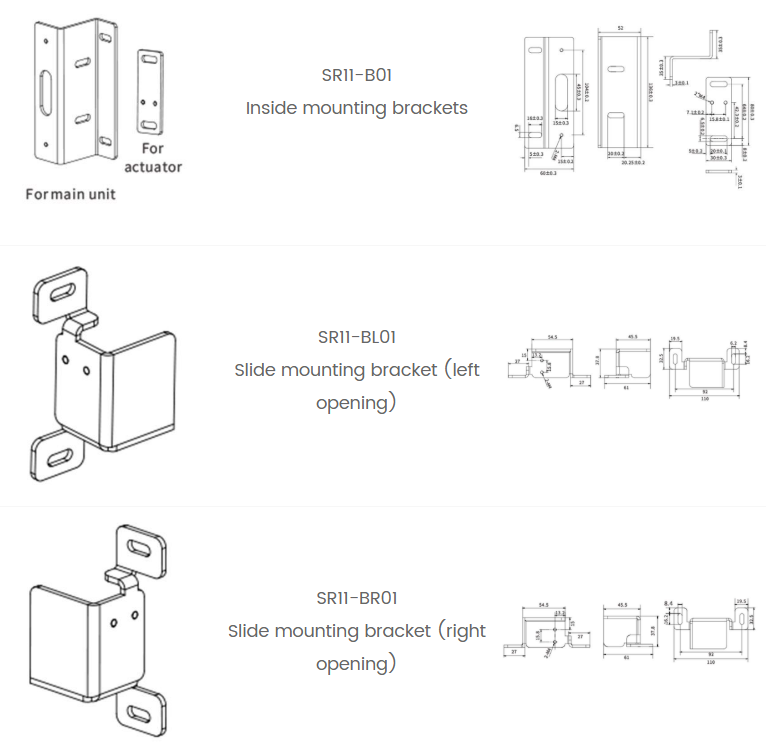

Bracket Options :

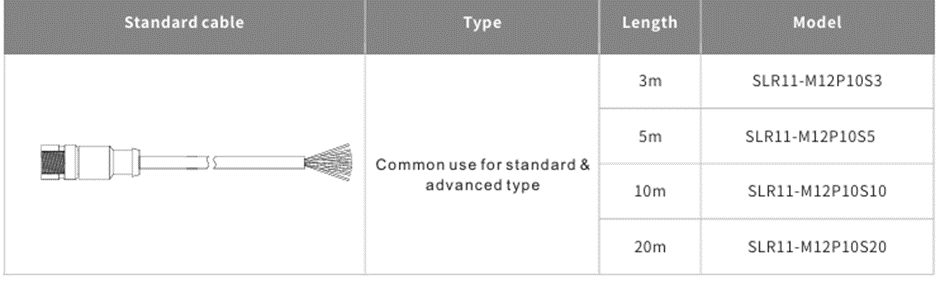

Cable Option :

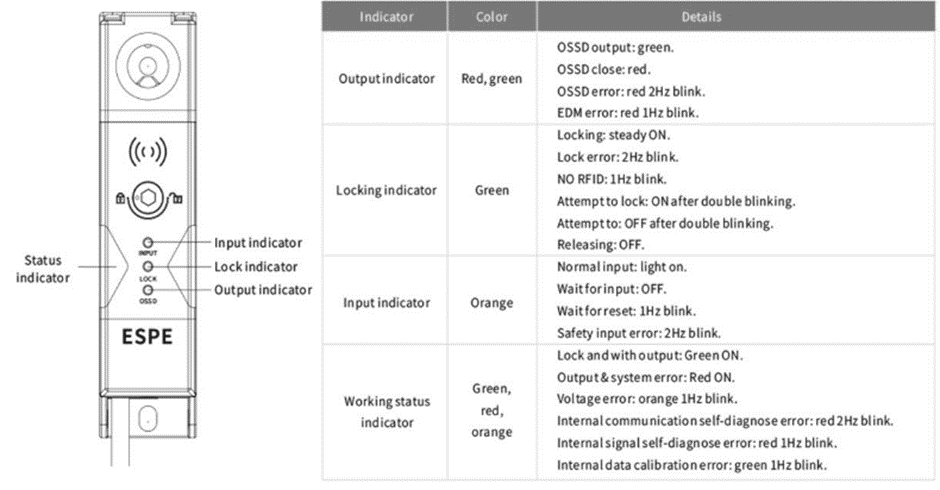

Indicator Light :
