ESPE safety door switches are used on fences of potentially dangerous machines and areas to monitor opening and closing of doors to ensure people safety protection.
SLE21 series is anelectromagnetic locking safety interlock switch, the misalignment constructure and strong holding force ensure an optimized solution for movable guarding doors.
The switch with advantage of electromagnetic and miniature size support new solution for small equipment with smaller inertia. Non-contact feature is available in high cleanliness and dust-freework shop like semiconductor, automobile manufacturing, beverage & food production etc.

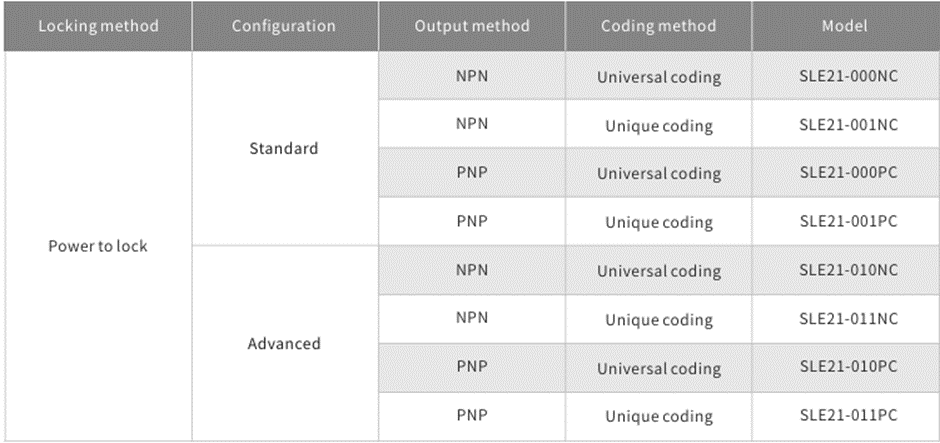

Model :

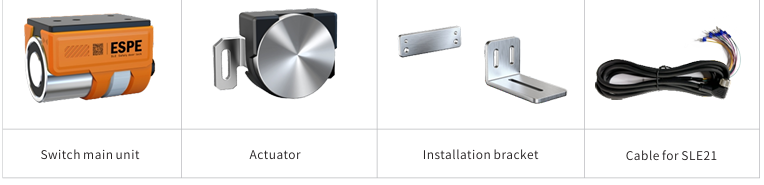

.png)

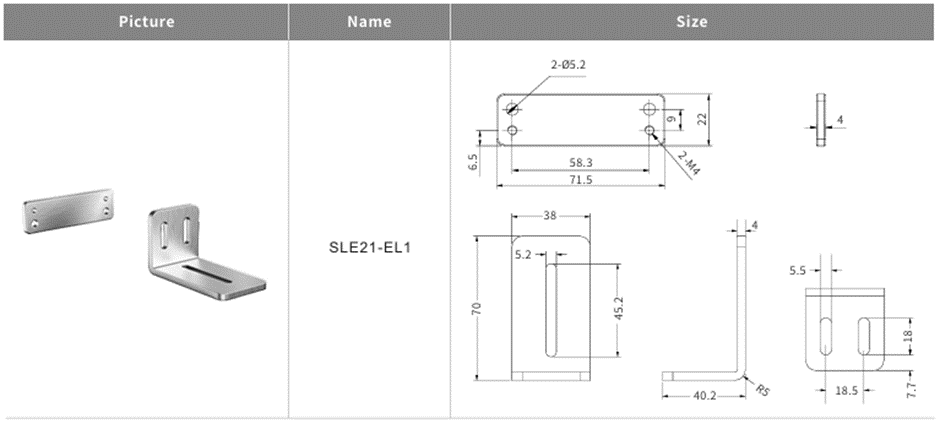

.png)

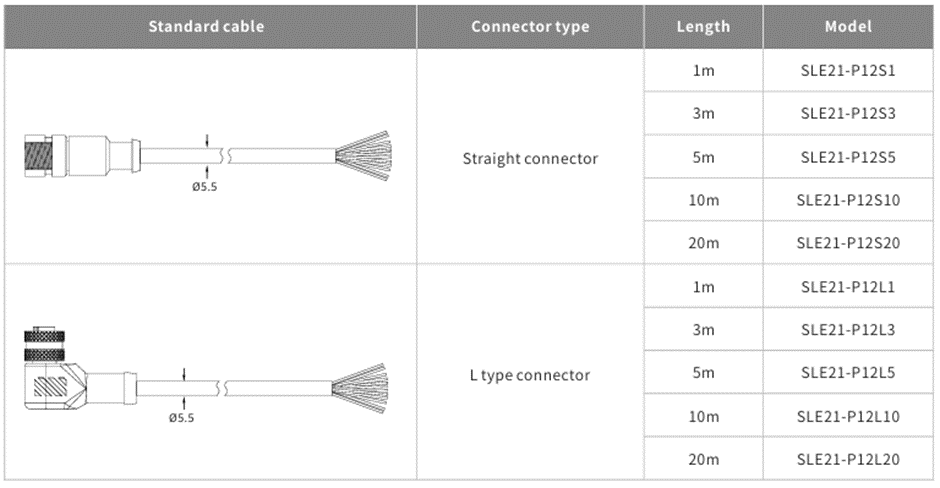

.png)
.png)
.png)
.png)
.png)
.png)
| Type | Hinged door | ||
| Miniature size | |||
| M12 connector | |||
| Standard mode | Advanced mode | ||
| Working distance | Sao (Off-On) | 4mm | |
| Sar(On-Off) | 4mm | ||
| Response time | Lock release | 200ms | |
| Release lock | 200ms | ||
| Detect non-detect | 20ms+2ms* (cascading amount-1) | ||
| Non-detect-detect | 300ms+25ms* (cascading amount-1) | ||
| Control output | Output method | Transistor output*2 | |
| Max. load current | 150mA | ||
| Residual voltage (during ON) | 2.5V max. (5m cable) 3.5V (31m cable) | ||
| OFF stage voltage | 2.0V max. (5m cable) 3V (31m cable) | ||
| Leakage current | 0.5mA max. | ||
| Max. capacitive load | 4uF | ||
| Load wiring resistance | 2.5Ωmax. | ||
| AUX output (Not safety output) | Output | Transistor | |
| Max. load current | 50mA | ||
| Residual voltage (when ON) | 2.5V max. (5m cable) 3.5V (31m cable) | ||
| External input (Short circuit current) | Safety input | Approx. 1.5mA x 2 | |
| Lock control input (OSSD switching input) | Approx. 5mA | ||
| Reset/EDM input | Approx. 5mA (only for advanced function) | ||
| EDM option input | Approx. 2.5mA (only for advanced function) | ||
| Power | Power supply | 24VDC±10% (ripple P-P 10% Class 2) | |
| Power consumption | <5W | ||
| Circuit protection | Reverse current protection, short-circuit protection and surge protection for each output | ||
| Environmentall resistance | Enclosure rating | IP67 | |
| Ambient temperature | -10°C~+55°C (No freezing) | ||
| Storage temperature | -25°C~+70°C (No freezing) | ||
| Operating relative humidity | 5% to 95%RH | ||
| Storage relative humidity | 5% to 95%RH | ||
| Vibration resistance | 10 to 55Hz, double amplitude 2.0mm, 5 minutes in each of tine X, Y, and Z direction (IEC60947-5-3) | ||
| Shock resistance | 30G in X, Y, Z directions 6 times each axis (IEC60947-5-3) | ||
| Applicable standards (safety) | EN ISO13849-1:2015 (PL e, Category 4), IEC60947-5-3, EN60947-5-3 | ||

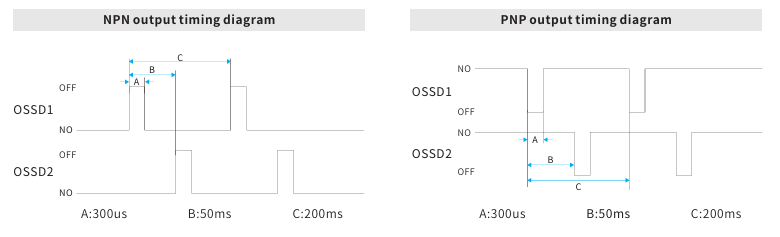

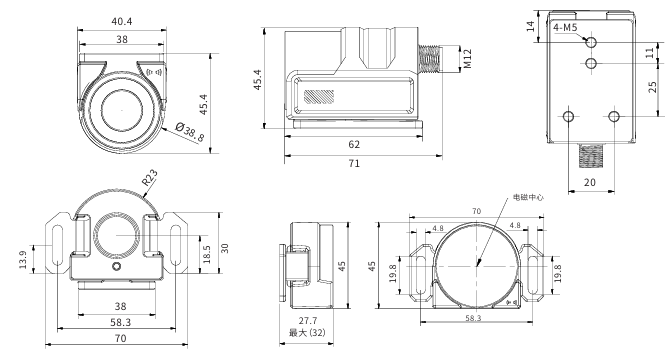

.png)

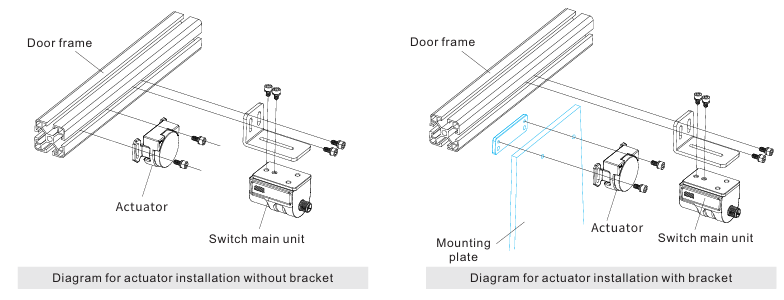

.png)

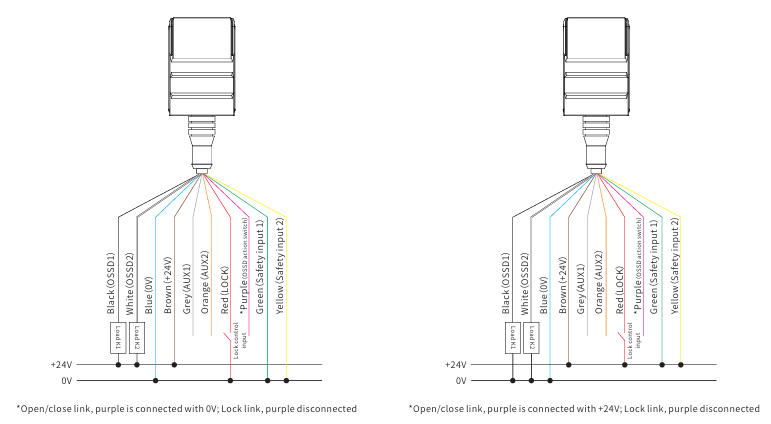

.png)

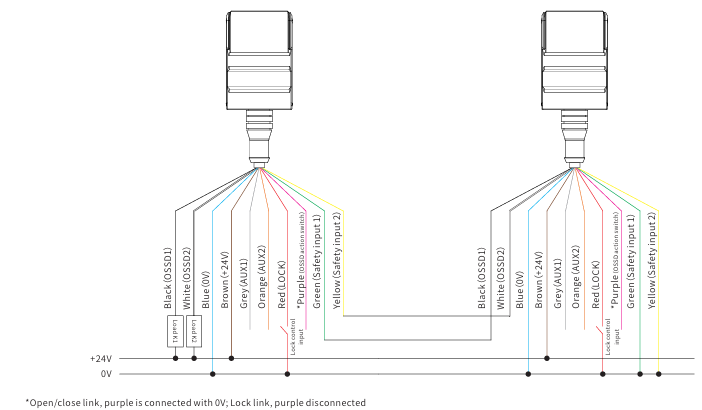

.png)

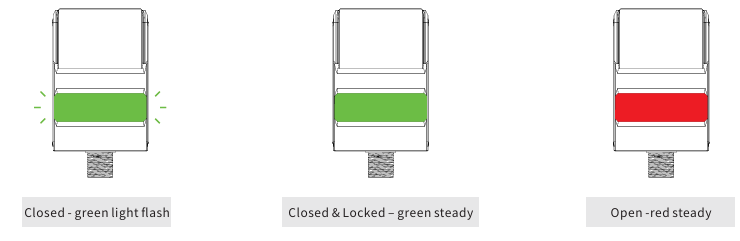

.png)
