Multiple-side Safety Light Curtain

ESPE safety light curtains are widely used in hazardous areas to avoid any industrial accidents caused by access the danger area, and also monitoring of automated manufacturing cells and production line.
ESCQ area protection safety light curtain, can work with ESN model and ESE model to form a multiple safety protection side. The standing column can be installed on ground directly, and fixed with light barrier & mirrors to form multiple protection side.




Model :


• Beam space 10mm, Resolution 20mm

• Beam space 20mm, Resolution 40mm

• Beam space 40mm, Resolution 50mm

• Multi-side protection but only 1 pair of curtain;
• Long sensing distance, for single side, distance can reach 30 meters;
• High safety performance, cause of dual loop and self-inspection design;
• It has strong anti-electromagnetic interference ability, can effectively resist various electromagnetic interference influenced by machine motors.
• The interior of curtains adopts a seismic structure and aluminum alloy shell, which is good at anti-shock
• Wire synchronization technology, it has strong anti-light interference ability;
• Multiple installation methods, and a variety of installation rack options;

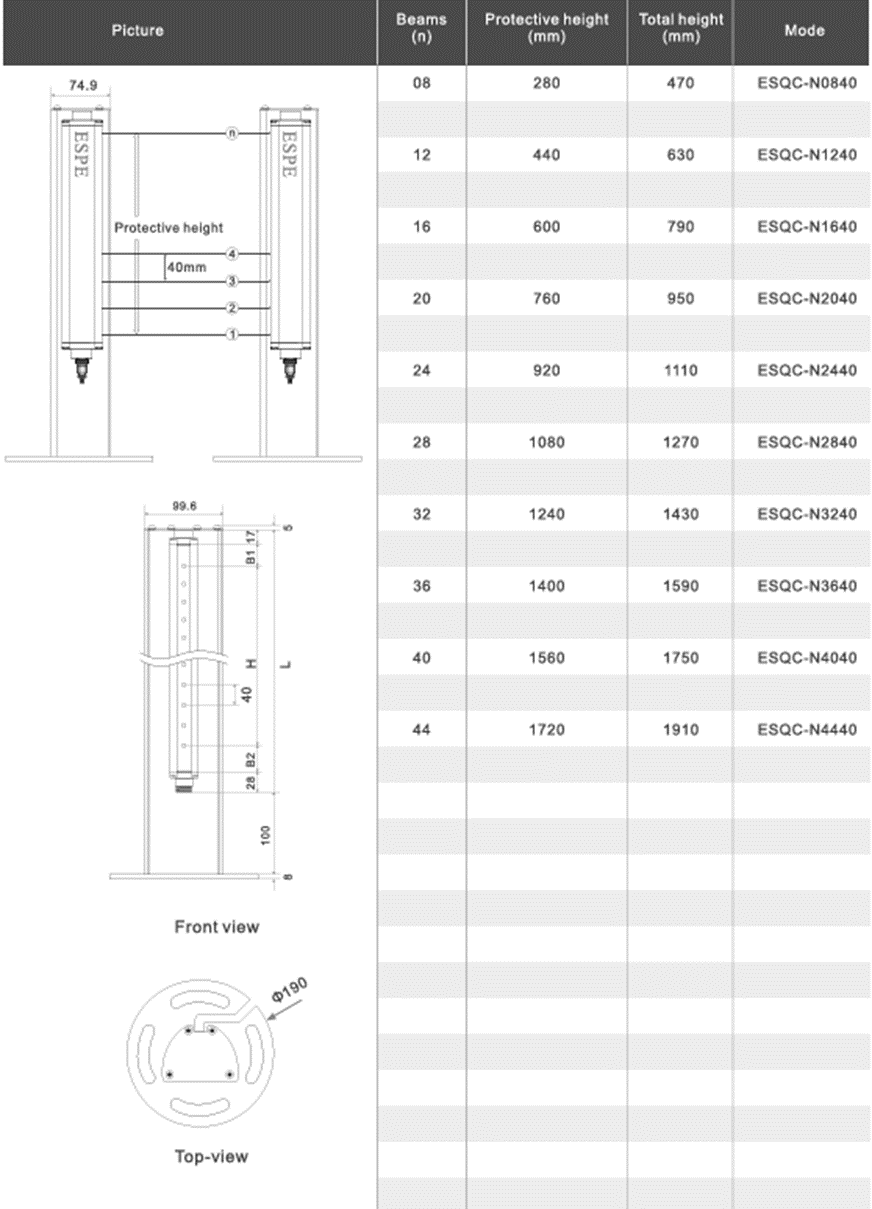

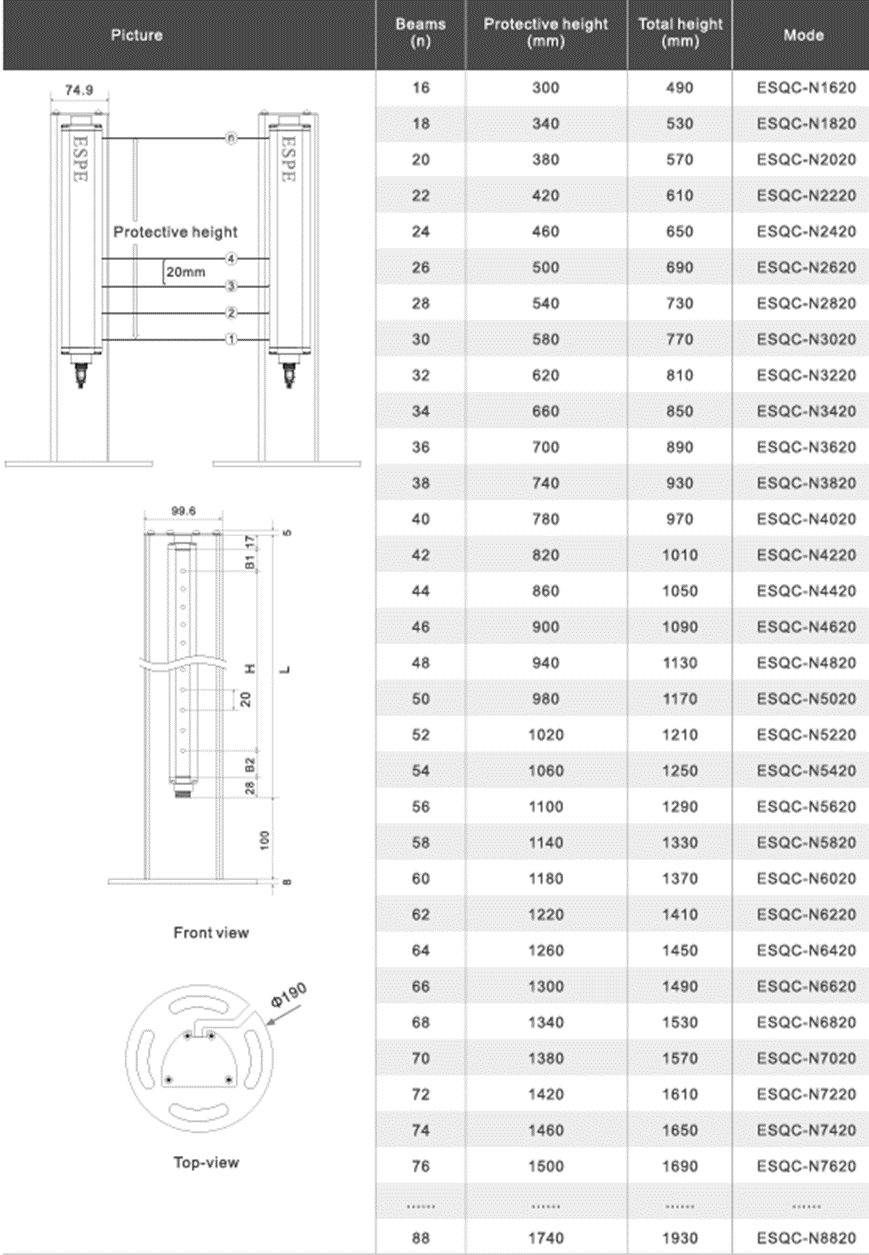

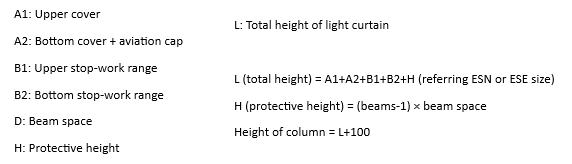

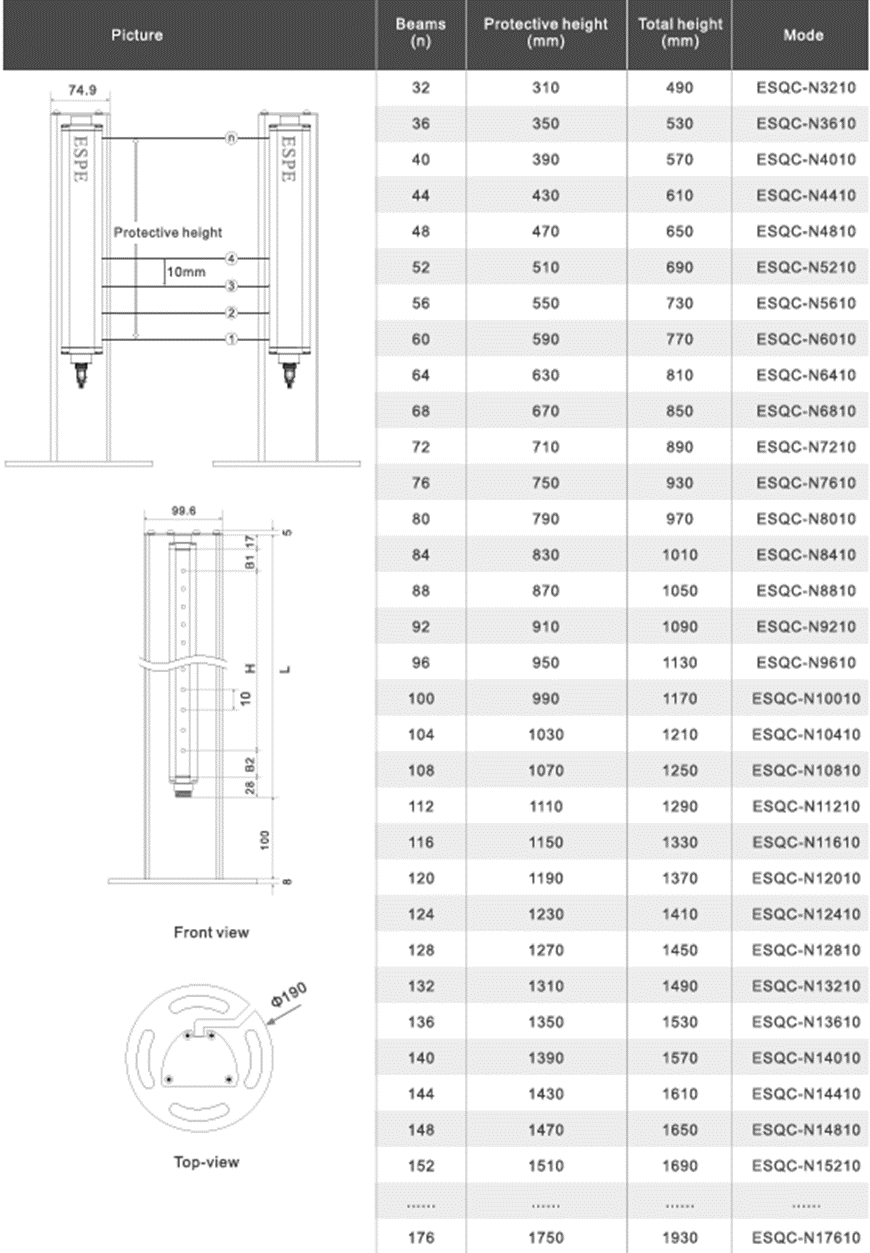

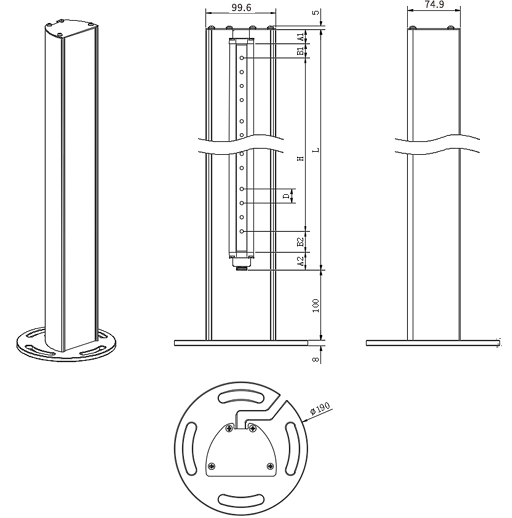

Dimension :

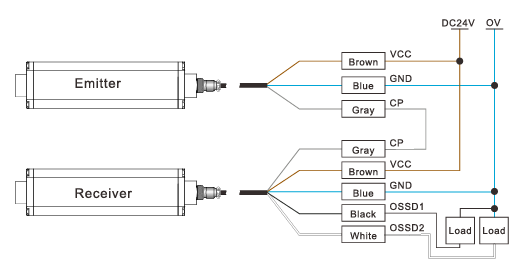

• NPN

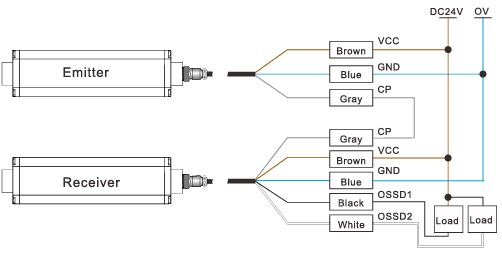

• PNP
