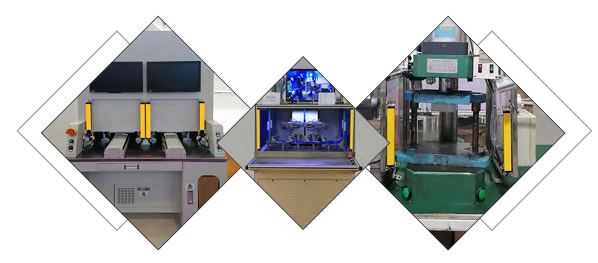

ESPE safety light curtains are widely used in hazardous areas to avoid any industrial accidents caused by access the danger area, and also monitoring of automated manufacturing cells and production line.

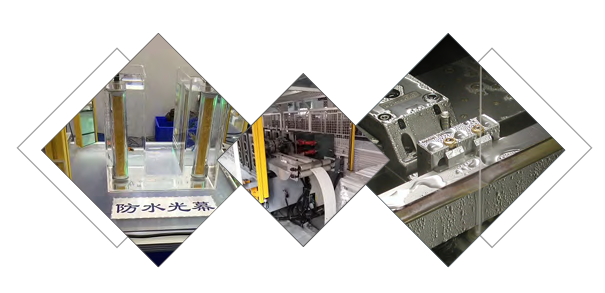

ESF series safety light curtain with IP68 protection rate, can work well under water. Good ability against interference of strong light and electromagnet, low capacity, quick response for high safety performance.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
Specifications :
| Power Supply | DC24V±20% |
| Capacity | <5W |
| Beam Space | 10mm, 20mm, 40mm |
| Resolution | 20mm, 30mm, 50mm |

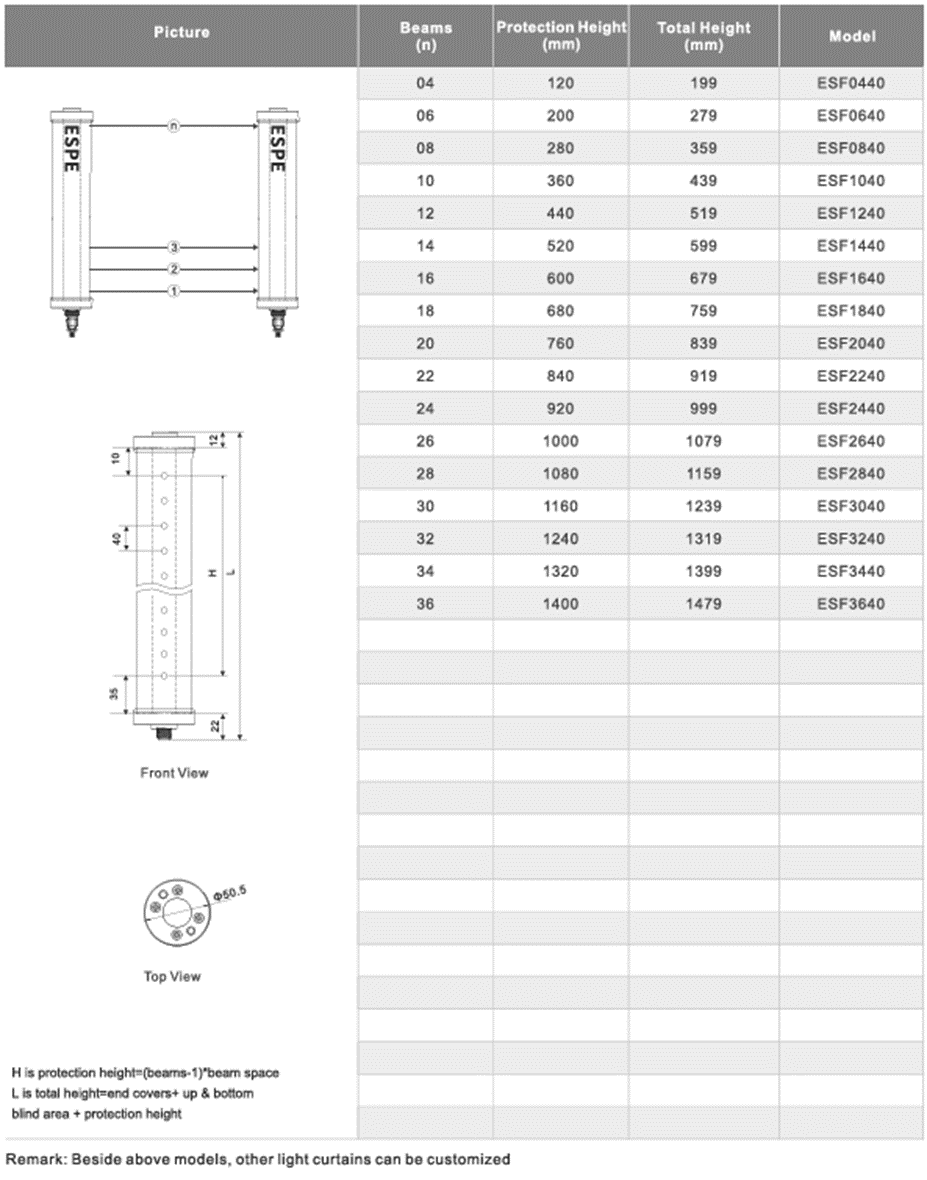

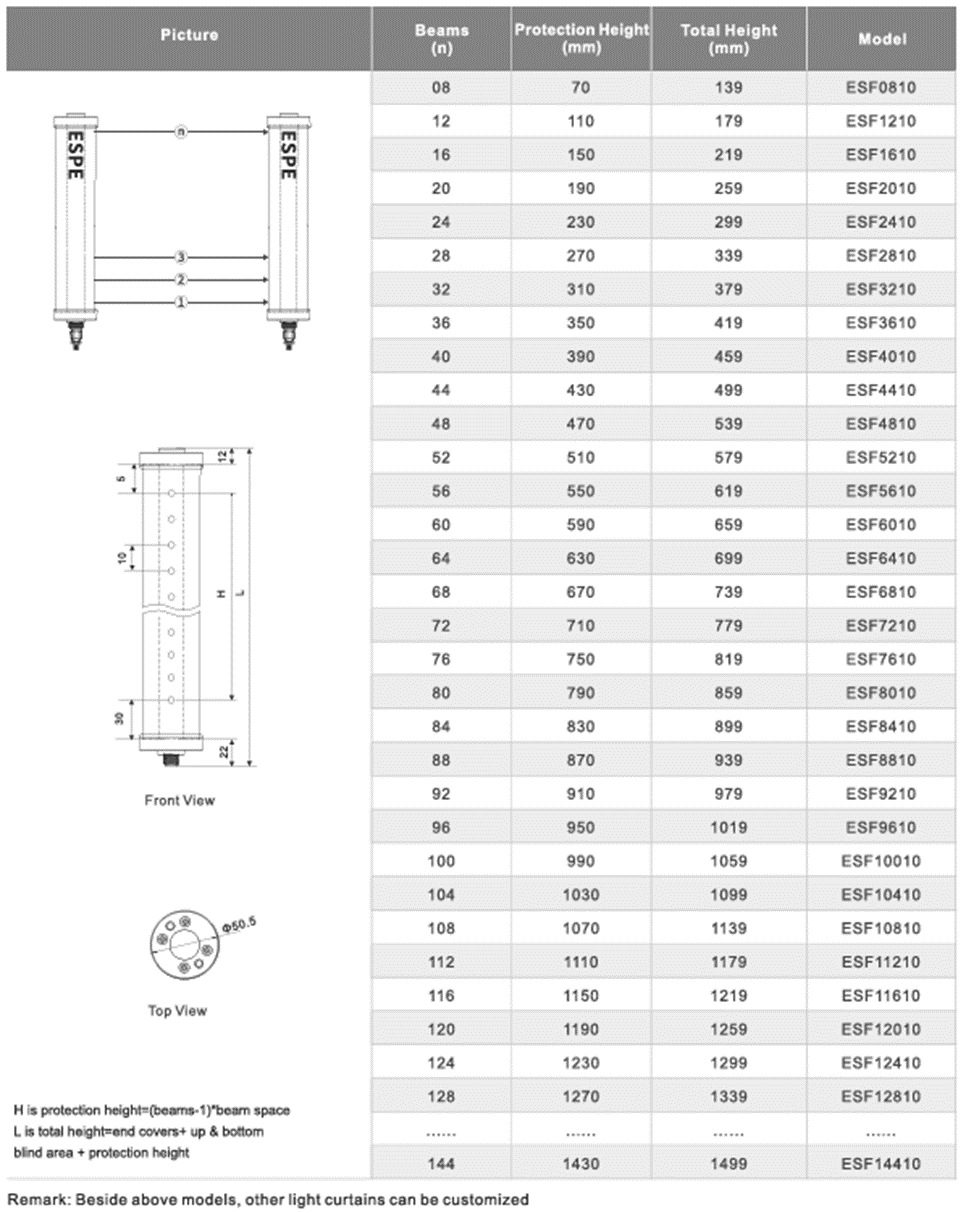

| Beams | 10mm: 8, 12, 16,...144 |
| 20mm: 4, 6, 8,...72 | |
| 40mm: 4, 6, 8,...36 | |

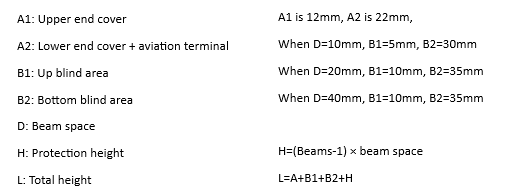

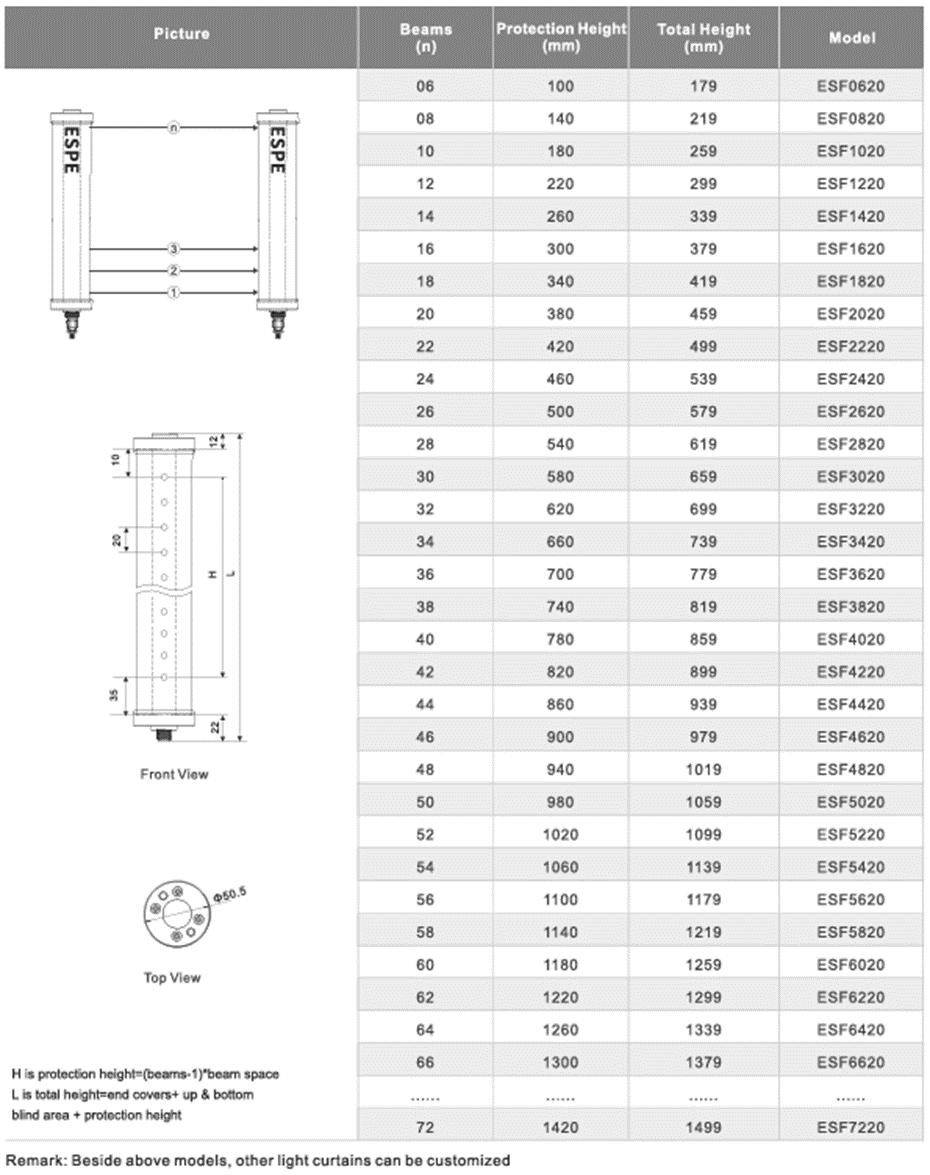

| Protective Height | Protection height=(N-1)*beam space, N is beams |
| Light Wavelength | 940nm |
| Response Time | Response Time (N*0.1ms) + 0.4ms N is beams |

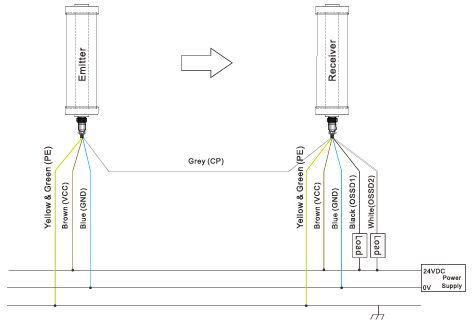

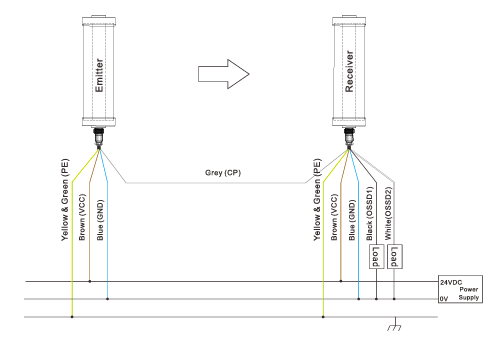

| Safety Output (OSSD) | PNP or NPN Load current≤500mA (Temperature exceed 40°C≤400 mA), residual voltages1V (any voltage drop caused by cable extension is excepted,), voltage leakage≤0.1mA. |
| Protective Circuit | Overvoltage protection, power supply reverse protection and overcurrent protection. |
| Sensing Distance | 0.1~0.5m, 0.1~2m, 0.1~4m (Remark: please let us know when with reflectivity) |
| Against Optical Interference | 10000 Lux (angle>2.5°) |
| Sensing Method | Thru-beam |
| Synchronization | Wire-syn |
| Enclosure Material | Aluminum alloy+PMMA |
| Enclosure Protection Rate | IP68 |

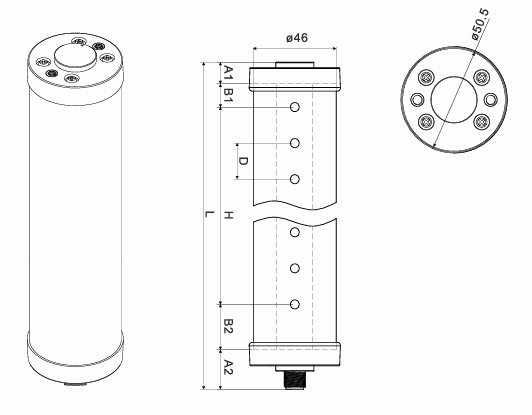

| Sectional Size | F46mm |
| Ambient Operating Temperature | -10°C~55°C (no freezing) |
| Storage Temperature | -30°C~60°C (no freezing) |
| Ambient Operating Humidity | When temperature 20°C, the humidity max. 85% |
