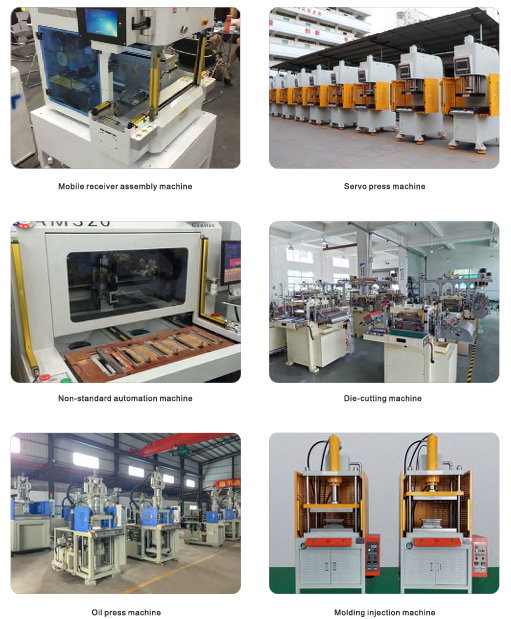

ESPE safety light curtains are widely used in hazardous areas to avoid any industrial accidents caused by access the danger area, and also monitoring of automated manufacturing cells and production line.
To meet requirement of customers from different industry, ESPE designed Type 4 curtain, economical curtain, ultra-compact curtain, no dead zone curtain etc.
ELG series is suitable for various automation equipment for its compact size. High resolution, long sensing distance, dual independent loop and self-diagnosis & cross-diagnosis for high safety performance..png)
.png)
.png)
.png)
.png)
.png)
.png)
Specifications :
| Safety Standard | Type 2 (IEC 61496-1/-2) Cat. 2, PL c (ISO 13849-1) SIL 1 (IEC 62061 IEC 61508) |
| Power Supply | DC24V ± 20% |
| Capacity | < 5 W |
| Beam Space | 10 mm, 20 mm, 40 mm |
| Resolution | 15 mm, 25 mm, 45 mm |

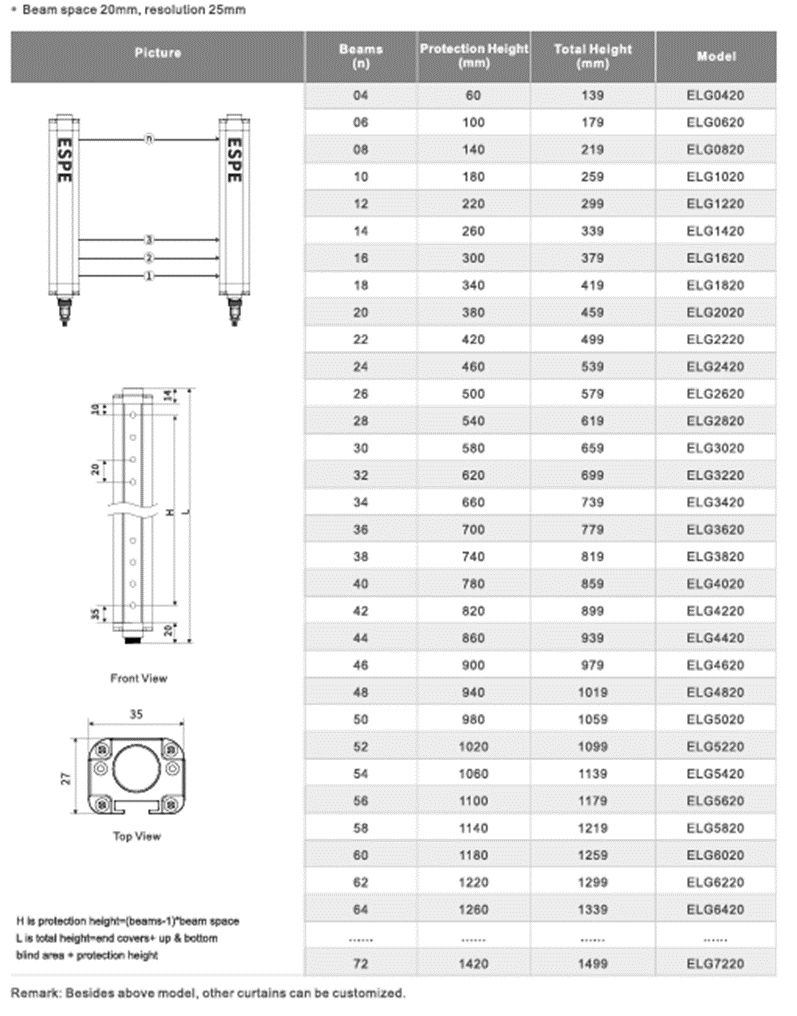

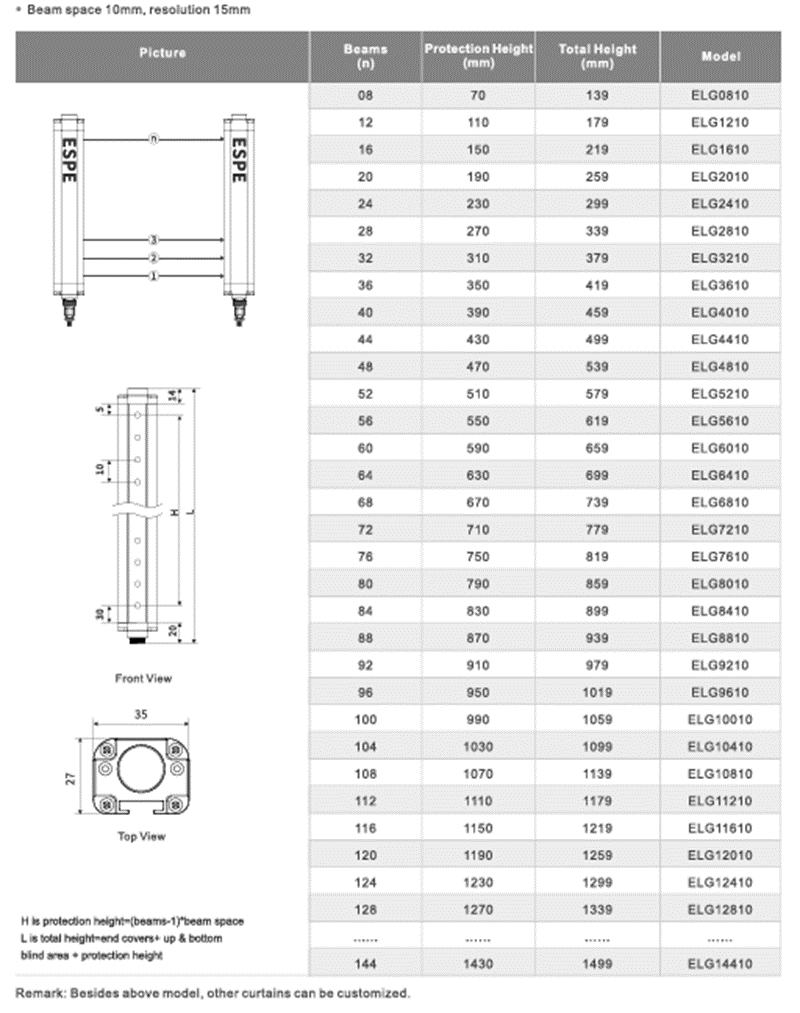

| Beams | 10 mm beam space: 8,12,16,20,...144 |
| 20 mm bean spасе: 4,6,8,...72 | |

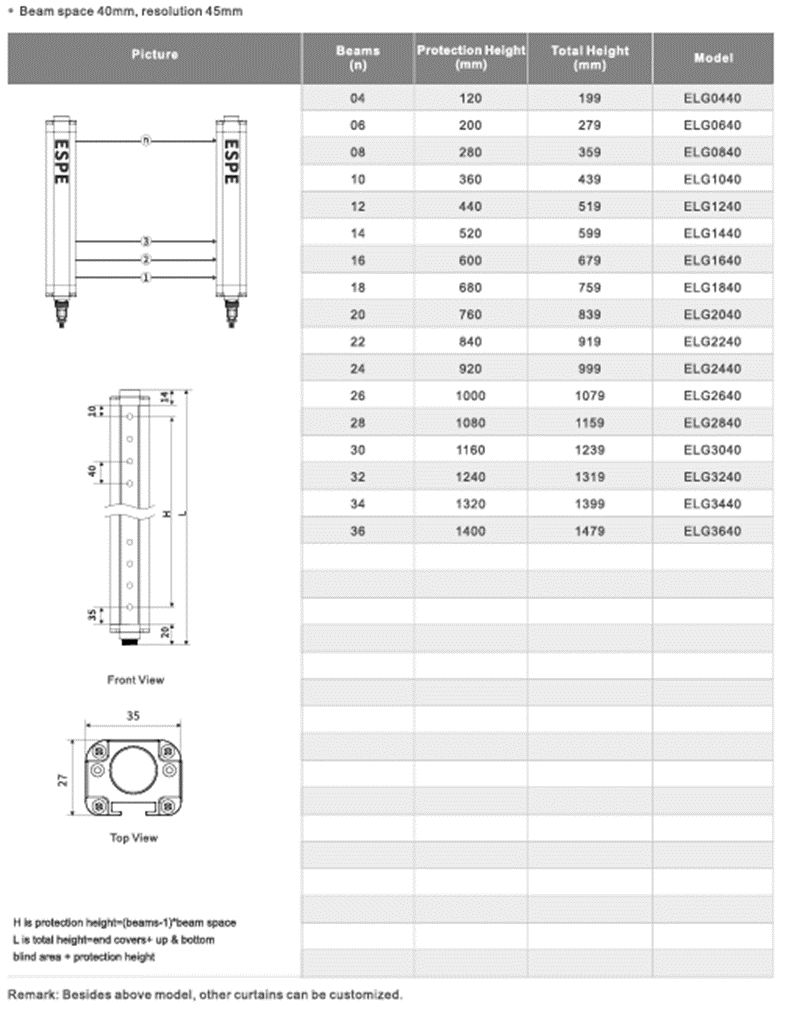

| 40 mm beam space: 4,6,8,...36 | |

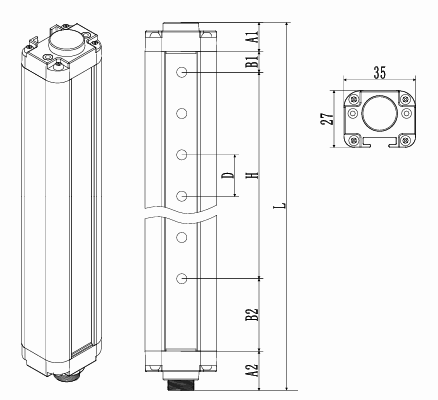

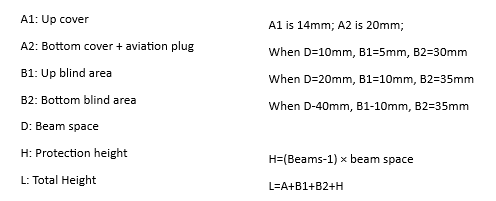

| Protective Height | Protection height = (N-1)*beam space, N is beams |
| Light Wavelength | 940 nm |
| Response Time | Response Time (N*0.1ms) +0.4ms N is beams |

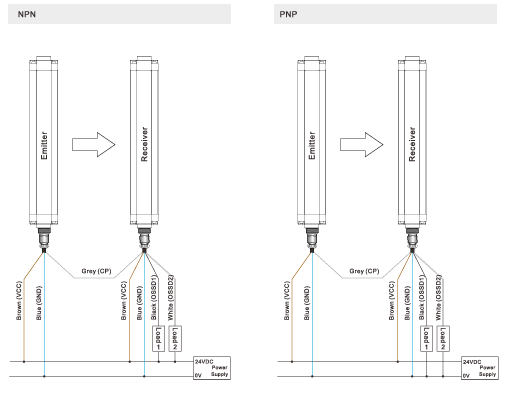

| Safety Output (OSSD) | PNP or NPN |
| Load currents500mA (Temperature exceed 40°C≤400 mA), residual voltages1V (any voltage drop caused by cable extension is excepted,), voltage leakages0.1mA. | |
| Protective Circuit | Overvoltage protection, power supply reverse protection and overcurrent protection. |
| Sensing Distance | 0.1~0.5 m, 0.1-2 m, 0.1-5 m |
| Against Optical Interference | 10000 Lux (angle>2.5") |
| Sensing Method | Thru-beam |
| Synchronization | Wire synchronization |
| Enclosure Material | Aluminum alloy |
| Color | Golden, Silver, Yellow |
| Enclosure Protection Rate | IP65 |
| Sectional Size | 35 × 27 mm |
| Ambient Operating Temperature | -10°C~55°C (no freezing) |
| Storage Temperature | -30°C~70°C (no freezing) |
| Ambient Operating Humidity | When temperature 20°C, the humidity max. 85% |
.png)
