Description

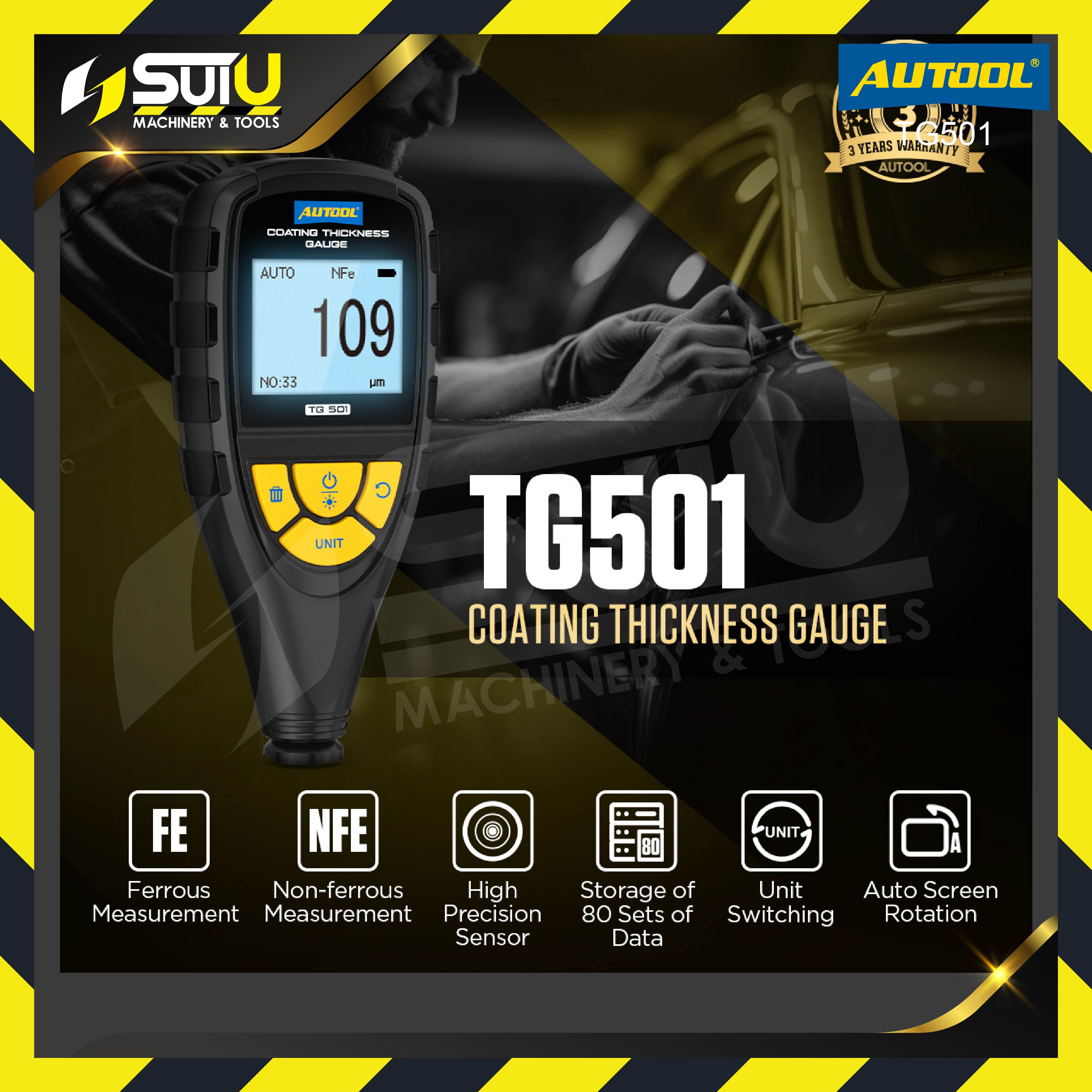

⭐️FEATURES⭐️

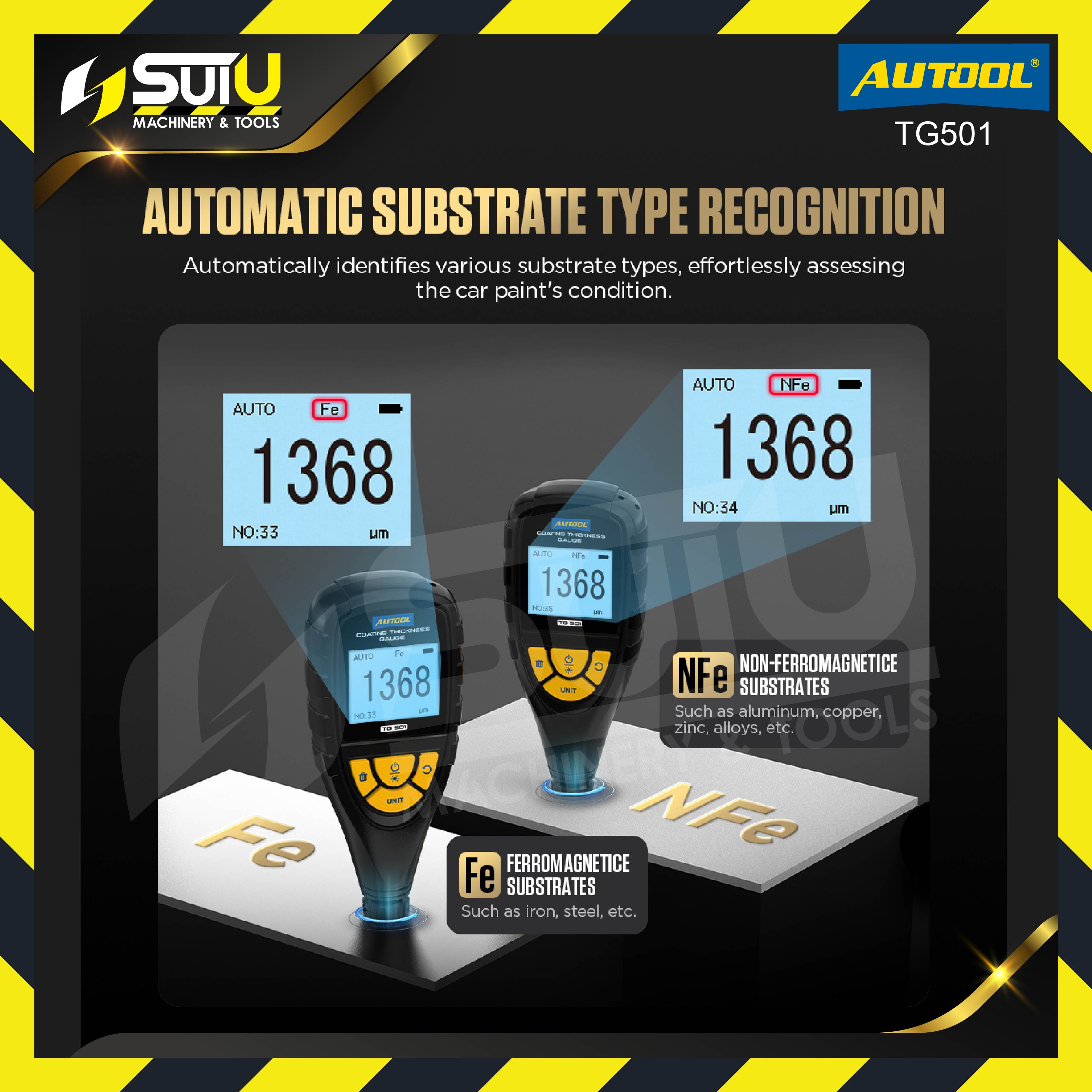

- Ferrous measurement
- Non-ferrous measurement

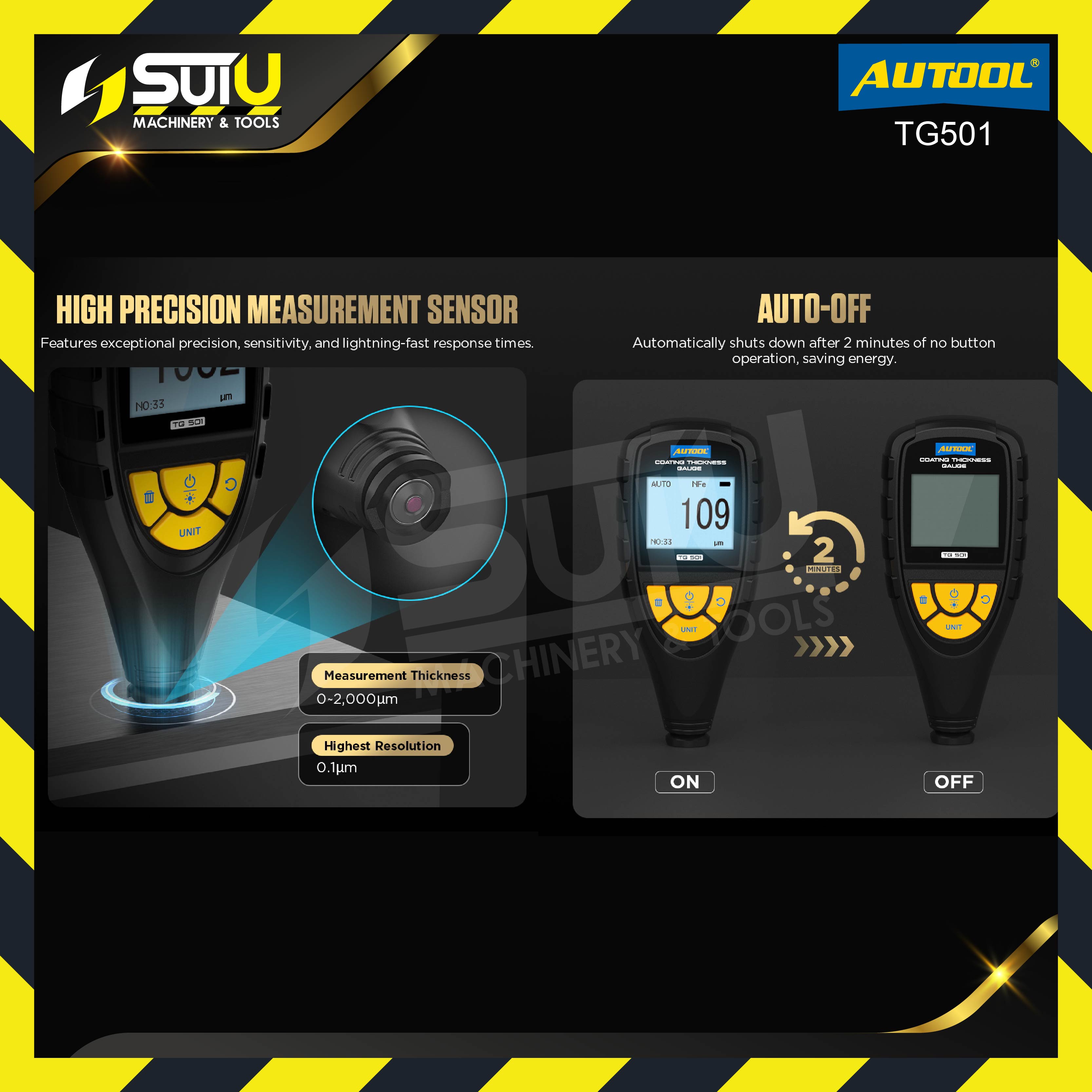

- High Precision sensor
- Storage of 80 sets of data
- Unit switching

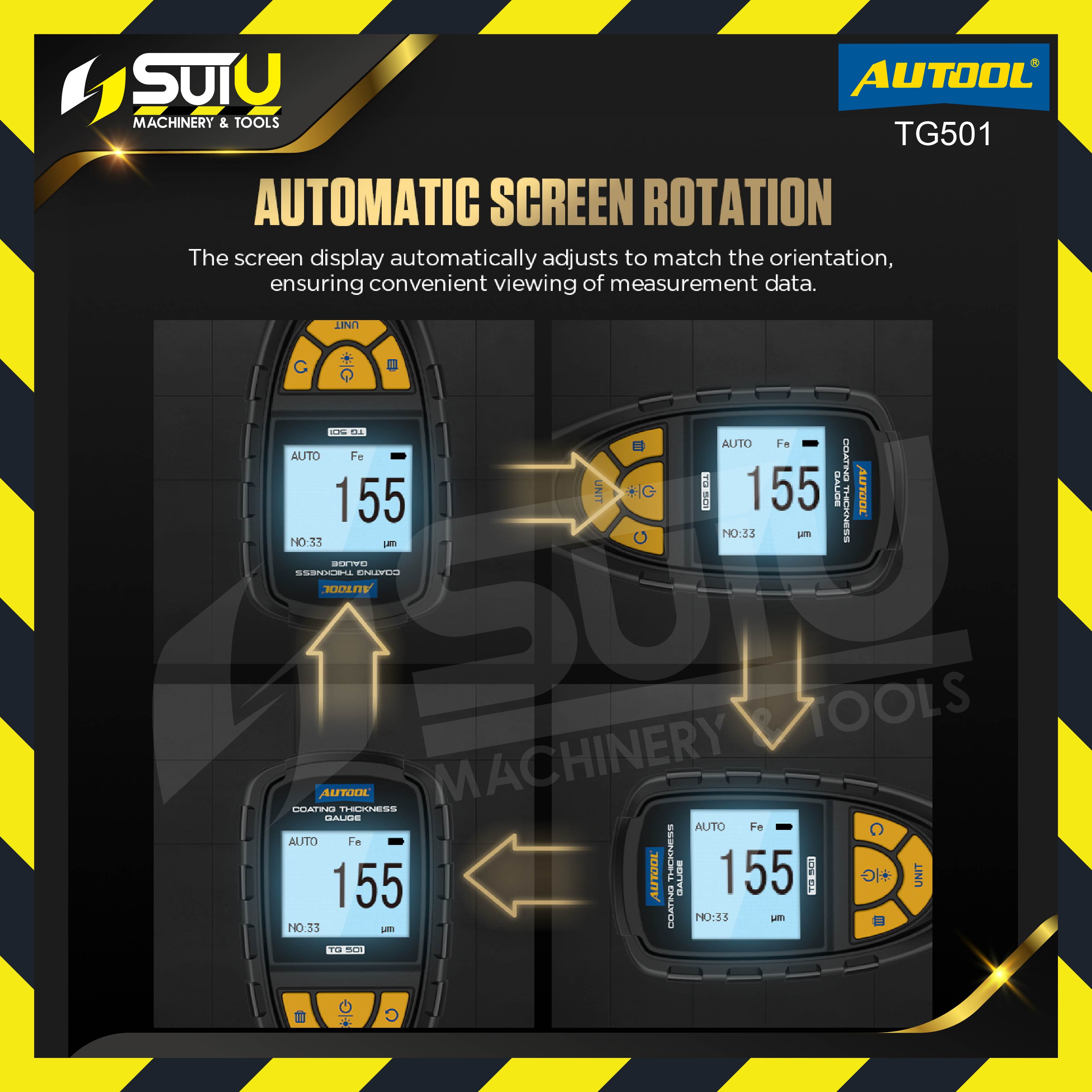

- Auto screen rotation

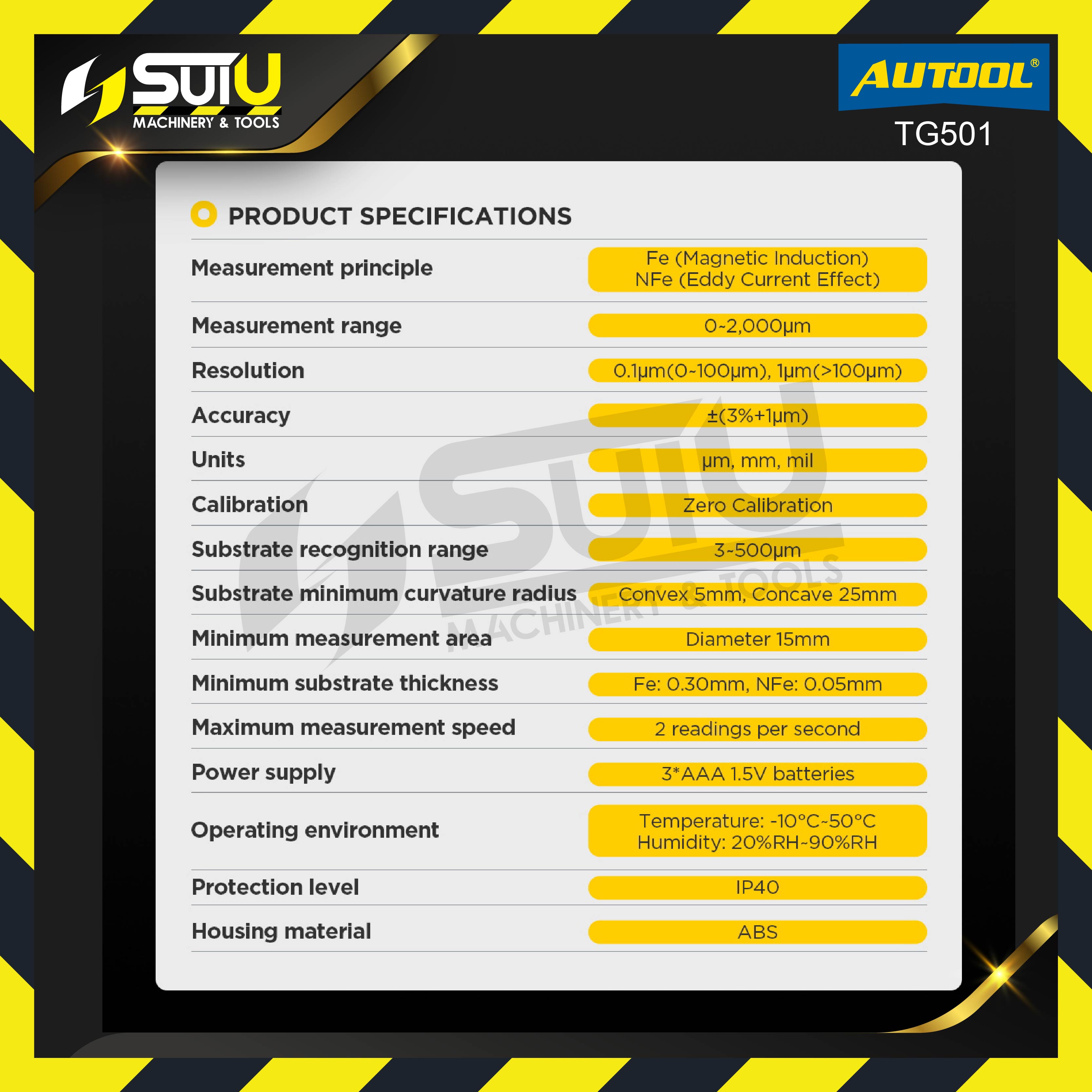

⭐️SPECIFICATIONS⭐️
- Measurement principle : Fe (Magnetic infudtion) / NFE (Eddy current effect)
- Measurement range : 0-2000μm
- Resolution : 0.1μm (0-100μm) , 1μm (>100μm)
- Accuracy : ±(3%+1μm)
- Units : μm , mm , mil

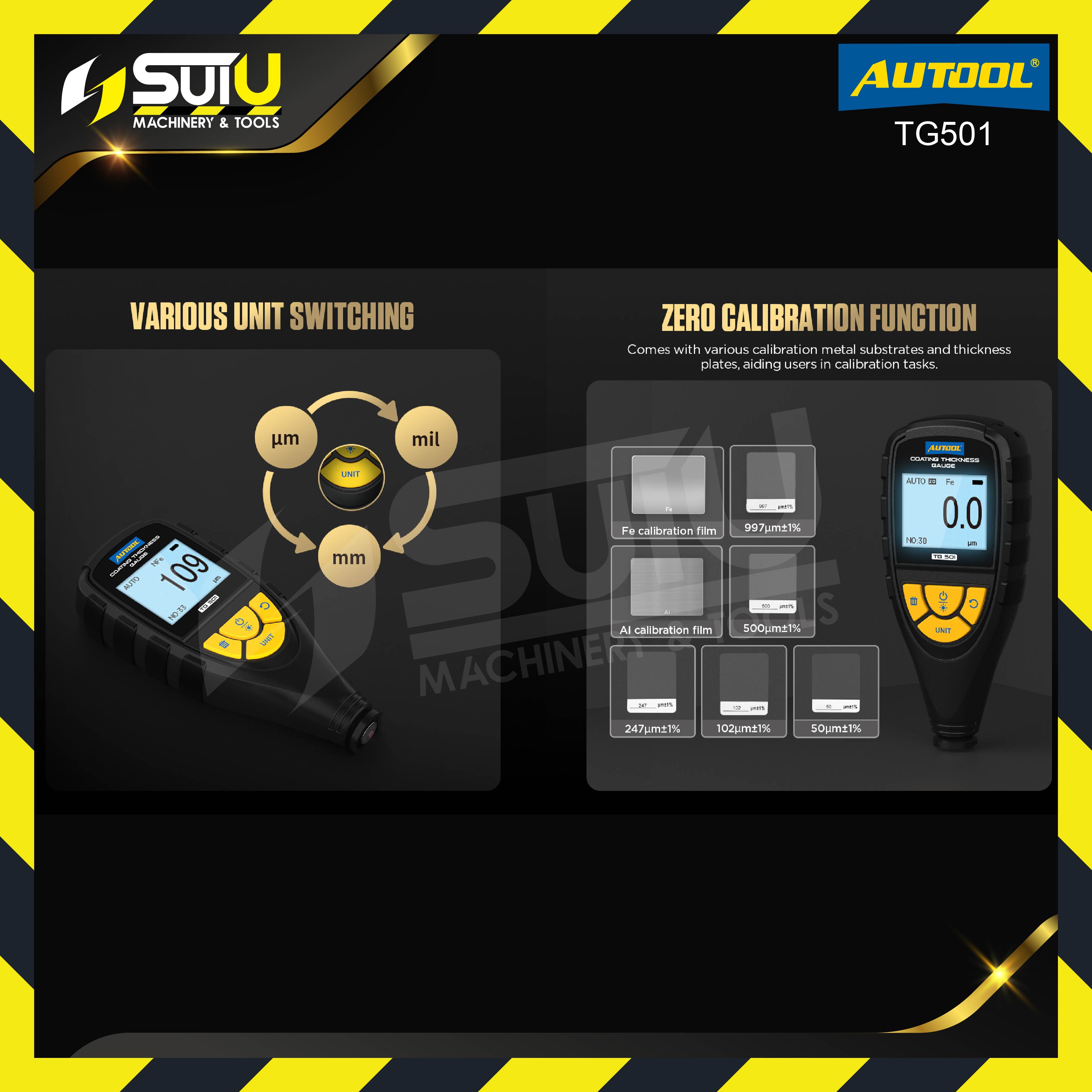

- Calibration : Zero calibration
- Substrate recognition range : 3-500μm
- Substrate minimum curvature radius : Convex 5mm , concave 25mm
- Minimum measurement area : Diameter : 15mm
- Minimum substrate thickness : Fe : 0.3mm , NFE : 0.05mm
- Maximum measurement speed : 2 readings per second
- Power supply : 3*AAA 1.5V batteries
- Operating environment : Temperature : -10°C ~ 50°C / Humidity : 20%RH - 90% RH
- Protection level : IP40
