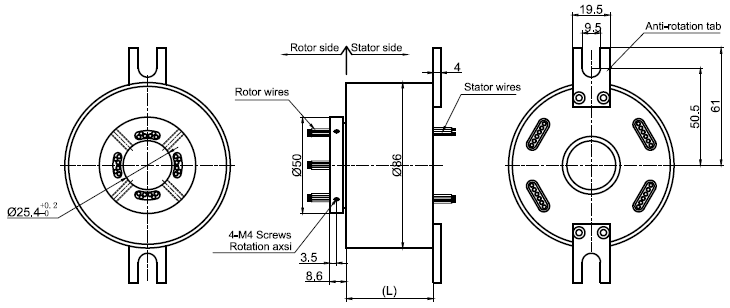

MT2586 series provides a 25.4mm through-bore for routing of hydraulic or pneumatic lines or
hydraulic or pneumatic rotating shaft installation, and a compact 86mm outside diameter,features long
life, fiber brush contact technology for ultimate performance in manychallenging applications.
MT2586 series are standard, off-the-shelf products, Color-coded lead wires are used onboth the stator
and rotor for simplified electrical connections.It can transmit signal(2A), 10A, multiple 10A current
when 360° degree free rotating.
Model :
.png)
.png)
