MT-Standard Slip Rings (MT2069 Series)

MT2069 series provides a 20mm through-bore for routing of hydraulic or pneumatic lines or hydraulic
or pneumatic rotating shaft installation, and a compact 69mm outside diameter,features long life, fiber
brush contact technology for ultimate performance in manychallenging applications.

MT2069 series are standard, off-the-shelf products, Color-coded lead wires are used onboth the stator
and rotor for simplified electrical connections.It can transmit signal(2A), 10A, multiple 10A current
when 360° degree free rotating.


Model :


• MT2069-S02
• MT2069-P0210
• MT2069-S03
• MT2069-P0310
• MT2069-S06
• MT2069-P0210-S04
• MT2069-P0410-S02
• MT2069-P0610
• MT2069-S12
• MT2069-P0210-S10
• MT2069-P0310-509
• MT2069-P0610-S06
• MT2069-P0810-S04
• MT2069-P1010-S02
• MT2069-P1210
• MT2069-S18
• MT2069-P0210-S16
• MT2069-P0410-S14
• MT2069-P0610-S12
• MT2069-P0810-S10

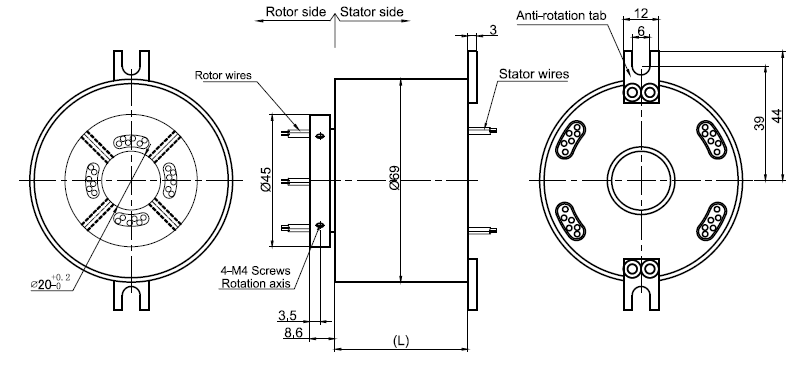

Dimension :

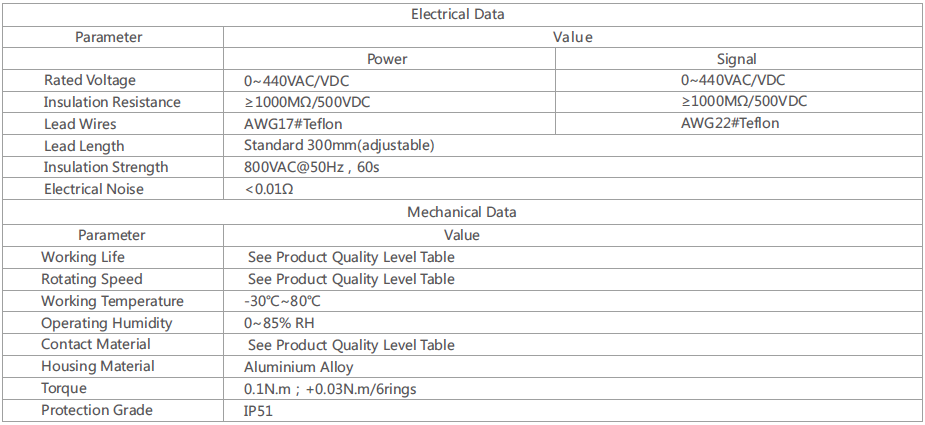

Specifications :
