MT-Standard Slip Rings (MT1256F Series)

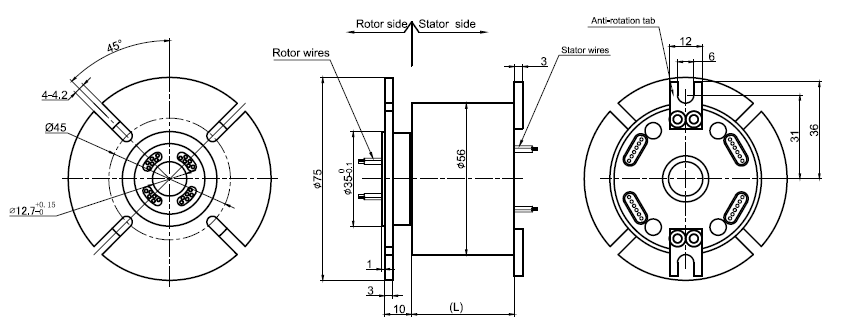

MT1256F series provides a 12.7mm through-bore for routing of hydraulic or pneumatic lines or
hydraulic or pneumatic rotating shaft installation, and a compact 56mm outside diameter,features long
life, fiber brush contact technology for ultimate performance in manychallenging applications.

MT1256F series are standard, off-the-shelf products, Color-coded lead wires are used onboth the
stator and rotor for simplified electrical connections.It can transmit signal(2A), 10A, multiple 10A
current when 360° degree free rotating.


Model :


• MT1256F-S02
• MT1256F-P0210
• MT1256F-S03
• MT1256F-P0310
• MT1256F-S06
• MT1256F-P0210-S04
• MT1256F-P0410-S02
• MT1256F-P0610
• MT1256F-S12
• MT1256F-P0210-S10
• MT1256F-P0310-S09
• MT1256F-P0610-S06
• MT1256F-P0810-S04
• MT1256F-P1010-S02
• MT1256F-P1210
• MT1256F-S18

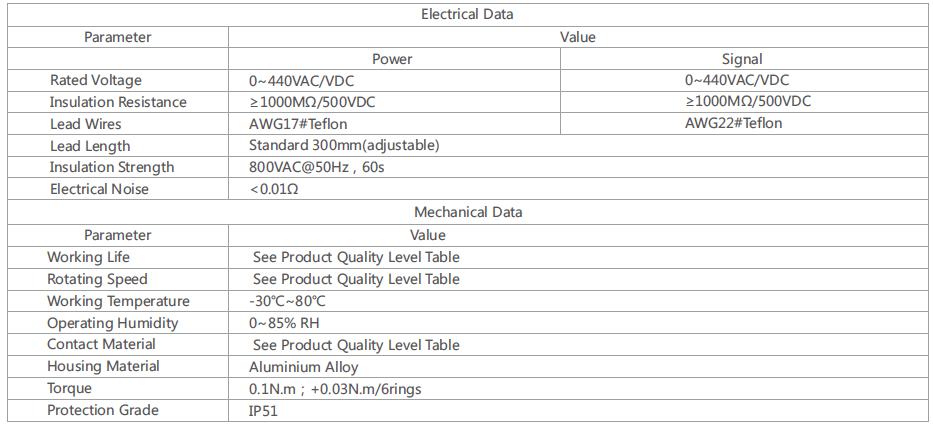

Specifications :
