MT2042 series provides a 20mm through-bore for routing of hydraulic or pneumatic lines or hydraulic
or pneumatic rotating shaft installation, and a compact 42mm outside diameter,features long life, fiber
brush contact technology for ultimate performance in manychallenging applications.
MT2042 series are standard, off-the-shelf products, Color-coded lead wires are used onboth the stator
and rotor for simplified electrical connections.It can transmit signal(2A), 5A current when 360° degree
free rotating.

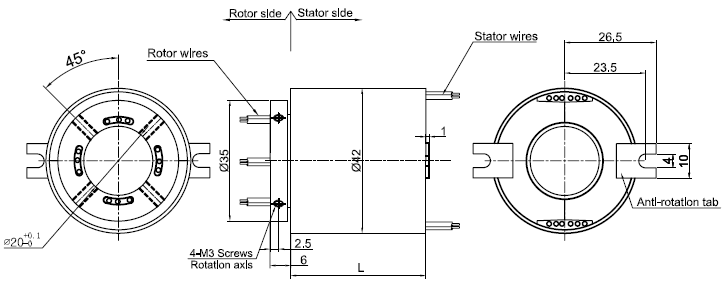

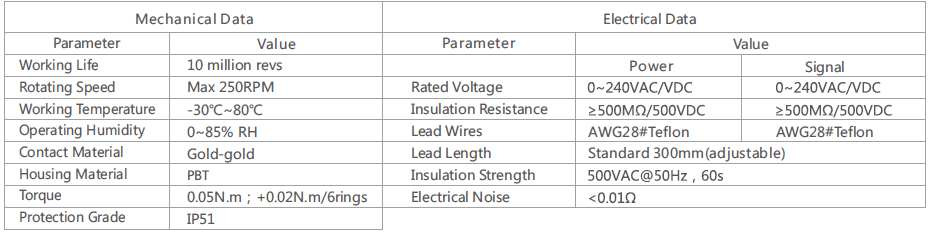

Model :
.png)
.png)
