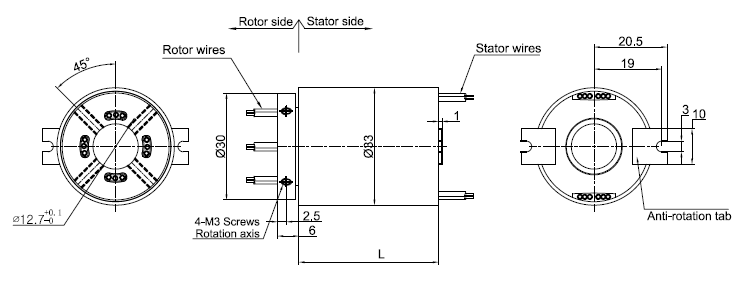

MT1233 series provides a 12.7mm through-bore for routing of hydraulic or pneumatic lines or
hydraulic or pneumatic rotating shaft installation, and a compact 33mm outside diameter,features long
life, fiber brush contact technology for ultimate performance in manychallenging applications.
MT1233 series are standard, off-the-shelf products, Color-coded lead wires are used onboth the stator

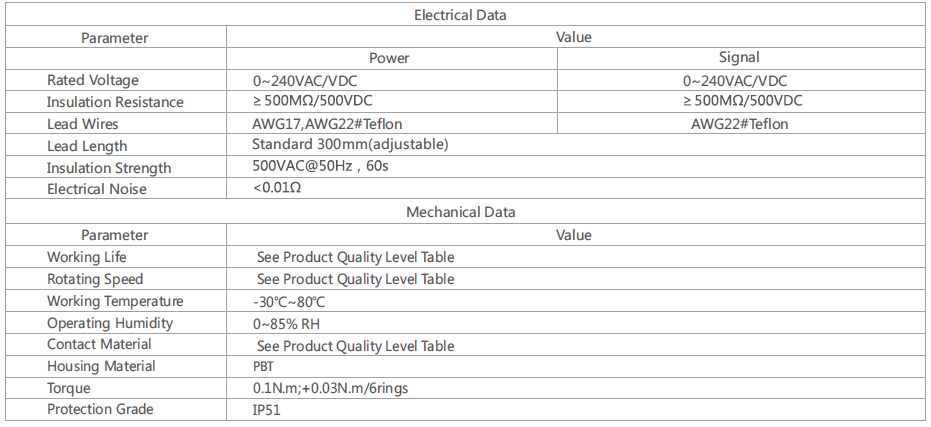

and rotor for simplified electrical connections.It can transmit signal(2A), 5A current when 360° degree
free rotating.
Model :
.png)
.png)
