MT-Standard Slip Rings (MT0729 Series)

MT0729 series provides a 7mm through-bore for routing of hydraulic or pneumatic lines or hydraulic
or pneumatic rotating shaft installation, and a compact 29mm outside diameter,features long life, fiber
brush contact technology for ultimate performance in manychallenging applications.

MT0729 series are standard, off-the-shelf products, Color-coded lead wires are used onboth the stator
and rotor for simplified electrical connections.It can transmit signal(2A), 5A current when 360° degree
free rotating.



Model :


• MT0729-S02
• MT0729-P0210
• MT0729-S03
• MT0729-P0310
• MT0729-S04
• MT0729-P0410
• MT0729-S06
• MT0729-P0210-S04
• MT0729-P0410-S02
• MT0729-P0610
• MT0729-S12
• MT0729-P0210-S10
• MT0729-P0310-509
• MT0729-P0410-S08
• MT0729-P0610-S06
• MT0729-P0810-S04
• MT0729-P1010-S02
• MT0729-P1210

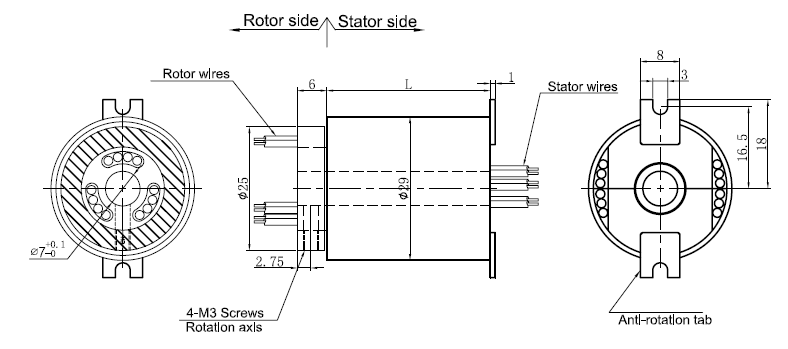

Dimension :

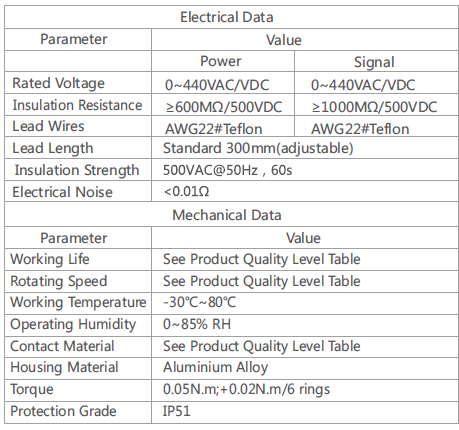

Specifications :
