MT-Standard Slip Rings (MT0317 Series)

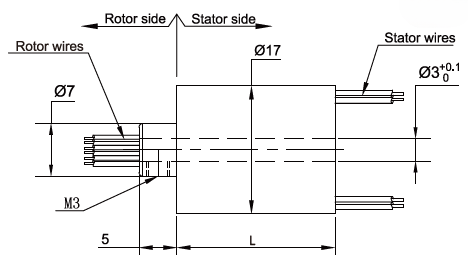

MT0317 series provides a 3mm through-bore for routing of hydraulic or pneumatic lines or hydraulic
or pneumatic rotating shaft installation, and a compact 17mm outside diameter,features long life, fiber
brush contact technology for ultimate performance in manychallenging applications.

MT0317 series are standard, off-the-shelf products, Color-coded lead wires are used on both the stator
and rotor for simplified electrical connections. It can transmit signal(2A), 5A current when 360° degree
free rotating.



Model :


• MT0317-502
• MT0317-503
• MT0317-504
• MT0317-506
• MT0317-508

• Uses fiber brush technology which offers several advantages over conventional
• slip ring contacts including multiple points of contact per brush bundle
• Bore size from 12.7 to 300mm
• Standard, off-the-shelf
• Gold plated ring and Gold alloy brush
• Support power,signals transmitting
• Rings combination is available
