Item
Table size - 152 x 460 mm
Max.Grinding length - 480 mm
Max.Grinding width - 168 mm
Standard magnetic chuck size - 150 x 450 mm
Max. Distance from spindle center to table - 460 mm
Spindle speed - 60hz 3450rpm / 50hz 2850rpm
Spindle power - 2.0hp
Hydraulic motor power - 1hp x 6p
Crossfeed motor power - 40w x 6p
Elevating motor power - 40w x 6p
Rated power approx. - 3.0 hp
Weight - 820 kg
Floor space - 1810 x 1133 x 1660 mm
Packing dimension - 1940 x 1400 x 1930 mm
Longitudinal Movement of Table
X axis travel hydraulic - 480 mm
X axis travel manual - 510 mm
Worktable variable travel - 60hz 5-28m/min / 50hz 5-23 m/min
Cross Transverse Travel
Z axis auto transverse increment - 1-10 mm
Z axis auto travel - 180 mm
Z axis manual travel - 195mm
Handwheel graduation - 0.02 mm
Handwheel revolution - 5 mm
Wheelhead Vertical Feed
Handwheel graduation - 0.005 mm
Handwheel revolution - 1 mm
Grinding Wheel
Diameter - 203 mm
Width - 12.7 mm, Max. 19mm
Bore - 31.75 mm

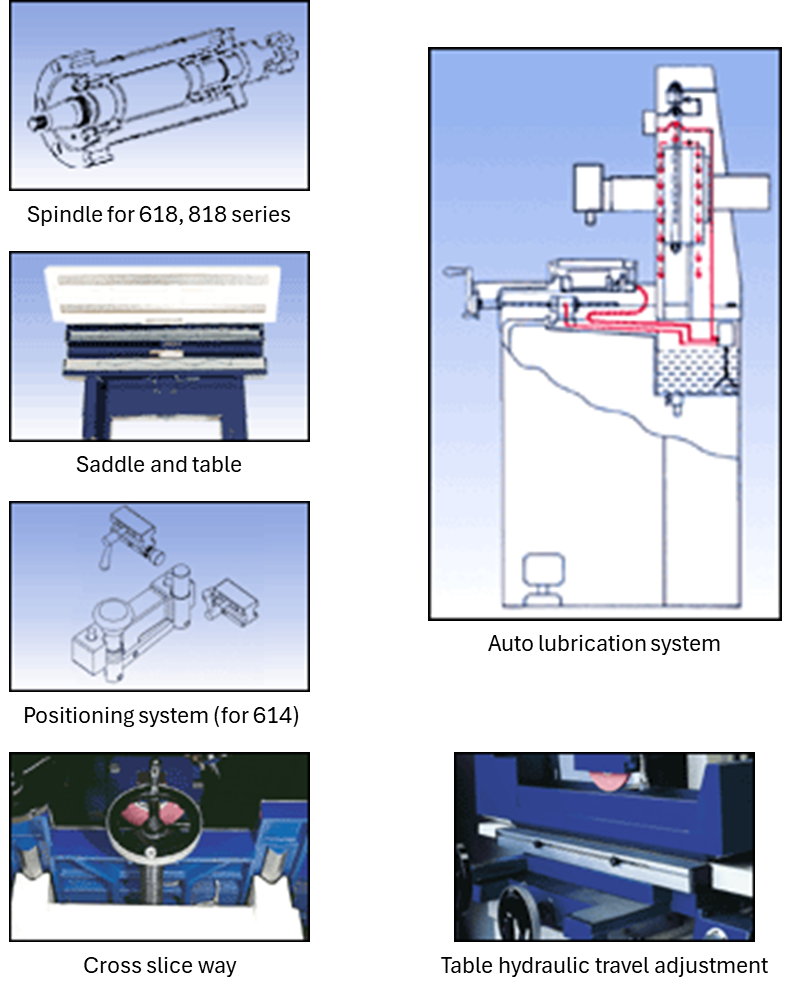

GENERAL FEATURES：
1.High precision cartridge wheel spindle
•High precision cartridge type spindle is supported by two preloaded precision angular contact ball bearings & one NN type roller bearing and driven by V3 class motor that allow high accurate griding performance.
(618 / 818 series aire driven by 2.0hp motor.)
2.High anti-wear guideways
•The saddle rests on precision hand-scraped double V ways, and the table rests on precision hand-scraped V and flat ways which coated with ''TURCITE-B''. There guideways are equipped with auto lubrication to rests wear of guideways, plus lasting accuracy and damping.
3.High rigid casting construction
•Machines are casted with high grade casting iron with heavy walls and reinforced ribs to provide excellent rigidity and damping.
4.Enlarged column and base
•Enlarged column and base create high stability and rigidity. The height of column is increased up to 18'' (460mm) from table surface to the center line of spindle.
5.Auto lube system
•Automatic lubrication system is applied as standard to ensure sufficient lubrication at lead-screws and guideways for more longevity.
6.Longitudinal & cross drive
•For all models,except 618 & 818 handfeed, the longitudinal movement is driven by hydraulic system; for 2A, 3A, ASD series, the cross movement is driven by motor for more accurate increment feeding.
