KROHNE WATERFLUX 3300 Electromagnetic flowmeter for advanced water applications

TECH IMPRO AUTOMATION SOLUTION SDN BHD

Category: Flowmeter Available

For more information, visit our official website at improtechonline.com

Visit Official Site Contact Us

Description

Overview

The WATERFLUX 3300 is an electromagnetic flowmeter (EMF) for demanding water applications and custody transfer operations (MID MI-001, OIML R49; MI-004). The high-end meter is particularly suitable for applications requiring high accuracy and extensive diagnostics. With its rectangular and reduced cross-section the EMF enables a stable measurement even at low flow rates. This way, the WATERFLUX 3300 offers a much larger turndown ratio (1000:1) than mechanical flowmeters (e.g. turbine meters) in drinking water distribution networks.

Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

Bi-directional flow measurement over a wide dynamic range
Unique rectangular sensor design for good low flow performance
Available with patented reference electrode: no grounding rings needed
Only ±0.2% or ±1mm/s error of measured value (MV)
Extensive sensor and process diagnostics (incl. NE 107)
No need for measurement chambers
Rilsan® coated sensor tube
Meets potable water standards: ACS, DVGW, NSF, TZW, WRAS etc.
With CT approval for heat meter applications (MID MI-004)
Maintenance-free: no moving parts, obstruction or wear
Compact, rack or field mounted version
On-site verification of flowmeter with OPTICHECK service tool

Specifications

Depending on selected device configuration

General information

Product type	Flowmeter
Product family name	WATERFLUX
Product positioning	For advanced water and custody transfer (CT) applications
Measurement principle	Electromagnetic
Measured media	Liquids

Operating conditions

Process pressure	max. 16 barg/ 230 psig
Process temperature	-5…+70°C/ +23…+158°F

Materials

Liner	Polyamide polymer 11 (Rilsan®)

Process connections

Flange connections	EN (1092-1): DN25…600 ASME (B 16.5): 1…24'' JIS (B 2220): 25…600A
Thread connections	Male: G1, G1½, G2

Approvals/Standards

Certificates/Approvals Custody transfer (CT)	MI-001, MI-004, OIML R49
Certificates/Approvals Marine	ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS
Certificates/Approvals Potable Water	DVGW, NSF, TZW, KTW, WRAS, KIWA, ACS

Communication

Analogue outputs	4…20 mA
Discrete outputs	Limit switches, Pulse, Frequency, Status
Digital outputs	FOUNDATION™ fieldbus, HART®, Profibus-PA, Profibus-DP, Modbus RTU, PROFINET

Videos

Diagnostics in electromagnetic flowmeters

Grounding of EMF-flowmeters

PROFINET

myDevice

OPTICHECK

Exchange of water meters with different lengths

KROHNE Water & Wastewater

Online planning tool for the creation of tender texts

PICK briefly explained - Digital access to the manufacturer documentation of your KROHNE devices

Adjustment of the measured value pages of the transmitter

GFC 300, IFC 100 | 300, MFC 300 | 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Adjustment of the units at the transmitter

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Bi-directional flow detection (1x current)

GFC 300, IFC 300, MFC 300 | 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Bi-directional flow detection (1x current 1x status)

GFC 300, IFC 300, MFC 300 | 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Bi-directional flow detection (2x current)

GFC 300, IFC 300, MFC 300 | 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Changeover current output 4-20 mA to 0-20 mA

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Coil temperature/coil resistance calibration

IFC 050 | 100 | 300

Explanation/Connection Current output

GFC 300, IFC 300, MFC 300 | 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Explanation/Connection Frequency output

GFC 300, IFC 300, MFC 300 | 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Explanation/Connection Pulse output

GFC 300, IFC 300, MFC 300 | 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Explanation/Connection Status output

GFC 300, IFC 300, MFC 300 | 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Installation GDC Data Logger

GFC 300, IFC 300, MFC 300 | 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Parameterization current output

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Parameterization frequency output

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Parameterization pulse output

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Parameterization status output

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Parameterization status output as limit switch

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Prametrization pipe detection

IFC 050 | 100 | 300

Setting the measuring range on the display (quick setup)

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Zero point calibration

GFC 300, IFC 050 | 100 | 300 | 400, MFC 400, UFC 300 F V2 | W V2 | 400 V1 | V2

Links

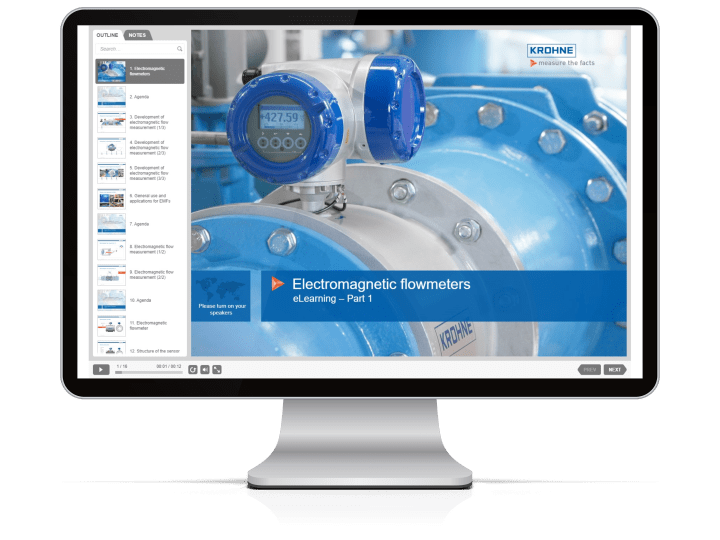

KROHNE Academy Online

This course deals with the principle of electromagnetic flow measurement, the construction of electromagnetic flowmeters and all relevant areas.

View free eLearning course (External link)

Accessories

OPTICHECK Master

Handheld for in-depth verification, device commissioning and monitoring

On-site performance check and verification (level 0,1,2) without process interruption
Convenient commissioning of field devices, e.g. zero calibration
Detailed reports for proof test documentation of safety loops acc. to IEC 61508/61511, and for quality management systems (ISO 9001)

View product details

OPTICHECK DTM

DTM for advanced device verification and commissioning

Usable with any FDT frame application from the control room or on site
Advanced verification (level 0,1) without process interruption
Detailed reports for proof test documentation of safety loops acc. to IEC 61508/61511, and for quality management systems (ISO 9001)

View product details

Applications

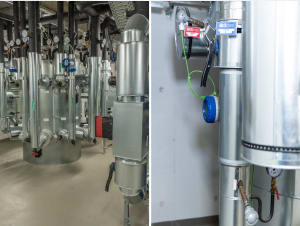

Enhanced energy measurement for a facility heating and cooling system

Application Report | Heating, Ventilation & Air Conditioning

Carbon-friendly air conditioning concept for office and manufacturing buildings
Energy savings through continuous monitoring and optimisation of energy and heat flows
Dedicated energy measurement setup consisting of flowmeters with paired temperature sensors and energy calculators

View this article

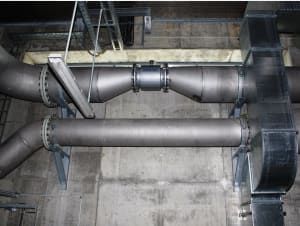

Flushing water measurement for filter regeneration in a waterworks

Application Report | Water & Wastewater

Electromagnetic flow measurement in large pipelines (DN 700 / 28'') without inlets/outlets
Volume and flow velocity monitoring to control flush programs
Protection of activated carbon and multi-layer filters through targeted adaptation of flush behaviour

View this article
