Signal isolation：Power supply；Analog input
3 groups of analog output
1 set RS-485 output
Accuracy：±0.05% of span ±0.0025% / °C
Output signal：4 ... 20 mA, DC 0 ... 10 V
Description
| Power | Power supply | AC 95 ... 250 V, DC 12 ... 38 V |
| Power consumption | 10 VA, 5 W maximum | |
| Signal input | Type |
Thermocouple(J, K, T, E, B, R, S, N, L, U, P, C, D), RTD(Pt100(DIN), Pt100(JIS)), current(mA), voltage(V) |
| Sampling rate | 5 Times / Second(200 msec) | |
| Temperature effect | 1.5 μV / °C for all inputs except mA input, 3.0 μV / °C for mA | |
|
Sensor lead resistance effect |
Thermocouple：0.2 μV / Ω ; 3-wire RTD：2.6°C / Ω of difference of resistance of two leads 2-wire RTD：2.6°C / Ω of sum of resistance of two leads |
|
| Burn-out current | 200 nA | |
|
Common mode rejection ratio(CMRR) |
120 dB | |
|
Normal mode rejection ratio(NMRR) |
55 dB | |
| Sensor break detection |
Sensor open for thermocouple, RTD and mV inputs, sensor short for RTD input, below 1 mA for 4 ... 20 mA input, below DC 0.25 V for DC 1 ... 5 V input, not available for other inputs |
|
|
Sensor break response time |
within 4 seconds for thermocouple, RTD and mV inputs, 0.1 second for 4 ... 20 mA and DC 1 ... 5 V inputs |
|
|
Analog retransmission output 1 output 2 output 3 |
Number of outputs | 3 |
| Output signal | 4 ... 20 mA, DC 0 ... 10 V | |
| Accuracy | ±0.05% of span ±0.0025% / °C | |
| Load resistance | 0 ... 500 Ω for current output, 10 KΩ minimum for voltage output | |
| Output regulation | 0.01% for full load change | |
| Output setting | Time 0.1 second(Stable to 99.9%) | |
| Isolation breakdown | AC 1000 V minimum | |
| Integral linearity error | ±0.005% of span | |
| Temperature effect | ±0.0025% of span / °C | |
|
Data communication |
Interface | RS-485 |
| Protocol | Modbus RTU(Slave mode) | |
| Address | 1 ... 247 | |
| Baud rate | 2.8 ... 115.2 KBPS | |
| Parity bit | None, even or odd | |
| Stop bit | 1 or 2 bits | |
| data length | 7 or 8 bits | |
| Communication buffer | 160 bytes | |

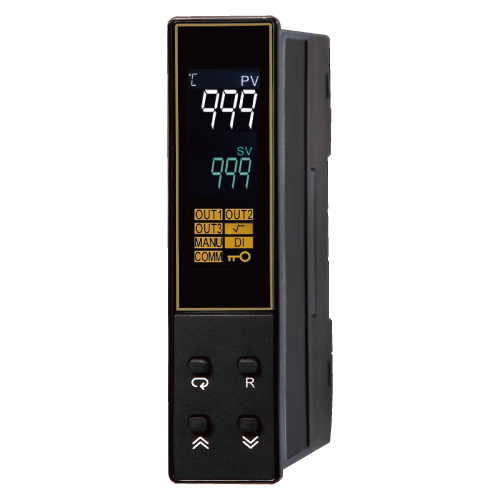

| User interface | Key / Display |
Keypad：4 keys 4 Digit LCD display；No of display 2 Upper：0.58”(15 mm)；Lower：0.3”(7.8 mm) |
| Digital filter | Function | First order |
| Time constant | 0, 0.2, 0.5, 1, 2, 5, 10, 20, 30, 60 seconds, programmable | |
|
Environmental and physical specifications |
Temperature | Operating：-10 ... 50°C；Storage：-40 ... 60°C |
| Humidity | 0 ... 90%RH(Non-condensing) | |
| Altitude | 2000 meters maximum | |
| Pollution | Degree II | |
| Insulation resistance | 20 MΩ minimum(at DC 500 V) | |
| Dielectric strength | AC 2000 V, 50 / 60 Hz for 1 minute | |
| Vibration resistance | 10 ... 55 Hz, 10 m/s2 for 2 hours | |
| Shock resistance | 200 m/s2(20g) | |
| Dimensions / Weight | W22.5xH96xD83 mm / 160g | |
|
Approval standards |
IP rating | IP65 for panel(in process), IP20 for terminals and housing(Indoor) |
| EMC | EN61326 |
