Stainless Steel Trefoil Cable Cleats: Top Choice in Malaysia, Kuala Lumpur (KL), Selangor Delta Sama Jaya Sdn Bhd

Description

Flyers

STAINLESS STEEL TREFOIL CABLE CLEATS

Product Description

The Stainless Steel Trefoil Cable Cleats are to be used when highest level of protection in extreme environments and under a high short circuit fault are required.

** Approved by DNV(Det Norske Verltas) and ABS(American Bureau of Shipping).
** Support and retain the cables and conductors within the cable tray system
** Prevent damage in short-circuit condition.
** Reduce the mechanical load exerted to the cable and conductors in every conditions.
** Designed for use within industrial and hazardous areas, as well as specialist applications.
** Maximum operating temperature of 120° C.

Product Specification

Item Code	Cable Diameter (mm)
	Min. Diameter		Max. Diameter (mm)
	mm	in.	mm	in.
FF-T1323	13	0.51	23	0.91
FF-T2125	21	0.83	25	0.98
FF-T2329	23	0.91	29	1.14
FF-T2531	25	0.98	31	1.22
FF-T2733	27	1.06	33	1.30
FF-T2935	29	1.14	35	1.38
FF-T3238	32	1.26	38	1.5
FF-T3541	35	1.38	41	1.61
FF-T3844	38	1.50	44	1.73
FF-T4248	42	1.65	48	1.89
FF-T4551	45	1.77	51	2.01
FF-T4753	47	1.85	53	2.09
FF-T4955	49	1.93	55	2.17
FF-T5157	51	2.01	57	2.24
FF-T5359	53	2.09	59	2.32
FF-T5561	55	2.17	61	2.40
FF-T5763	57	2.24	63	2.48
FF-T5965	59	2.32	65	2.56
FF-T6167	61	2.40	67	2.64
FF-T6369	63	2.48	69	2.72
FF-T6571	65	2.56	71	2.80
FF-T6773	67	2.64	73	2.87
FF-T6975	69	2.72	75	2.95
FF-T7177	71	2.80	77	3.03
FF-T7379	73	2.87	79	3.11
FF-T7581	75	2.95	81	3.19
FF-T7783	77	3.03	83	3.27
FF-T7985	79	3.11	85	3.35
FF-T8187	81	3.19	87	3.43
FF-T8389	83	3.27	89	3.50
FF-T8896	88	3.46	96	3.78
FF-T96103	96	3.78	103	4.06
FF-T103111	103	4.06	111	4.37
FF-T111119	111	4.37	119	4.69
FF-T119128	119	4.69	128	5.04

- Actual product may vary due to product enhancement.
- M6 / M12 / without bolt option is available upon request.

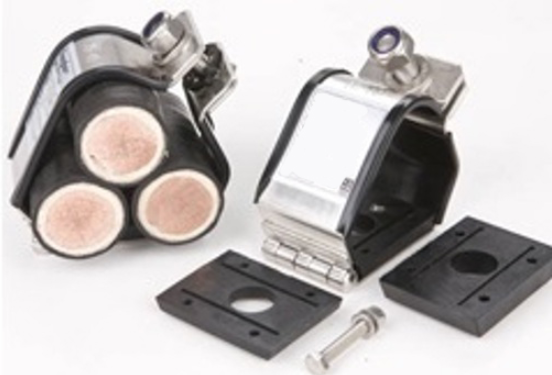

Product Image

Click here for more photos
