Description
Description
AN-E1-RS485 is E1 G.703 to RS485 converter that realizes data conversion between ITU-T G.703 standard E1 G.703 and 1 x RS485 interface. Date interface mode is DCE, could connect to DTE or DCE device, RS485 can transmit asynchronous 0~115200Kbps self-adapting speed.
Features
-
AN-E1-RS-485 can realize long-distance monitoring of this end equipment to the far-end equipment (two-row indicator, upper row indicate local status, lower row indicate far-end status);
-
RS485 rate support 0~115200Kbps self-adapt
-
RS485 support hot-plug, connection to DTE or DCE device;
-
Offers 2 kinds of loop-return function, namely E1 self-looping at local end (ANA) and RS485 self-looping at local end (REM)
-
AC220V and DC-48V for option, and DC-48V is not divided into positive and negative pole with simple installation and maintenance;
-
Supports function of pseudo-random code testing(PATT), which brings great convenience for installation, debugging and maintenance of equipment;
-
E1 interface supports 75Ω unbalanced and 120Ω balanced impedance at the same time;
-
Realizes SNMP network management function in our chassis installation
Specification
RS485 interface:
Interface character: match RS485
Interface Rate: 0 – 115.2Kbps
Connector: RJ-45
Interface type: DCE or DTE
E1 interface parameter:
-
Channel capacity: 1 Channels
-
Bit Rate: 2.048 Mb/s ±50 ppm
-
Line Code: HDB3
-
Line Impedance: 120 Ohm / 75 Ohm
-
Connector: RJ-45 or BNC
-
Pulse Shape: ITU-T G.703.
-
Jitter Performance: ITU-T G.823
-
clock: inter-clock, line-clock
Power:
-
DC: -48V (-36 to -72V); +24 V (Optional)
-
AC: 90 to 260 VAC ; 47 ~ 63Hz
-
Power Interface: DC power terminal/AC socket
-
Power Consumption: 8 W maximum
Working environment:
-
Operating temperature: 0 to 50 °C
-
Storage temperature: -20; to +70 °C
-
Relative humidity: 5% to 90% (25 °C no condense)

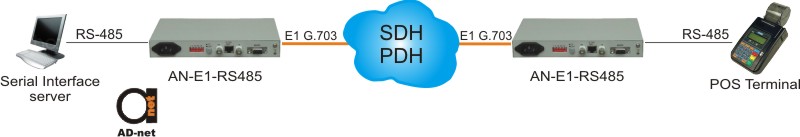

Application scenario:
Ordering Information
AN-E1-RS-485
E1 G.703 to RS-485 serial converter, unframed E1, 48 VDC or 96-260 AC, all country power plugs supported
