SHINING 3D Automation Solutions deliver high-efficiency, high-consistency 3D digitization for modern manufacturing. By integrating advanced 3D scanning technologies with robot arm, controller base, and turntable, we provide end-to-end automated solutions for batch inspection, in-line measurement, quality control, and digital traceability.

Product Overview

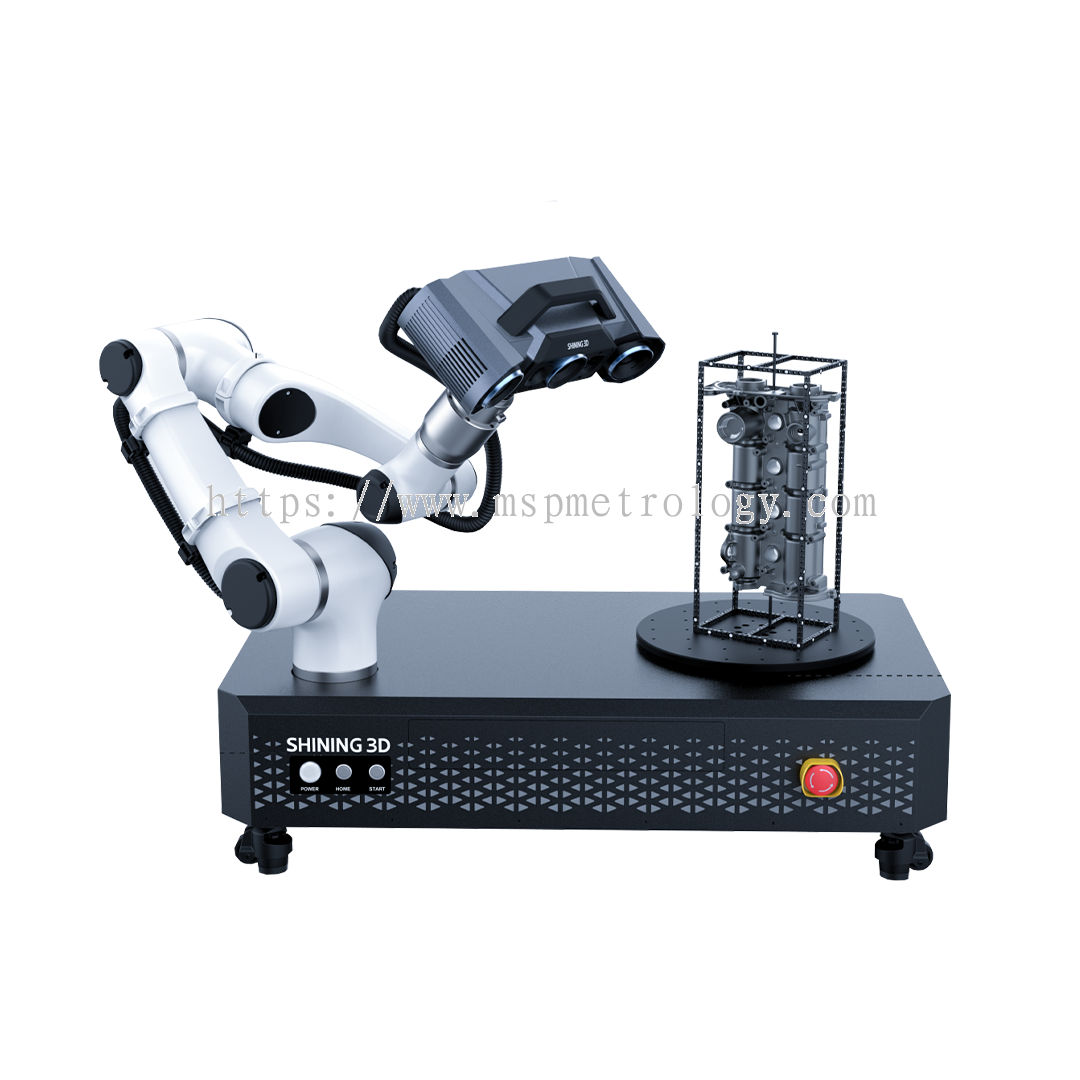

RobotScan Series

RobotScan series is engineered for replacing manual operations with robotic automation. It enables fully automated and standardized 3D scanning to rapidly acquire precise geometric data and automatically generate detailed inspection reports.

The system supports customized configurations for specific inspection needs and integrates with MES systems for real-time feedback and secure data management, enhancing the efficiency and quality of intelligent manufacturing.

Modular Design for
Flexibility and Scalability

Multi-System Integration

High-Accuracy Full-Field 3D Measurement

Streamlined Operation & Installation

High Efficiency Inspection

Standard Automation Solutions

The standardized automation solution of RobotScan Series is designed to meet the typical inspection demands in modern manufacturing. It supports both high-precision fringe projection scanners and handheld laser scanners.

RobotScan Q12

Fine-detail components such as airfoils, brackets, connectors, gears, housings, and electronic components
Designed sensor for small-sized part measurement with complex surfaces, geometries, or sharp edges
Suited for a wide range of tasks, like injection molding, die casting, investment casting, and CNC parts
Automated optical 3D measurement solution with high repeatability
High efficiency for mass-production inspection
Fringe projection technology with the best accuracy and high detailed data

RobotScan UE Pro2

Small and medium sized sheet metal parts, casting housing, machining parts, mold components
Strong material adaptability , especially on black, shiny, and reflective surfaces
Suited for a wide range of tasks, like die casting, stamping, and machining parts
Wireless and Wired connectivity for flexible on-site installation
Automated optical 3D measurement solution with high accuracy and high efficiency
Handheld laser technology for various shopfloor environments

RobotScan Combo+

Batch inspection of the small-to-medium-sized castings and machined parts
Mixed-size components such as covers, trim pieces, assemblies, medium castings
Cost-effective automated 3D scanning across varied parts

Control & Inspection Software

RobotScan Control

RobotScan Control is a professional automation software purpose-built for industrial applications. It enables direct control of collaborative robot arms, servo turntables, and 3D scanners to execute the complete workflow - from path programming to 3D scanning and inspection. Featuring a process-oriented interface, the software offers intuitive operation and a low learning curve, greatly improving automation efficiency and stability.

SHINING3D Inspect

SHINING3D Inspect is an industrial inspection software certified by PTB for measurement accuracy. It processes high-accuracy 3D scan data to perform detailed 3D comparison, measurement, and inspection report generation. The software delivers reliable, traceable inspection results that meet the stringent demands of modern manufacturing and quality control.

RobotScan Series Technical Data

Specification	Value	Specification	Value
Measurable object size	≤ 500 mm	Turntable load capacity	≤ 20 kg
Robot type	Cobot, Huayan Robotics	Robot working radius	800 mm
Dimensions	1030 × 670 × 270 mm	Weight	70 kg
Power supply	100 – 240V (Single-phase, 10A)	Safe working space	2400 × 2400 × 1600 mm

Customized Solutions

RobotScan series also offers a fully customizable configuration to meet the diverse 3D measurement needs of multiple industries. Components such as different brands of robotic arm, SHINING 3D scanner, turntable, fixtures, and control and inspection software can all be tailored to specific application requirements.
