Freshliance — Single-Use USB Temperature Data Logger with Alarm & Marking

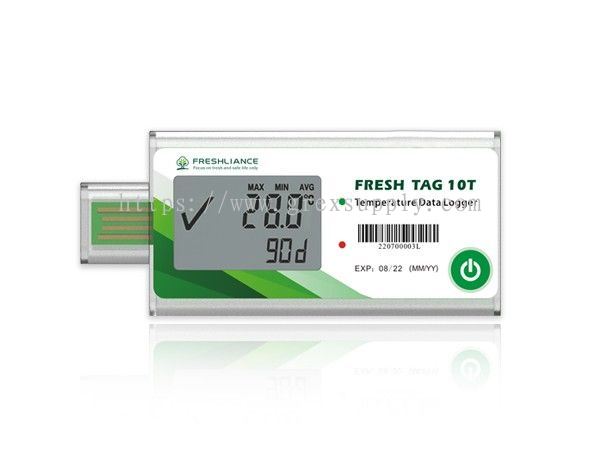

Fresh Tag 10T is a single use temperature data logger. This temp data logger is designed for monitoring and recording the temperature changes of sensitive products during their transportation and storage. They can be widely used in each stage of cold chains, such as refrigerated containers, refrigerated trucks, cooler bags, cooling cabinets, medical cabinets, freezers, and laboratories.
This series of temperature dataloggers feature a large LCD screen for intuitive display. The USB temperature data recorder can work for up to 120 days. Parameters can be configured on our free configuration software. After the trip is finished, connecting this logger to the computer, then PDF/CSV/PDF&CSV reports will be generated automatically without using the software.
| Model | Fresh Tag 10T |
|---|---|
| Type of use | Single use |
| Temperature range | −30°C ~ +70°C |
| Temperature accuracy | ±0.5°C F.S. |
| Logging interval | 1 minute ~ 24 hours, user configurable |
| Connection | USB, NFC (optional) |
| Start delay | 0 minute ~ 24 hours, user configurable |
| Protection grade | IP65 |
| Memory capacity | Max. 65,000 readings |
| Battery | CR2032 |
| Display | LCD, LED |
| Battery life | Max. 120 days |
| Alarm points | Max. 6 alarm points |
| Marks | Max. 9 marks |
| Dimensions | 94 × 41 × 8 mm (L×W×H) |
| Weight | 27.5 g |
| Compatible O/S | Windows/Mac OS |
| Certificates | CE, RoHS, EN12830 |
Its parameters can be preset according to your needs on our free configuration software.
Users can set up to 6 alarm points before start and make up to 9 marks during the recording trip.
This USB temperature logger can work for up to 120 days. And its memory capacity can reach up to 65,000 readings.
This single use temperature recorder has a compact profile and lightweight design, but the LCD screen accounts for a large proportion. It can intuitively display Max./Min./Average Value, Alarm time, Remaining Days, etc. Moreover, its green and red LED lights can indicate its different status.
The small and light disposable USB thermograph can be placed anywhere. It requires no software or drivers to set up or download data.
Once the temperature is out of the configured alarm range, this single use temperature data logger will alarm through the alarm symbol on the LCD screen and the red LED light will flash.
After the trip is finished, connect the USB temperature logger to the computer, the irreversible reports with graphs and tables will be generated automatically, with no cable or reader required. Temporary report is available.
Fresh Tag 10T single use temperature data logger is important to cold chain transportation for perishable products, especially food products. The non-breaking cold chain could guarantee food products maintain high quality and optimum shelf life.
For meat and fish products, also called frozen food, it is very important to keep the growth of microbes as low as possible by maintaining temperature threshold values.
For fruits and vegetables, the most important thing is to prevent them from ripening too early. Fruits, vegetables, and flowers are highly perishable commodities that require proper environmental monitoring in post-harvest processing to maximize freshness, quality, and shelf life from the field to the table.
The environmental condition of temperature-sensitive products must be carefully monitored and documented during handling and storage, to ensure food safety, quality, and longer shelf life, especially for highly perishable products such as produce, dairy, seafood, meat, poultry, and floral product.
The data recording by these USB temperature data loggers is the necessary evidence for the product owner and the cold chain carrier if the cold chain performance objection is required.
Freshliance provides all kinds of temperature data logging or temperature and humidity data logging solutions to make sure every change in the whole cold chain solution will be traced and recorded. Irreversible PDF logging, CSV temperature history, and online IoT logging in any format are available.
