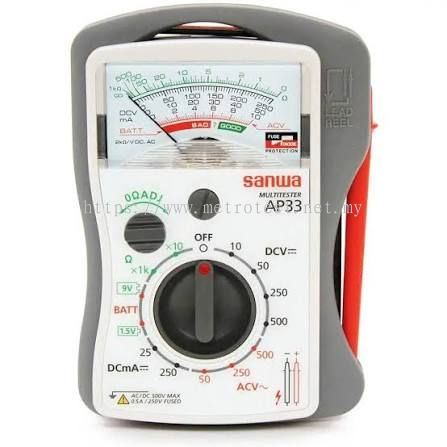

The Sanwa AP33 Analogue Multimeter is a thin and compact device designed for convenient, pocketable use. This multitester is robust and versatile, offering essential measurement functions for DC and AC voltage, current, and resistance. Its nylon-woven test leads ensure durability by reducing the likelihood of wire damage caused by winding or pulling.
With a built-in shock-absorbing rubber case, the AP33 is designed to withstand drops, making it highly durable and suitable for fieldwork. Additionally, its battery check function provides dual ranges for 1.5V and 9V, making it ideal for testing a variety of battery-powered devices.
| Function | Measuring Range | Tolerance |
|---|---|---|
| DC Voltage (DCV) | 10/50/250/500 V (2 kΩ/V) | ±5% of full scale |
| AC Voltage (ACV) | 50/250/500 V (2 kΩ/V) | ±5% of full scale |
| Battery Check | 1.5V / 9V | – |
| DC Current (DCA) | 25 mA / 250 mA | ±5% of full scale |
| Resistance | 10 kΩ / 1 MΩ | ±3% of arc |
| Frequency Characteristic | AC 50V range or lower (40 Hz to 10 kHz) | Frequency response within ±3% |
| Parameter | Details |
|---|---|
| Battery | R03 (AAA battery) × 1 |
| Built-in Fuse | F0301 Φ5x20mm 0.5A/250V 300A Glass Fuse |
| Size | H126 × W87 × D30 mm |
| Mass | Approx. 185 g |
| Test Lead Length / Pin Tip | Approx. 0.6 m / 13 mm |
