PPL Series 600W Variable Precision Programmable DC Electronic Load 150V 60A 150V 120A 500V 30A: Pilihan Utama di Malaysia, Penang, Singapore, Indonesia Hexo Industries (M) Sdn Bhd

Penerangan

4 basic functions: CC, CV, CR, CP
9 basic operation modes: CCL, CCH, CVL, CVH, CRL, CRM, CRH, CPV, CPC
24-bit A/D converter and 16-bit D/A converter, 40kHz D/A conversion speed, high resolution & high speed
Hardware circuit for CR function, faster transient response and higher CR accuracy
High speed transient test function, max. test frequency 2kHz
Over current, over voltage, over power, over temperature and reverse voltage protections
4.3-inch backlit Segment LCD display
High speed rotary dial and keypad input
Auto ON/OFF function
List Mode function, step 10ms-99999s, free to set numbers of cycles and to be linked to other lists
Auxiliary functions: short circuit test, battery discharge capacity test
Save & recall function for frequently used setups, max 100 groups
Intelligent cooling system, ensure high stability during long-time operation under full load
Standard RS-232 interface, support SCPI commands, support Labview
Optional RS-232 to USB cable

Details

PPL series are high performance programmable DC electronic load. Four basic functions and nine basic operation modes provides sufficient solutions wherever power sources need to be tested. Especially unique CPV and CPC modes greatly improved the functionality of constant power operation. The strong List Mode function, with Min. step 10ms and Max. step 99999s, allows users to set numbers of cycles at free and to link to other lists, facilitating complicated tests. Equipped with RS-232 interface for PC control, SCPI commands and Labview development platform, the PPL series are designed to provide high reliability, great performance and easy operation in research and production of aerospace, ship building, auto electronics, solar battery, fuel cell, etc.

Hot models

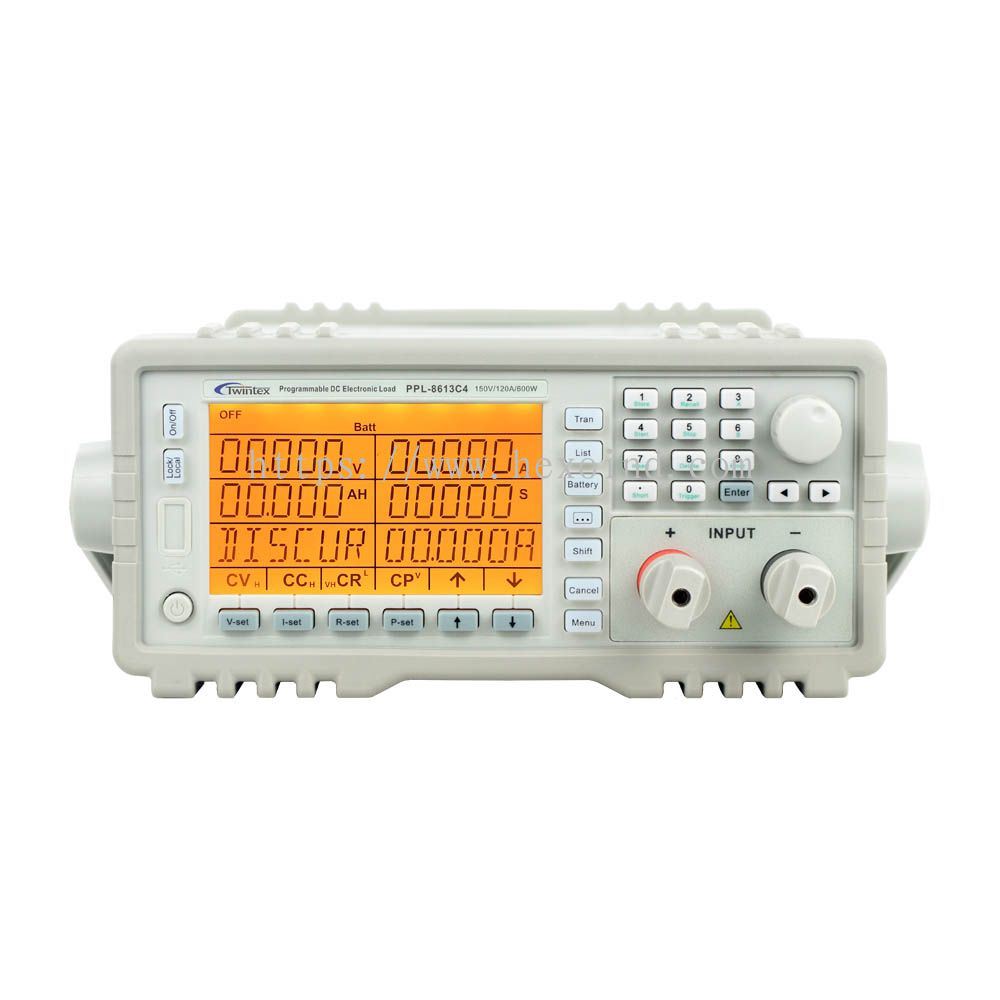

PPL-8613C4: Variable Programmable DC Electronic Load, 150V 120A, 600W
