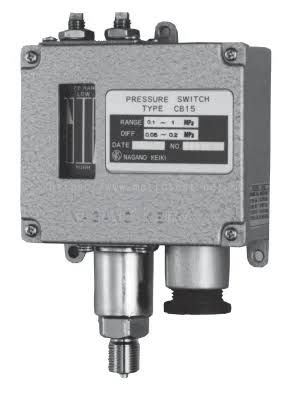

NKS - CB15 Pressure Switch
Brand : Nagano Keiki
Model : CB15
Product Description
This pressure switch is suitable for direct control of field equipment by designing and manufacturing with a focus on durability and reliability.
It has a stable switching by snap actions of the microswitch.
Features
e External adjustment of set value and dead band can easily be performed.
e The dead band can be selected either adjustable or fixed according to use.
e The setting scale is without divisions as standard or with divisions optionally.
Specification
| Item | Description |
| Fluid | Gas or Liquid (No freezing) |
| Operating environment | Places where there are no inammable liquids or gases which may cause ignition or explosion under normal conditions. |
| Mounting | Panel mounting |
| Connection | G3/8B, G1/2B, R3/8, R1/2, 3/8NPT, 1/2NPT Please contact us about connection without the description. |
| Wetted parts material | General use Corrosion-proof use Bellows: C5212R Bellows: SUS316L Tank, socket: C3771 Tank, socket: SCS14 Available up to 5MPa range. |
| Pressure range | 0.01 to 0.1 → 1 to 10 MPa |
| Proof pressure | 0.15 to 15 MPa (Depends on the pressure range.) |
| Operating temperature | -5 to 40 |
| Accuracy | ±1max.P., two contact (simultaneous operation): ±1max.P. |
| Setting accuracy (Option) | ±3max.P. (Setting scale divisions type) |
| Dead band | Specication 2 references. |
| Switch | Micro switch |
| Quantity of switch | One contact (General use, DC use) or two contacts (simultaneous operation) |
| Setting system | External adjustment type, with setting lock (The set adjustment axis is locked at the set value specication.) |
| Outlet for electric wire | Conduit type: G3/4 female (Standard), Others Gland: JIS 20b (Standard), Others |
| Case material, nishing | Aluminium alloy die casting (ADC12), Gray crystal paint |
| Case structure | Drip-proof type (Equivalent to IP43) |
| Weight | Approx. 1.2 kg |
