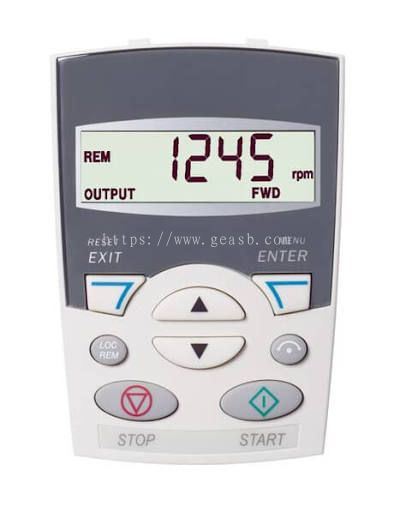

The ABB ACS-CP-C (Product ID: 64739000) is a Basic Control Panel (operator keypad) designed for low-voltage ABB Variable Frequency Drives (VFDs). It features a single-line numeric display and an 8-button interface, allowing operators to monitor drive statuses, modify parameters, and copy configurations between drives.
Core Specifications
- Brand/Manufacturer: ABB
- Part Number / Product ID: 64739000
- EAN Code: 6410038054588
- Display Type: Single-line numeric LCD display
- Keypad Layout: 8 keys (Start, Stop, Direction, Local/Remote change, Arrow keys, Menu/Enter, and Reset/Exit)
Drive Compatibility
The ACS-CP-C panel is built explicitly for the following ABB microdrive and machinery drive series:
- ACS310 (Standard fan and pump drives)
- ACS320 (HVAC applications)
- ACS350 / ACS355 (Machinery and generic industrial drives)
- ACS550 (General purpose industrial workhorse drives)
Operation Modes
According to the ABB ACS-CP-C User Manual, the basic panel operates using five distinct functional modes:
- Output Mode: The default view showing running values like motor speed, frequency, or current.
- Reference Mode: Used to manually adjust and set the local speed/frequency references.
- Parameter Mode: Allows the configuration and editing of individual parameter group settings.
- Copy Mode: Backs up parameter configurations into the internal keypad memory or downloads a saved profile into a new drive.
- Fault Mode: Displays active faults or historical trips to assist with system troubleshooting.
If you are looking for specific information regarding this panel, let GEASB know if you need help with parameter backup steps, troubleshooting a fault code, or checking current market availability.
