I. Original Manufacturer Model System
Brand: MANN-FILTER (Mann+Hummel)
Interchangeable Part Numbers
OEM Equivalent: LE13012X
Industry Alternative Numbers: SP2186, OS5098, 4930152101, 4930153101 (Direct interchangeable replacements with identical dimensions)

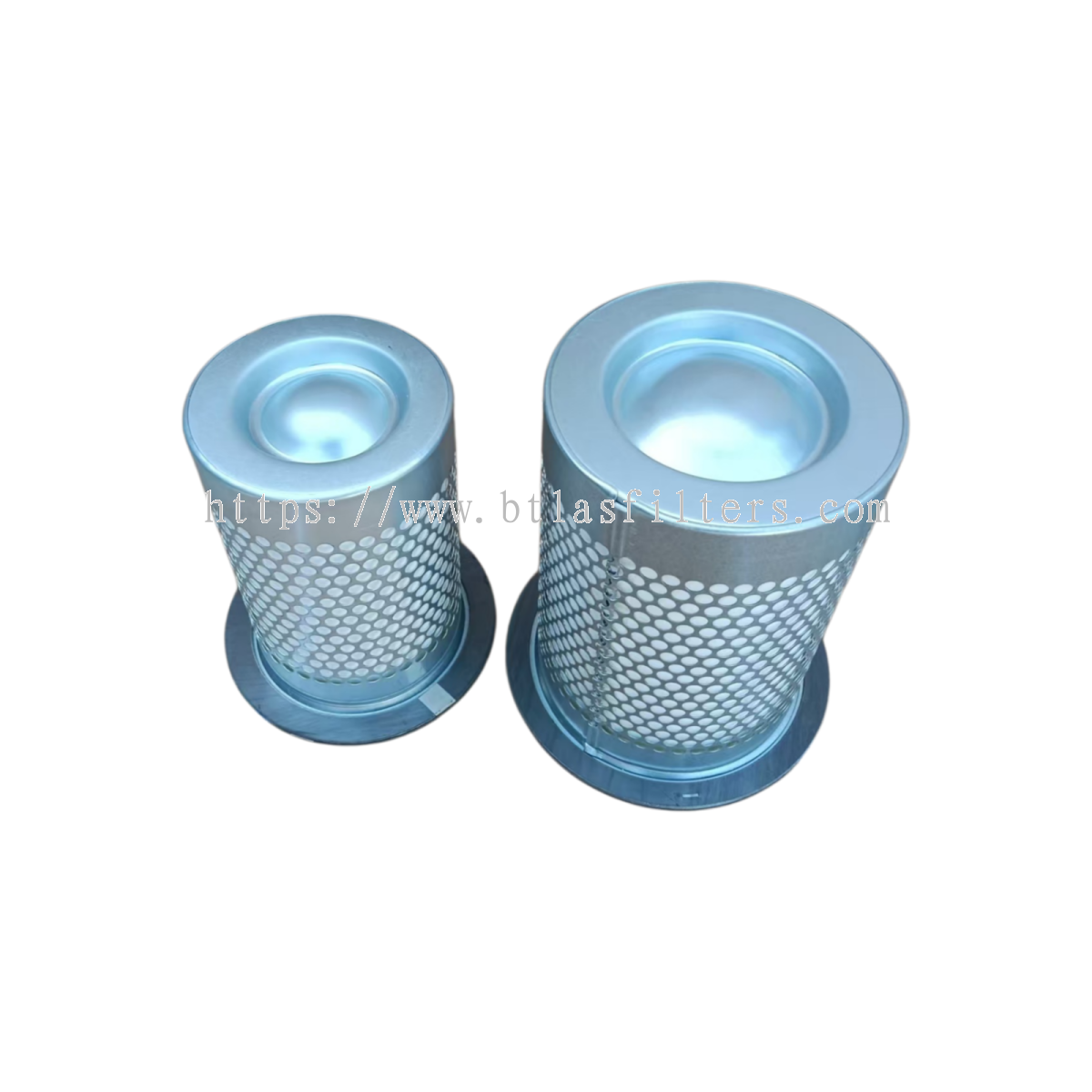

Product Type: Internal flange-mounted oil separator for rotary screw air compressors (in-tank oil-air separation)
II. Dimensions (mm)
Flange Outer Diameter: 200; Body Outer Diameter: 170; Inner Bore: 110; Total Height: 230
III. Compatible Models
Suitable for 30–50 m³/min domestic rotary screw air compressors (e.g., Xinda, Hongwuhuan, Kaishan, Jaguar); compatible with 37/45/55 kW models; fully interchangeable with part number 4930152101.
IV. Key Technical Specifications
Filter Media: Dual-layer imported composite glass fiber
Separation Precision: 0.1 μm; residual oil content in outlet air ≤ 3 ppm
Filtration Efficiency: 99.9%
Temperature Tolerance: ≤ 120°C
Standard Replacement Interval: 4,000 hours (3,000 hours in high-dust environments)
Seal: Oil-resistant fluororubber flange gasket
V. Matching Maintenance Kit (3-Piece Set)
Oil Separator: 4930155571
Air Filter: C16400
Oil Filter: Matching spin-on oil filter (2,000-hour replacement interval)
Air compressor oil consumption spikes; oil carry-over in exhaust
Oil separator differential pressure alarm; insufficient discharge pressure
Operated for 4,000 hours without maintenance
