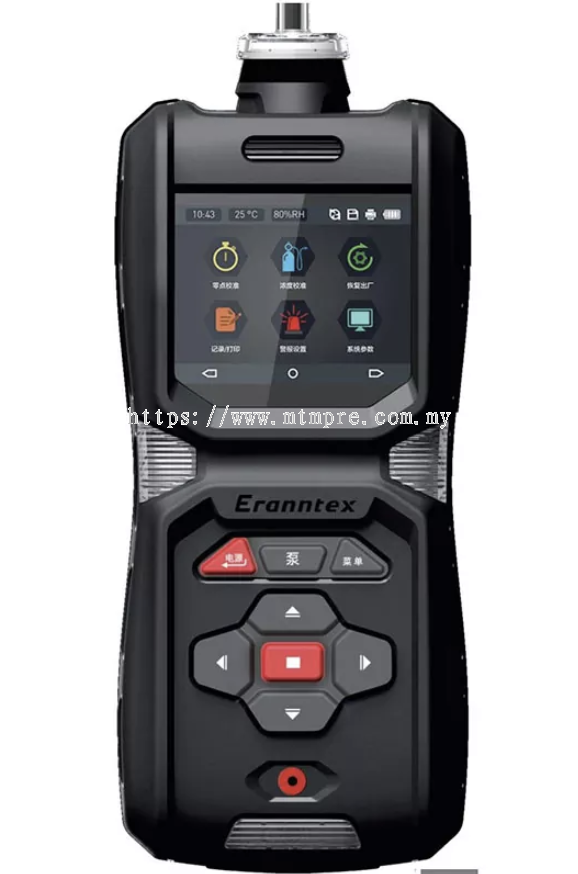

The Eranntex CD10(B) multi-parameter measuring instrument can be quite noisy when it goes off. It can sound and flash, flash alone, and both static and dynamic flash, even vibrating your hand, providing comprehensive alerts. It can report when it detects an abnormal gas concentration, a drop in pressure, or a malfunction. What constitutes "abnormal"? It won't work if the setting is too low, too high, or outside your specified safety range. Even if the average exceeds your set limit, it won't work—it will detect and alarm. It will also identify and prevent incorrect operation. The zero point automatically stabilizes and tracks, and the calibration is meticulous, so the measured values are accurate. The circuit design ensures safety, is explosion-proof and shockproof, and is resistant to static electricity and electromagnetic interference. It has passed national standards and is very durable!
|
Detection Factor/Range |
Methane (CH4): (0.00-4.00)%; Oxygen (O2): (0.0-25.0)%; Carbon Monoxide (CO): (0-1000)*10-6; Carbon Dioxide (CO2): (0.00-5.00)%; Nitrogen Dioxide (NO2): (0-20)*10-6; Ammonia (NH3): (0-100)*10-6; Temperature: (-20-70)°C; Humidity: (25-95)%RH; Wind Speed: (0.4-10.0)m/s; Atmospheric Pressure: (60-120)kPa |
||
|
Detection Method |
Built-in pump suction, sampling distance greater than 10 meters, flow rate 500ML/min, separate switch button to operate the air pump |
||
|
Display Method |
2.5-inch 320*240 high-definition color screen display |
||
|
Display Content |
Real-time concentration, alarm, time, temperature, humidity, storage, communication, power, charging status, concentration unit, gas molecular formula, etc. |
||
|
Detection Accuracy |
Typical accuracy: ≤±1% FS |
Uncertainty |
≤±1% |
|
Linearity |
≤±1% |
Repeatability |
≤±1% |
|
Response Time |
T90≤20s |
Recovery time |
≤20s |
|
Power Supply |
DC3-5V (standard 3.7VDC) |
||
|
Battery Capacity |
6000mAH rechargeable polymer battery with overcharge, overdischarge, overvoltage, short circuit and overheat protection functions |
||
|
Operating Environment |
Temperature -40℃~+70℃; relative humidity: 10-95%RH; |
||
|
Communication Interface |
Standard microUSB charging and communication (customizable RS485), with charging protection function, supports USB hot plug and RS232 communication |
||
|
Data Storage |
Standard capacity: 100,000 records (optional SD card expansion); supports local viewing, deletion, and data export, with configurable storage intervals. |
||
|
Log Recording |
Records calibration logs, maintenance logs, fault records, sensor life expiration reminders, and reminders for the next concentration calibration. |
||
|
Interface Language |
Can be set to Chinese or English; default interface is Chinese. |
||
|
Explosion-Proof Marking |
Ex dibI Mb |
||
|
Casing Material |
High-strength, wear-resistant, and corrosion-resistant engineering plastics |
||
|
Dimensions |
195×77×46mm(L×W×H) |
weight |
350g |
|
Standard Accessories |
Instruction manual, certificate of conformity, USB charger (including data cable), back clip, 1 humidity and dust filter, high-grade aluminum alloy instrument box |
||
|
Optional Features |
①Temperature detection: -40°C to +70°C, 0.5°C accuracy; Humidity detection: 0-100%RH, 3%RH accuracy (with temperature compensation) ②Pressure differential detection, wind speed detection, fall alarm, GPS positioning, and one-touch SOS alert ③Wireless data transmission: Bluetooth, Wi-Fi, and GPRS wireless transmission, with free computer software, cloud platform, and mobile app for remote data monitoring. ④Optional external mini wireless Bluetooth printer ⑤Optional 16GB or larger SD card supports storage of over 100,000 records |
||
|
Optional Accessories |
①0.9m retractable sampling handle (1-10m hose, standard length 1m); ②0.4m stainless steel sampling handle (1-10m hose, standard length 1m); ③Free host computer communication software (electronic file provided); ④Humidity and dust filter |
||
|
Manufacturer Qualifications |
AAA Corporate Credit Certificate, High-Tech Enterprise Certificate, ISO45001 Occupational Health and Safety Management System Certification, ISO9001 Quality Management System Certification, IS014001 Environmental Management System Certification, Shenzhen Well-Known Brand, Specialized and Innovative Enterprise |
||
|
Product Qualifications |
Safety certification (coal safety, mine safety), explosion-proof certification |
||
