Product Parameters
SPECIFICATIONS
Chipset SC6137D + CS43131 + TPA6120
Maximum sampling rate CDPCM 16-bit 96kHz
USB (USB flash drive) PCM 16-bit 96kHz
Compatible with earphones ranging from 16 to 300 ohms
Input USB (flash drive), CD

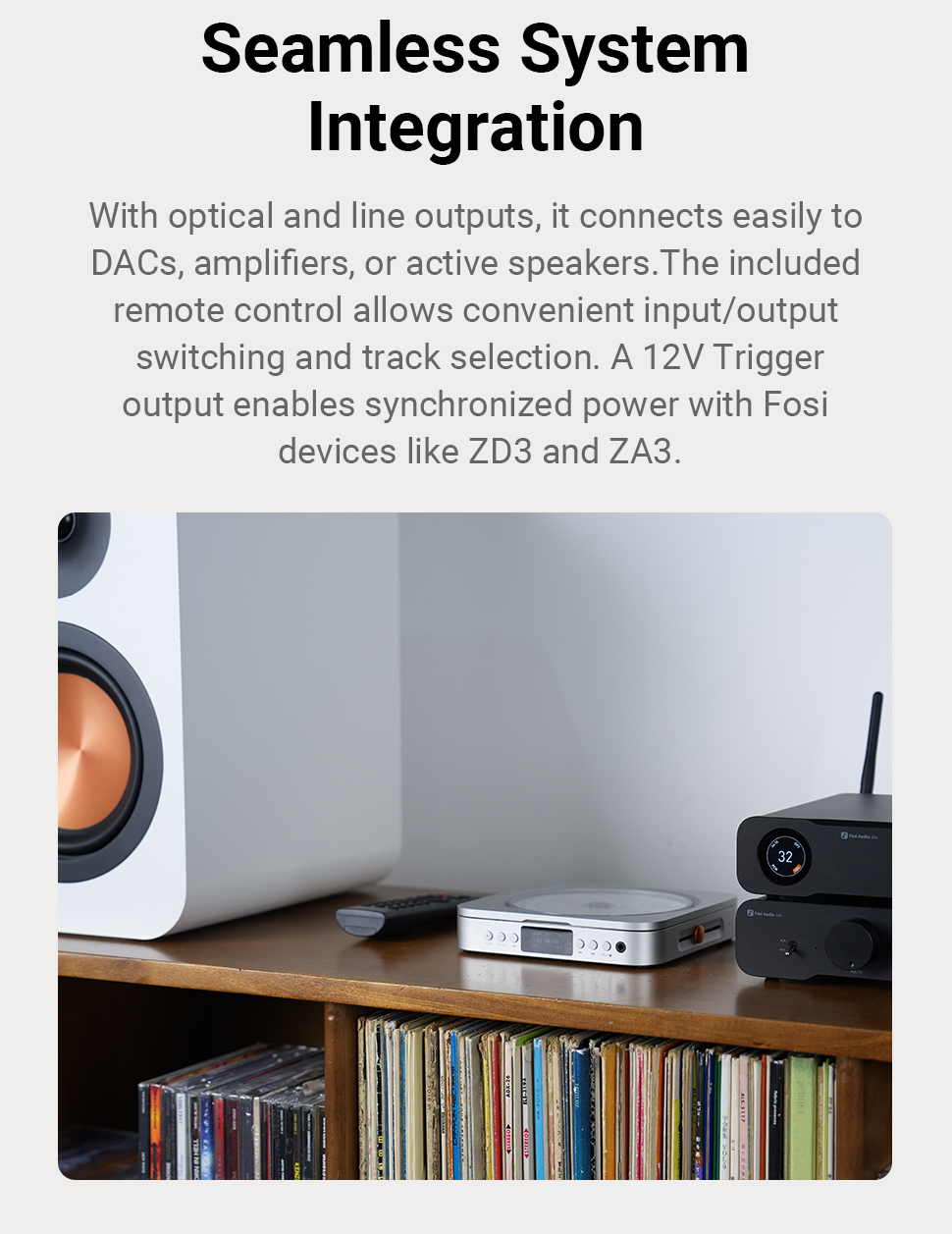

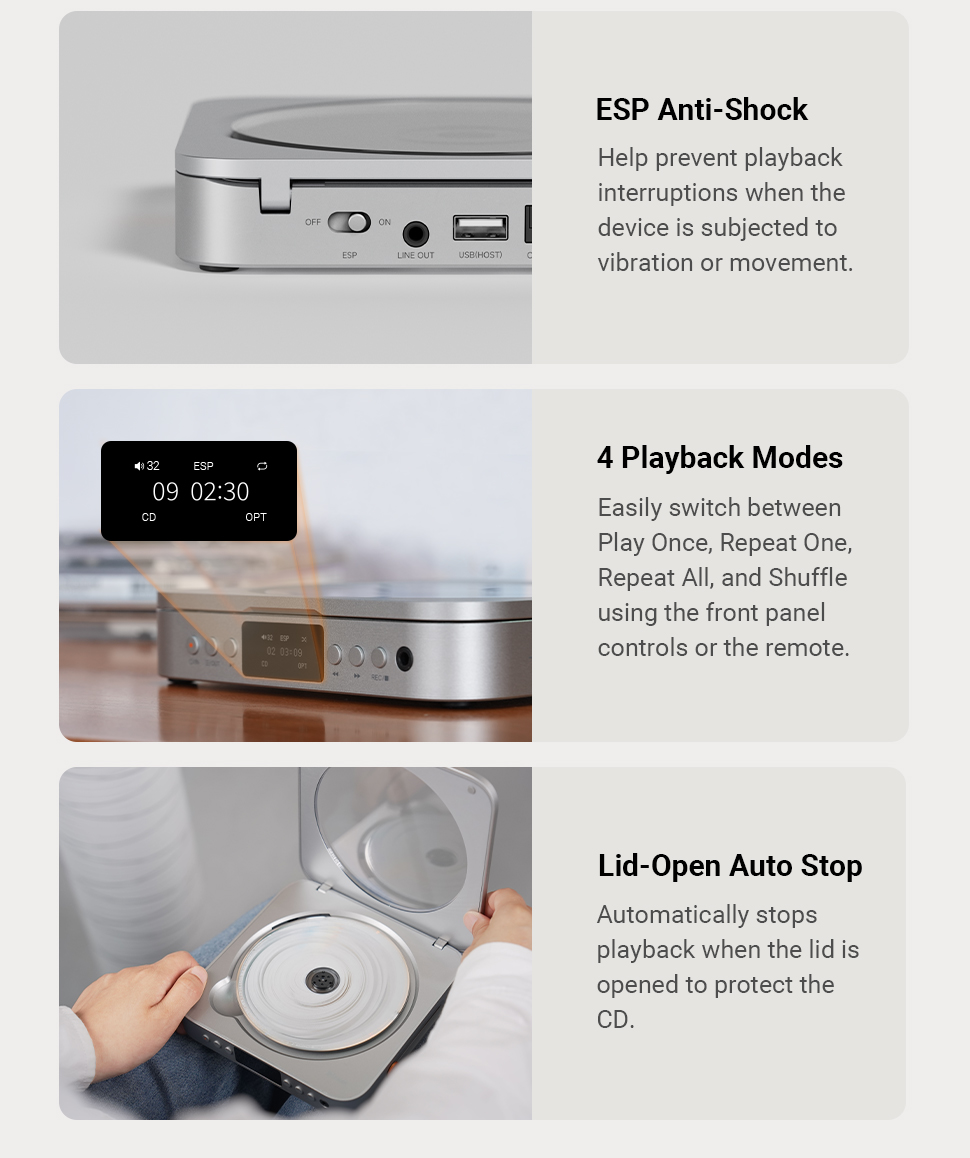

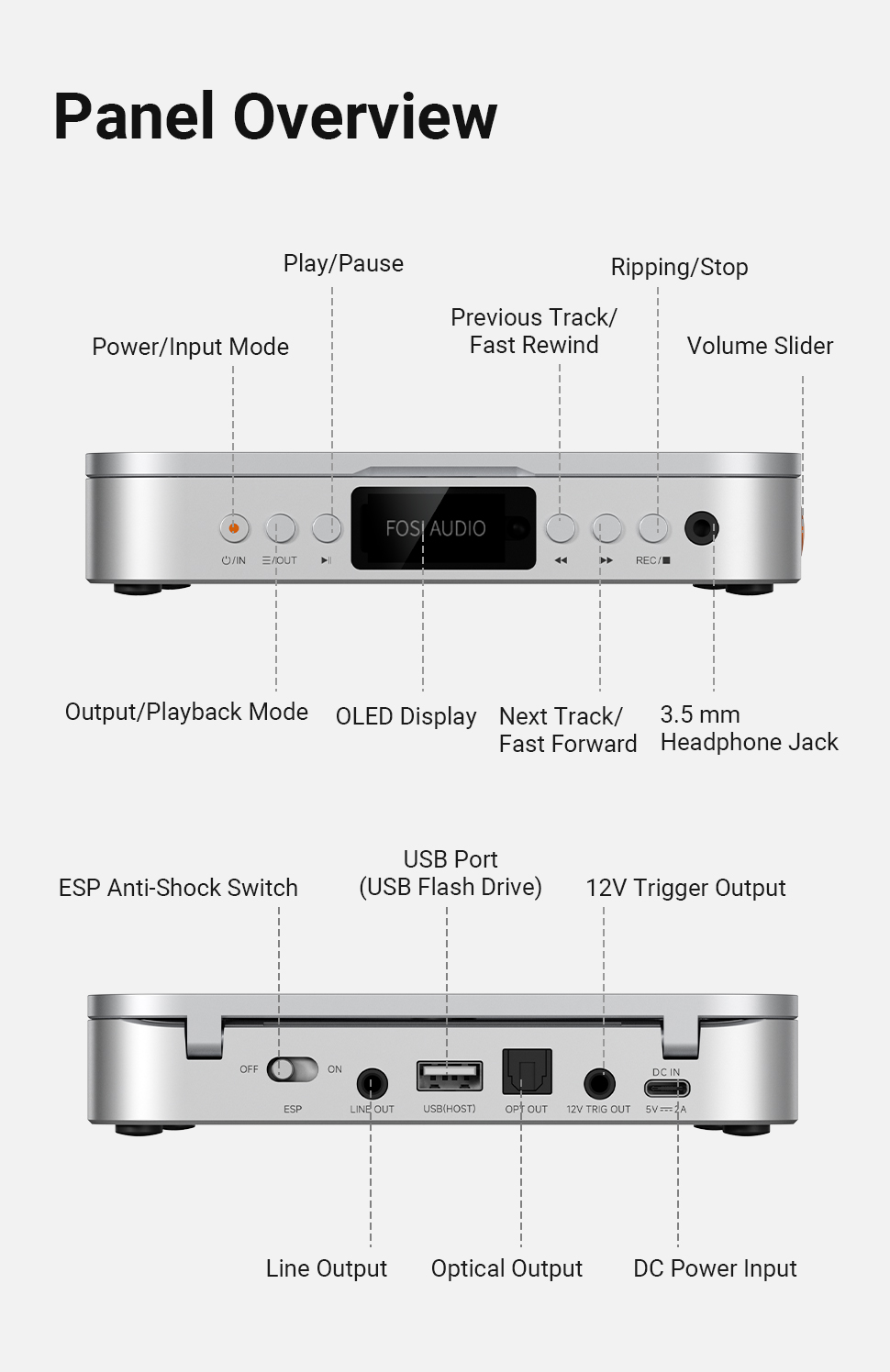

Output interfaces: 3.5mm headphone, LINE, OPT, 12V Trigger

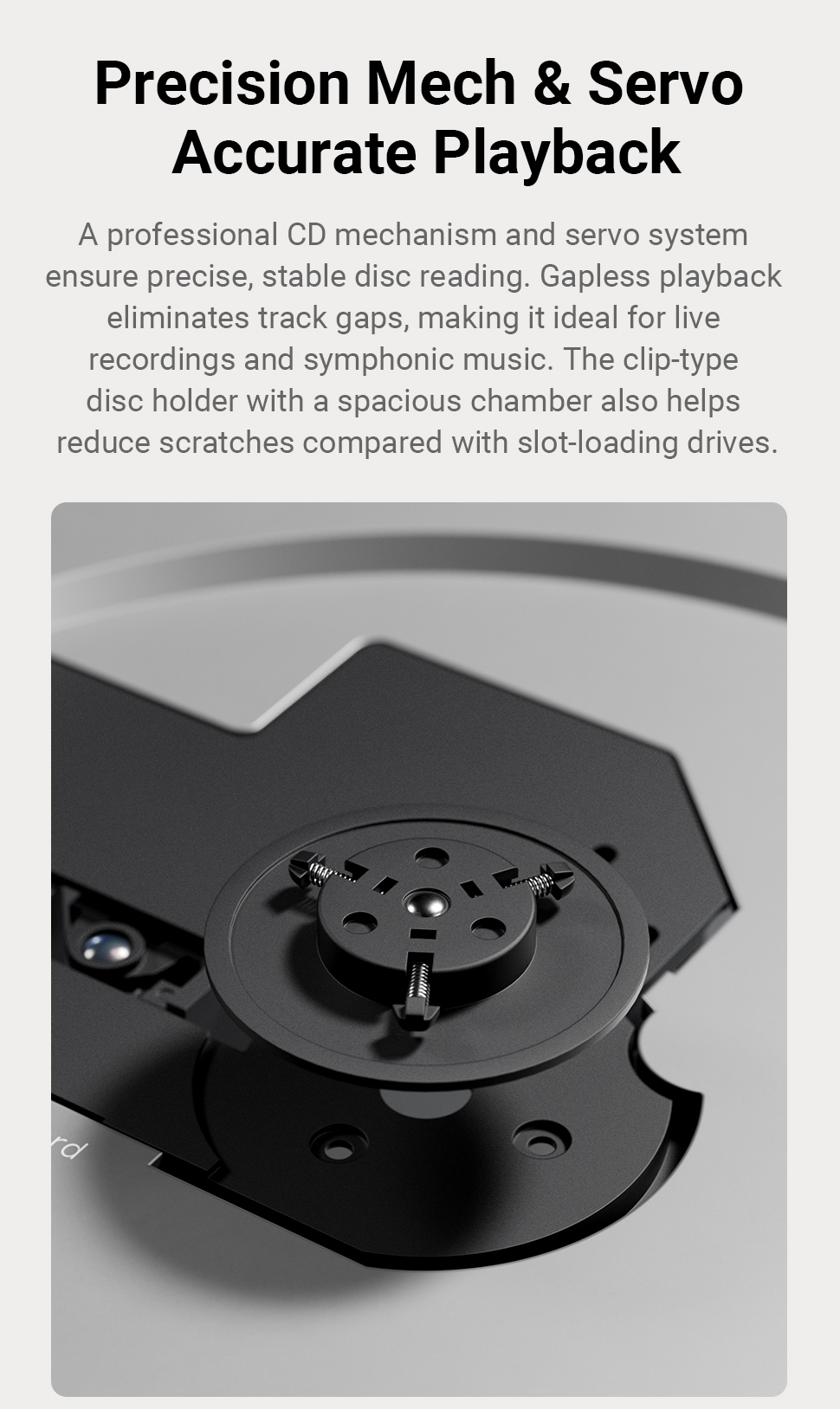

CD supported formats: CDDA, CD-R/CD-RW (partial read support). It is recommended to use original discs
CD-R supports FLAC/WAV/WMA/AAC/MP3 formats
SACD playback is only supported for SACDs with a CD layer
The USB flash drive supports playback in MP3/WAV/FLAC/AAC/APE/WMA formats
The infrared remote control supports a maximum connection distance of 7 meters
Input voltage DC 5V/2A
Firmware can be upgraded via USB-A by inserting a USB flash drive for online updates
3.5mm Output Performance Parameters (CD)

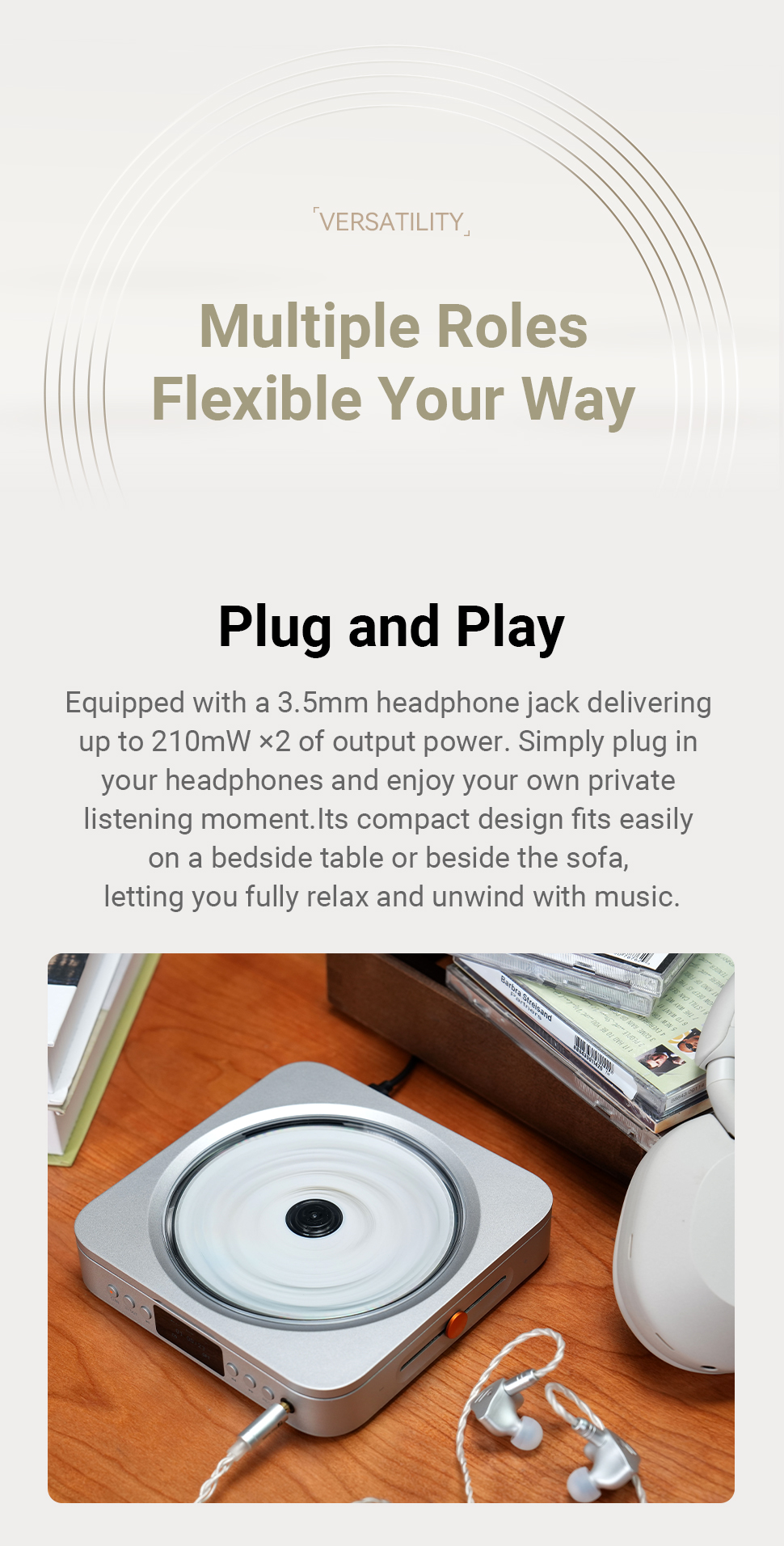

Rated power L+R ≥ 210mW + 210mW (32Ω/THD+N < 1%)
Signal-to-noise ratio 121dB (A-weighted)
Distortion (THD+N) 0.002% (A-weighted)
Dynamic range 121dB
Background noise ≤ 3μV (A-weighted)
LINE Output Performance Parameters (CD)
Rated power ≥ 2Vrms
Signal-to-noise ratio 124dB(A-weighted)
Total Harmonic Distortion plus Noise (THD+N) : 0.0009% (A-weighted)
Dynamic range: 124 dB
Base noise ≤3μV (A-weighted)
