Step by Step Refrigeration Brazing: Complete Professional Guide for Strong, Safe, and Leak-Free HVAC Copper Connections

Step by step refrigeration brazing is a fundamental process in the HVAC and refrigeration industry that ensures copper pipe joints are properly joined with strength, precision, and long-term reliability. This structured approach is essential because refrigeration systems operate under high pressure and temperature variations, where even small mistakes in brazing can lead to refrigerant leakage, reduced efficiency, and system failure. A proper step by step refrigeration brazing method helps technicians achieve consistent, high-quality results in every installation. At Eakon Academy, HVAC training programs are designed around a step by step refrigeration brazing process to develop skilled and industry-ready technicians.

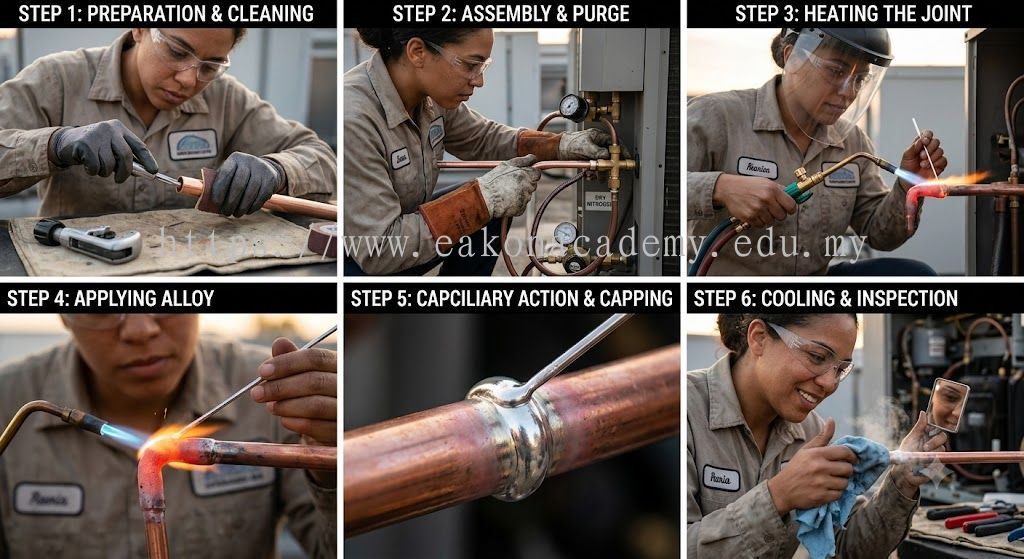

The first step in step by step refrigeration brazing is safety preparation. Technicians must ensure that the working environment is well-ventilated, clean, and free from flammable materials. Proper personal protective equipment such as safety goggles, heat-resistant gloves, and protective clothing must be worn at all times. Since brazing involves high-temperature flame work and gas equipment, safety checks on torches, hoses, and cylinders are essential before starting any operation.

The second step in step by step refrigeration brazing is pipe preparation. Copper tubing must be accurately measured, cut, deburred, cleaned, and properly aligned before brazing begins. Any contamination such as oil, dust, moisture, or oxidation can weaken the joint and cause refrigerant leakage. Clean and properly fitted pipe surfaces ensure that the brazing filler material flows smoothly through capillary action, forming a strong and uniform metallurgical bond.

The third step in step by step refrigeration brazing is setting up nitrogen purging. During brazing, high temperatures can cause internal oxidation inside copper pipes, resulting in scale formation and debris. These contaminants can damage critical HVAC components such as compressors and expansion valves. By introducing nitrogen flow into the system, technicians prevent internal oxidation and maintain clean pipe interiors, improving system efficiency and long-term reliability.

The fourth step in step by step refrigeration brazing is heat application and torch control. Technicians must use a brazing torch with a properly adjusted flame to ensure even heating around the joint. The copper tubing must be heated uniformly until it reaches the correct brazing temperature. Overheating can damage the pipe and cause oxidation, while insufficient heat can result in weak bonding. Proper flame control and movement are essential for achieving consistent brazed joints.

The fifth step in step by step refrigeration brazing is applying the brazing filler material. Once the correct temperature is reached, the filler rod is introduced and melts into the joint through capillary action. This creates a strong metallurgical bond between copper components, ensuring a leak-free and durable connection. Proper timing and technique are essential for full penetration and strong joint formation.

The sixth step in step by step refrigeration brazing is cooling and stabilization. After brazing, joints must be allowed to cool naturally. Rapid cooling methods such as water quenching should be avoided, as they can cause stress fractures and weaken the joint structure. Controlled cooling ensures long-term durability and structural integrity.

The final step in step by step refrigeration brazing is inspection and testing. Technicians must perform visual inspection, pressure testing, and leak detection to ensure all joints are properly sealed and safe for operation. These quality control procedures ensure system reliability, efficiency, and safety.

At Eakon Academy, HVAC training programs provide hands-on experience in step by step refrigeration brazing. Trainees learn real-world brazing techniques, safety procedures, nitrogen purging methods, and system testing skills. This practical training ensures technicians are fully prepared for professional HVAC installation and maintenance work.

Mastering step by step refrigeration brazing is essential for technicians who want to succeed in the HVAC industry. Proper execution of each step improves system efficiency, reduces leakage risks, enhances safety, and extends equipment lifespan. With professional training and practical experience, HVAC technicians can deliver reliable, high-performance refrigeration systems that meet industry standards and customer expectations in residential, commercial, and industrial applications.
