Description

Model: OC200

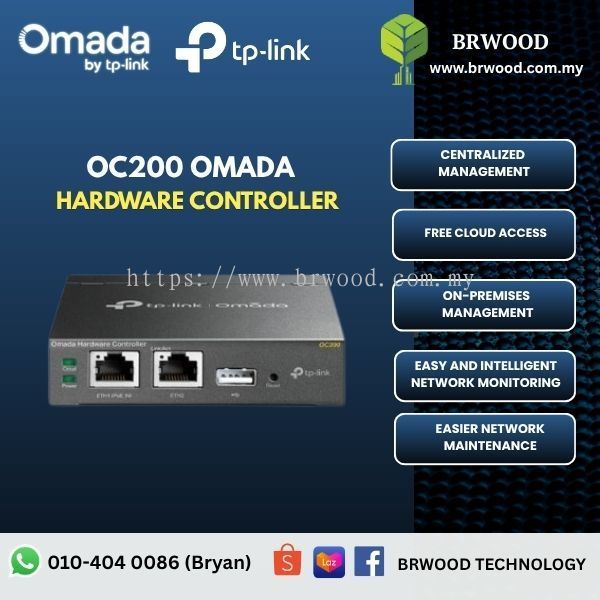

OMADA TP-LINK OC200: Hardware Controller

Centralized Management: Supports up to 100 Omada access points, 10 Omada routers, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs^†
Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
On-Premises Management: Locally monitor and manage devices with the ultimate security and stability.
Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two Fast Ethernet ports.
Flexible Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation.
Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution.
Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance.
Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance.

HARDWARE FEATURES
Interface	• 2× 10/100 Mbps Ethernet Port • 1× USB 2.0 Port • 1× Micro USB Port
Power Supply	802.3af/at PoE or Micro USB（DC 5V/Minimum 1A）
Dimensions ( W x D x H )	3.9×3.9×1.0 in (100×98×25 mm)

Management Features
Omada App	Yes
Centralized Management	• 100 Omada access points • 10 Omada routers • A maximum of 20 Omada switches^† • A maximum of 2 certain DeltaStream GPON OLTs^† Note: Please refer to www.tp-link.com/en/business-networking/all-omada/ to find all the Omada device models supported by OC200 ^†The number of supported Omada switches decreases by 5 for each DeltaStream GPON OLT added. Refer to https://www.omadanetworks.com/omada-sdn/product-list/#sp-gpon to find all the DeltaStream GPON OLTs that are supported by the controller.
Cloud Access	Yes
L3 Management	Yes
Multi-site Management	Yes
Management Features	• Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS
Certification	CE, FCC, RoHS
Package Content	• Omada Hardware Controller OC200 • Quick Installation Guide • Ethernet Cable
System Requirements	Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ! ) • Storage Temperature: -40–70 ℃ (-40–158 ! ) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
