Efficient Integrated Placement Head Configuration (Convenient and Fast) Optimal Productivity: 42,000 CPH (Under Optimal Conditions of the Company)
Capable of Mounting Components Ranging from 0201 Microchips to 40mm*40mm Large Components!

Features :

Multiple High-end Configurations Ensure High-precision, High-efficiency, and Stable Production

Feeding Devices and Corresponding Components: Supports Production with Multiple Material Packaging Feeders

Intelligent Functional Configurations: Making Equipment Operation More Convenient, Smarter, and More Flexible

Advantages :

Flexible Placement Head Configuration
- Configured with High-speed and Multifunctional Placement
- Heads Based on Product Characteristics.
Pioneers the Use of Industrial
- Linear Camera Scanning and Recognition Systems.
Uses Magnetic Levitation Motion Module
- to Ensure High-speed and Stable Placement Capability,
- Achieving High-speed and High-precision Placement Results.
Automatic Correction System
- with Thermal Compensation Correction Device.
Automatic Tape Cutting and Collection
- Device Makes Production More Efficient and Convenient.
Supports MES System for Quality and Efficiency
- Enabling Intelligent Management and Improving Enterprise Manufacturing Execution
- Capability Through MES System for Equipment Production.

Specifications :

Model Name	Category	CPM-F6
Specifications	Placement Head Module	Dual Arms
	Track Module	Single Track
	Number of Nozzles	High-speed Placement Head (10 Heads)	Multifunctional Placement Head (6 Heads)
Dimensions	L×W×H	L1380 X W2060 X H1450mm
Weight	Weight	Approx. 2472KG
Specifications	Air Source	0.5MPa, 150L/min
	Power Supply/Power Consumption	AC380/420/480V, 2KW
Target Substrate	PCB Size	Single Track: Minimum 50 × 50mm, Maximum 510 × 570mm
	PCB Thickness	0.5-9.0mm
	PCB Fixing Method	Pneumatic Lifting Platform, Upper and Lower Clamps
Placement Function	Optimal Placement Speed	42000CPH	18000CPH
	Placement Accuracy (CPK)	±0,035mm(XYZ), CPK ≥ 1.0	± 0,03mm(XYZ), CPK ≥ 1.0
	Supported Component Range	Flying Camera: Minimum Imperial 0201, Maximum L12 × W1 2 × H6.5mm	-
		Fixed Camera: Minimum Imperial 0201, Maximum L20 × W20 × H1 3mm	Fixed Camera: Minimum Imperial 0201, Maximum L55 × W55 × H25mm
Vision System	MARK Camera F leld of View	L20mm × w20mm
	MARK Camera Type	Area Array 500W
	Component Camera Type	Flying Camera	-
		Fixed Camera
Feeding System	Feeders	Electric Feeder
	Number of Feeders	Single Side: 50 Slots (8mm); Double Side: 100 Slots (8mm, Optional)
	Tape Feeders	Tape:8/12/16/24/32/44/56mm	Tape:8/12/16/24/32/44/56/72/88mm
	Tube Feeders	Number of Slots for a Single Vibration Feeder:
		4-20mm x 3 Tubes, 30-40mm x 2 Tubes, 40-50mm x 1 Tube
	TRAY(Optional)	-	TRAY Cabinet Capacity: L323 × W136 × H7.5mm, 20 Trays
	Dock Cart	Optional
	Nozzle Station	Optional
Control Section	X axis	High-precision Linear Motor + Encoder
	Y axis	Dual-drive Linear Motor + Encoder, Full Closed-loop Control
	Z axis	High-precision Linear Motor
	R axis	High-precision Servo Motor
MES System Integration	MES Data Collection	Supports TCP/IP Communication Protocol
	MES Upload	Supports QR Code/Barcode Recognition and Binding for MES Upload

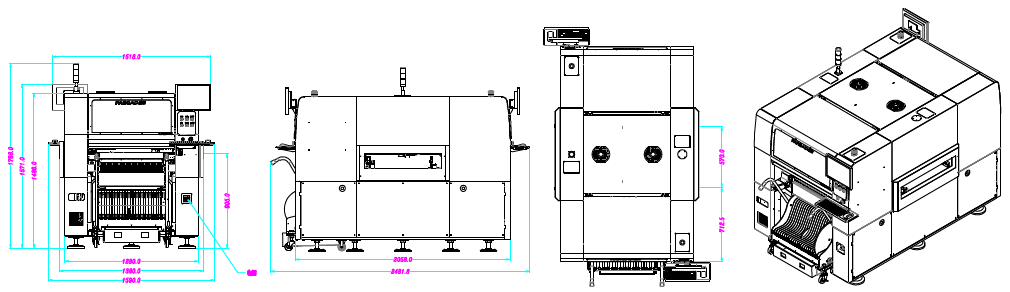

Dimension :
