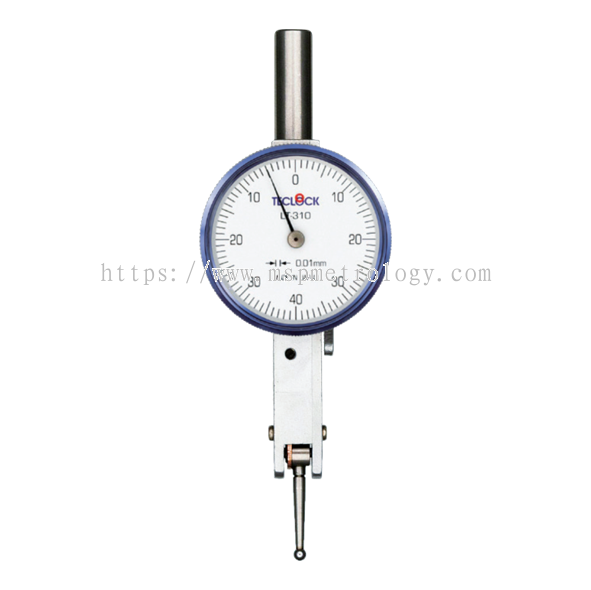

Lever Type Dial Test Indicator with changeable measuring direction, low measuring force, anti-magnetic stylus and pointer, and carbide ball stylus for less abrasion.

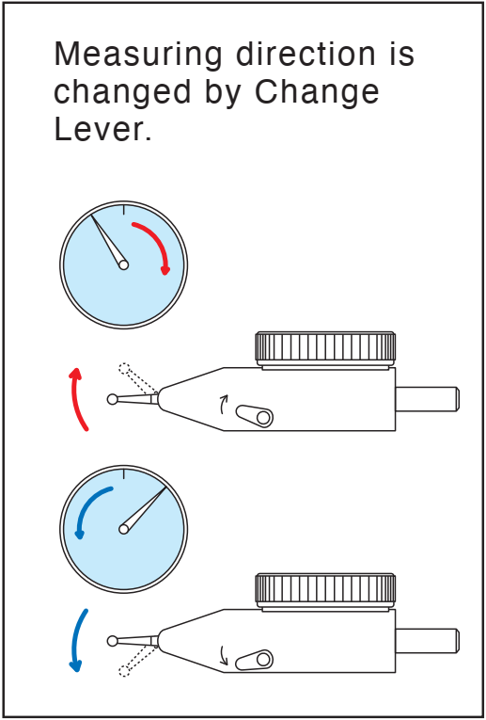

Measuring direction can be changed with change lever.
Due to the low measuring force, this is suitable for measurement of thin work piece as well.
Stylus and pointer are anti-magnetic and not affected by magnetism.
Stylus is made of φ2mm stainless steel and it is unique threaded type which can be changed easily. A carbide ball stylus is provided for less abrasion.
.png "24")

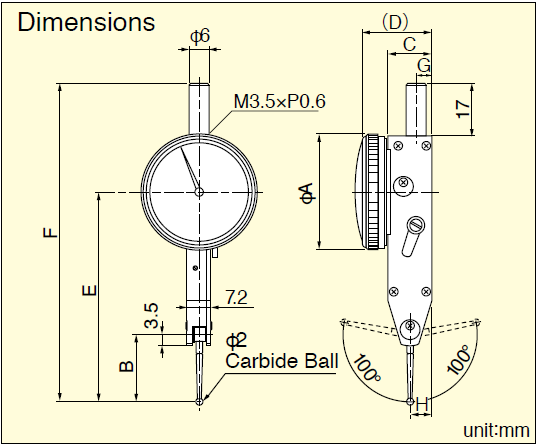

| Model | A | B | C | D | E | F | G | H |
| LT-310 | 28.4 | 15.3 | 14 | 22.4 | 47.3 | 79.3 | 5 | 7 |
Unit:mm
| Model | Graduation (mm) | Measuring Range (mm) | Dial Reading | Measuring Force (N) | Repeatability (μm) | Adjacent Error (μm) | Entire measuring range in foward direction Error (μm) | Hysteresis (μm) | Standard Stylus | Weight (g) |
| LT-310 | 0.01 | 0.8 | 0-40-0 | 0.4 or less | 3 | 5 | 9 | 4 | ZS-700 | 50 |
Contact us today to inquire about the LT-310 and enhance your measurement capabilities.
