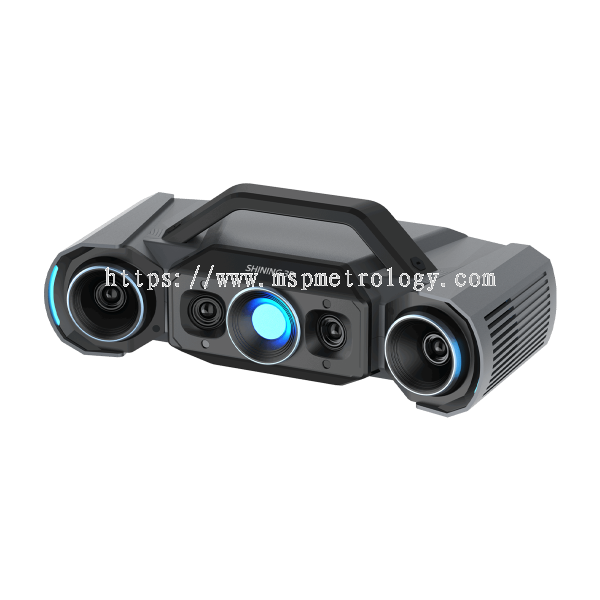

OptimScan Q12, equipped with 4 x 12.3 megapixel cameras, accurately captures geometrically detailed features on an object’s surface. Combined with powerful hardware modules and advanced 3D reconstruction algorithms, it delivers an impressive accuracy of up to 0.005 mm, ensuring stable repeatability.
OptimScan Q12, equipped with 4 x 12.3 megapixel cameras, accurately captures geometrically detailed features on an object’s surface.
Combined with powerful hardware modules and advanced 3D reconstruction algorithms, it delivers an impressive accuracy of up to 0.005 mm, ensuring stable repeatability.
The OptimScan Q12 features two scan ranges that can be switched with a single click, eliminating manual adjustment of aperture and focal length.
Scanned data from different ranges can be seamlessly fused in the software, ensuring both efficiency and detail.
The monocular-stereo fusion function can effectively increase data coverage and improve the integrity of the scanned data, such as the common turning corners and joints of industrial parts.
Powered by a built-in dual-chip computing module, OptimScan Q12 delivers fast image acquisition and data processing. Each shot less than 1 second, capturing an impressive 12 million points with exceptional precision.
To further streamline the workflow, Q12 offers multiple exposure modes—including intelligent automatic exposure—dramatically reducing scanning time while ensuring optimal results across diverse surface conditions.
OptimScan Q12 is compact and easy to carry, offering flexible manual scanning. For semi-automated operation, it pairs with a fixed tripod and an automatic turntable with up to 20 kg load, providing increased efficiency and consistency in scanning. In fully automated mode, it integrates with a robot for precise, repetitive inspection tasks.
OptimScan Q12 can seamlessly integrates with intelligent 3D inspection system, enabling fully automated workflow from scanning to report generation.
Workflow:
1. Robot Path Setup
2. Automated 3D Scanning
3. Automated Data Analysis
4. Automated Report Generation
At SHINING 3D, we don’t just provide devices – we deliver customized solutions, global support, and a commitment to your success. From intuitive tools to calibrated accuracy, we’re here to empower your work.
Discover how integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.
Application Scenarios: Precision machined parts such as engine blocks, transmission housings, turbine blades, and braking system components. Function: Rapid acquisition of high-density point cloud data for geometric tolerance analysis (e.g., flatness, roundness, position) by comparing with CAD models. Detects machining errors (e.g., burrs, deformation) to ensure compliance with industry standards.
Application Scenarios: Stamped sheet metal parts such as fenders, and chassis structural components. Function: Scan surface contours to analyze springback effects and optimize stamping die design parameters. Conduct full-size inspection (FAI) to detect minor wrinkles or cracks, reducing subsequent welding and assembly issues.
Application Scenarios: Injection molds, die-casting molds. Function: Scan worn molds and perform reverse engineering to generate 3D models for repair or remanufacturing guidance. Compare data from old and new molds to predict lifecycle and reduce downtime costs.
Application Scenarios: Critical production line stations. Function: Integration with robotic arms enables fully automated scanning. Real-time inspection reports are generated to monitor production trends and provide early deviation warnings.
No subscriptions, no hidden fees.
Your OptimScan Q12 comes with access to our powerful and continuously updated software. Scan as much as you want, all year long, with no hidden fees or extra costs.
OptimScan Software will guide you through the 3D scanning process, from calibration to 3D scanning and data editing.
The Multi-Resolution Fusion Algorithm allows a mixture of 3 levels of resolution of high, medium, or low in one project for complex scanning tasks, which highly improves efficiency without duplication of work.
OptimScan software has intelligent algorithms with a range of tools for cleaning, aligning, merging, and optimizing scans to create high-quality 3D models.
OptimScan software can export models of watertight and non-watertight in various file formats, ensuring compatibility with the most popular 3D software in the market for further design.
| Scan range | Large range: 430 × 300 mm, Small range: 160 × 110 mm |
Accuracy | Large range: 0.015 mm, Small range: 0.005 mm |
| Point distance | Large range: 0.1 mm, Small range: 0.04 mm |
Working distance | Large range: 590 mm, Small range: 210 mm |
| Depth of field | Large range: 300 mm, Small range: 60 mm |
Resolution |
4 × 12.3MP |
| Light Source | Blue LED | Weight |
OptimScan Q12: 3.5 kg |
| Dimensions | 366 × 162 × 132 mm | Certifications |
CE, FCC, ROHS, WEEE, KC, FDA, |
| Acceptance test | VDl/VDE 2634 Part2 (certified in ISO 17025 certificated accuracy lab) |
|
Contact us today to inquire about the OptimScan Q12 and enhance your 3D scanning and inspection capabilities.
