Feature 1: Saves data to the internal memory
Saves data to the internal memory. (Max.1000 data)
Enables to print out the all saved data by using RS232C printer
Standard Type Screw Cap Torque Testers (Torque Gauge)
Standard type screw cap torque tester combines ease of use and functionality with the capacity of 50 N-cm to 1000 N-cm (10 N-m), and can measure opening and closing torque of container lids such as PET bottles or jars. High-speed sampling at 2000 Hz ensures high repeatability in both peak measurement and graphing. Next Series with firmware version 5 or later offers improved measurement stability due to low noise, and expandability and convenience through additional functions (firmware download) and various software and instruction manuals available from the dedicated website (IMADA-connected.com).
High sampling rate (2000Hz) for accurate results, capturing small changes and accurate peak values by following rapid changes of torque
Ideal for measuring opening/closing torque of various samples such as bottles and bins
Reduces risk of misreading values with easy-to-read high luminance organic EL display. Allows customers to customize the contents for the three sections of the display screen
Handles a wide range of samples with various optional tables and attachments
Next Series (Firmware Ver.5 or later) equips extended functions such as additional functions and software downloads from IMADA download site
Saves data to the internal memory. (Max.1000 data)
Enables to print out the all saved data by using RS232C printer
The high speed data sampling rate (2000 data / sec) captures momentary force and digitizes it.
It captures the right max value and enhances repeatability of repeat test.
.png "DTXA5")

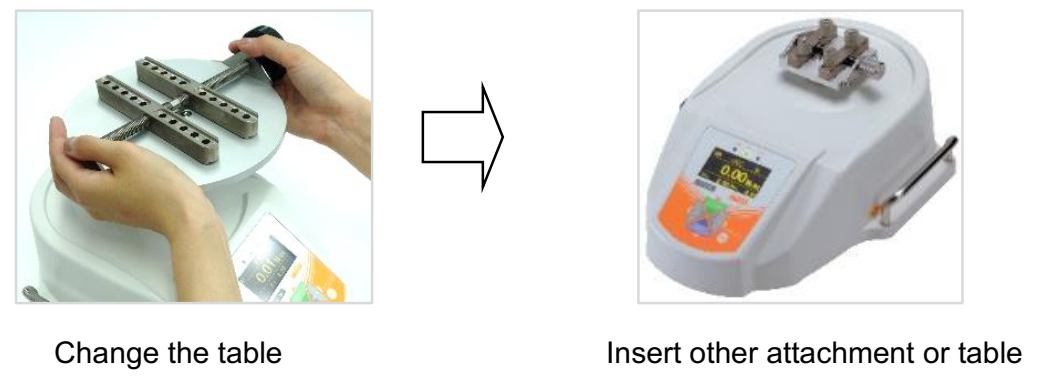

Changeable pins, tables and attachments. The users can choose the most suitable combination for their sample

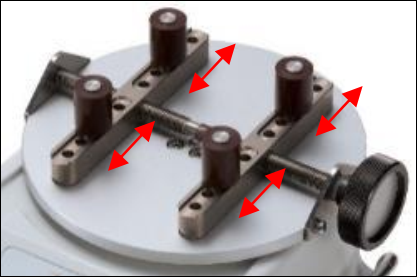

The pin types and the positions
are changeable.
The display is visually clear as the user can see it from the side or in a dark place.

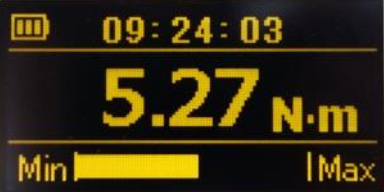

Time display

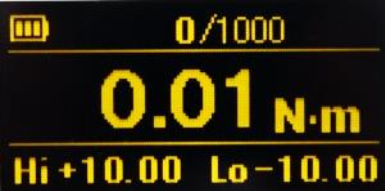

Easy and certain data managements
Bar graph
For prevention of breaking the sensor(over load). (*1)

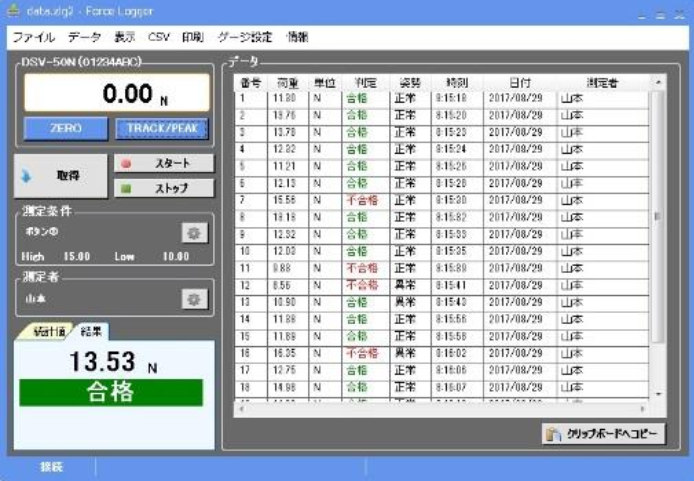

Display Force value/Date and time/ OK/NG judgment by connecting PC via USB
The body can be fixed on a desk with the carry handle holes. It supports testing stable.
| Model | DTXS |
| Outline | Standard model with various functions |
| Accuracy | ±0.5%F.S.±1digit |
| Unit of measurement | N-m, N-cm, kgf-m, kgf-cm, lbf-in, ozf-in (Unit switching is possible.)(*1) |
| Display | 4-digit |
| Display update | 16 times /sec |
| Sampling rate | Maximum 2000 data/ sec(*2) |
| Battery | 8 hours (2 hours full charge)(*3) |
| Safe overload rating | Approx. 200% |
| Operating Environment | Temperature: 0 – 40 degree Celsius Humidity: 20 -80%RH |
| Function | Customized display(header and footer) / Peak hold(Clockwise and Counterclockwise)/ Internal memory(1000 point data)） / Comparator (OK or NG judgment)/ Reversible display/ Sign inversion/ Zero clear timer/ +NG alarm/ Off timer(Auto power off)/ Dumping/ Time display/ setting lock |
| Output | USB, RS232C, Mitutoyo digimatic (*5), 2 VDC analog output (D/A), Comparator 3 steps (-NG/OK/+NG), Overload alarm |
| Overload warning | Approx.110%F.S. (Warning message and alarm) |
| External connecting switch | SEND (a point of contact holding), Zero reset, Peak ON/OFF setting |
| Weight | Approx. 3.0kg (No table model), Approx. 4.5kg (Included standard table and pins) |
| Dimensions | See [Dimensions] |
| Accessory | AC adapter, Inspection certificate, CD driver (including simple software for data logging),USB cable, Carrying case, L wrench |
| Approved standard | JIS S 0022 (2001): Guidelines for all people including elderly and people with disabilities — Packaging and receptacles — Test methods for opening “6.3 Screw top receptacle” |
*1 These are the specifications for International model. Please note that this unit is different from Japanese domestic model.
*2 Up to 100 data/sec. is saved in USB memory (selectable among 1, 50, and 100 /sec)
*3 The battery is more consumed when connected to USB flash drive or a displacement scale.
*4 Angle(displacement) scale is necessary to valid this function.
*5 Not always available for Mitutoyo digimatic products.
*6 USB flash drive is not included.
| Japan Model | US Model | Range | Display | Resolution |
| DTXS-0.5N-Z (*1) (*2) | DTXS-4-Z | 0.5 N-m (50N-cm) | 50.00N-cm | 0.01N-cm |
| DTXS-2N | DTXS-15 | 2 N-m (200N-cm) | 2.000N-m (200.0N-cm) | 0.001N-m (0.1N-cm) |
| DTXS-5N | DTXS-40 | 5 N-m (500N-cm) | 5.000N-m (500.0N-cm) | 0.001N-m (0.1N-cm) |
| DTXS-10N | DTXS-85 | 10N-m (1000N-cm) | 10.00N-m (1000N-cm) | 0.01N-m (1N-cm) |
| DTXS-2N-Z (*1) | DTXS-15-Z (*1) | 2 N-m (200N-cm) | 2.000N-m (200.0N-cm) | 0.001N-m (0.1N-cm) |
| DTXS-5N-Z (*1) | DTXS-40-Z (*1) | 5 N-m (500N-cm) | 5.000N-m (500.0N-cm) | 0.001N-m (0.1N-cm) |
| DTXS-10N-Z (*1) | DTXS-85-Z (*1) | 10N-m (1000N-cm) | 10.00N-m (1000N-cm) | 0.01N-m (1N-cm) |
Contact us today to inquire about the DTXS Series and enhance your screw cap torque testing capabilities.
