TWO MODELS AVAILABLES
Evocus S20+ series offers two model which are binocular type and trinocular type.
Evocus S20+ series offers excellent stereo microscope performance for biological, medical, research, electronic testing and industrial applications.
Evocus S20+ series offers two model which are binocular type and trinocular type.
Excellent stereo microscope cater for demand in field of biological, medical, research, electronic testing for industry.

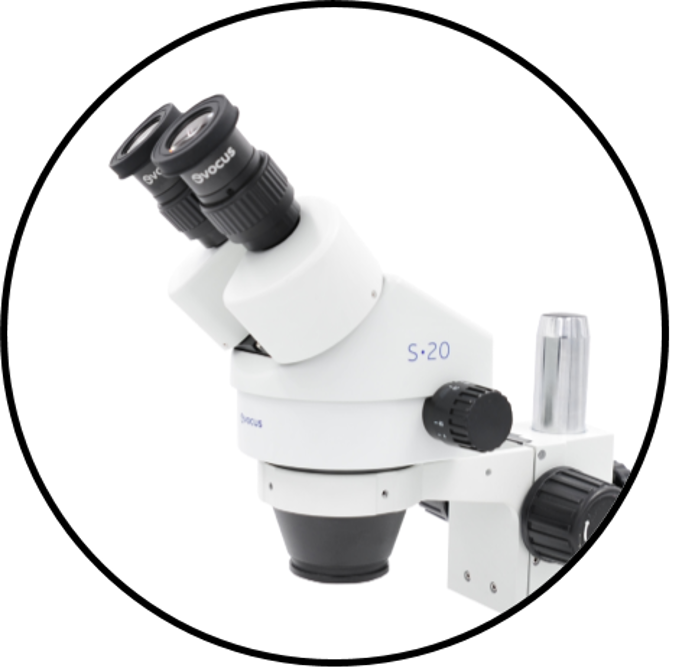

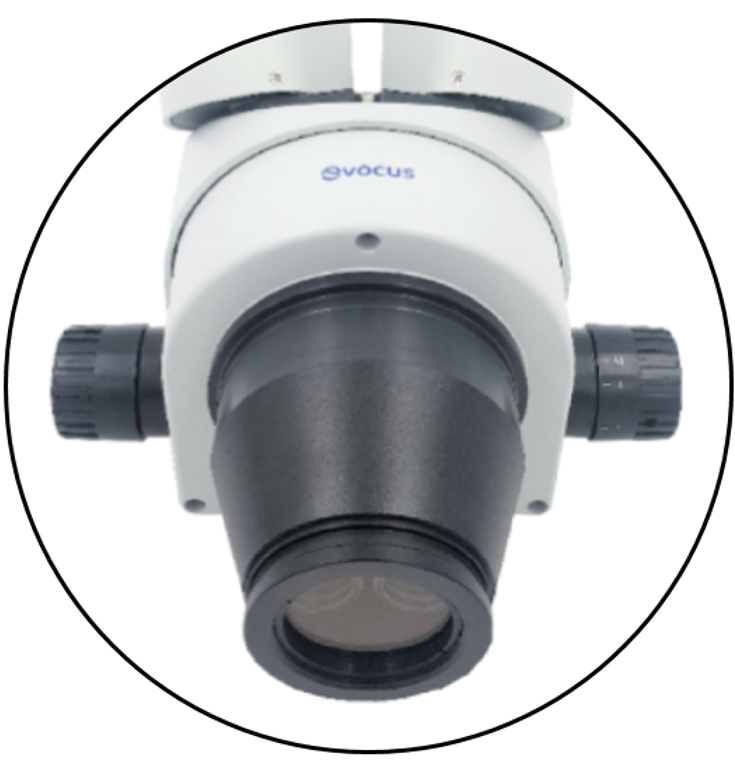

The S20+ microscope lens has glass cover to protect the lens from dust and damage. The coating paint of the structure is also thicker than usual stereo microscope in the market
| Optical System | Greenough Optical System |
| Zoom Ratio | 6.5:1 |
| Zoom Magnification | Continuous with Marking |
| Optical Magnification | 7x ~ 45x |
| Possible Zoom Range | 3.75x ~ 180x (with specific eyepiece & objective lens) |
| Zoom Drive | Horizontal Knob |
| Observation Tube | Binocular (S20.001) or Trinocular (S20.002) |
| Eyepiece | 10x/20mm (standard) |
| Inclination Degree | 45° |
| Interpupilary Distance | 54 – 75mm |
| Diopter Adjustment | +5/-5 |
| Working Distance | 100mm standard (30 – 165mm with objective lens) |
| Illumination | LED Ring Light (standard with LED 20) |
| Focusing Stroke | 50mm (tension adjustable) |
| Base & Stand | Base (165 x 243mm) and Pillar Stand (H248mm) |
| PRODUCT | CODE |
| Eyepieces 10x | S20.003 |
| Eyepieces 15x | S20.004 |
| Eyepieces 20x | S20.005 |
| Evocus Objective Lens 0.5x for Stereo Microscope | S20.006 |
| Evocus Objective Lens 2.0x for Stereo Microscope | S20.007 |
| Evocus Stereo Microscope Head Holder | S20.008 |
| Evocus Eyepiece Reticle | S20.009 |
| LED-20 Ring Light (Standard) | L90.201 |
| Glass Protection Cover | L90.905 |
| Transparent Cover Cloth | L90.906 |
Contact us today to inquire about the Evocus S20+ Series Stereo Microscope and enhance your stereo microscope capabilities.
