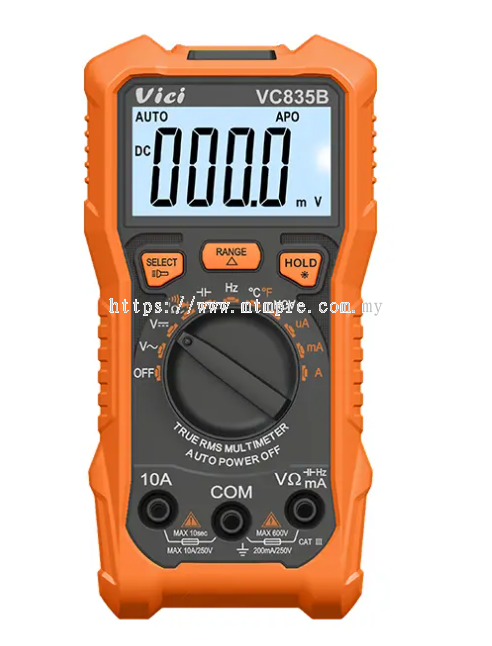

VC835B multimeter, available to DC voltage, AC voltage, DC current, AC current, Resistance, Capacitance, Frequency, Non-contact voltage (NCV) detecting, Duty-cycle, Temperature, Diode and Continuity tests; Designed with unit symbol, Torch lighting, Data hold, Auto ranging switch, Auto power off and alarm functions. 2000 digits display
Technical Data
|
Basic function |
Range |
Basic Accuracy |
|
DCV |
200mV/ 2V/ 20V/200V/600V |
± (0.5%+4) |
|
ACV |
200mV/2V/ 20V/ 200V/ 600V |
± (0.8%+6) |
|
DCA |
200uA/ 2000uA/ 20mA/ 200mA/ 2A/ 10A |
± (1.0%+5) |
|
ACA |
200uA/ 2000uA/ 20mA/ 200mA/ 2A/ 10A |
± (1.5%+5) |
|
Resistance |
200Ω/ 2kΩ/ 20kΩ/ 200kΩ/ 2MΩ/ 20MΩ |
± (0.8%+1) |
|
Capacitance |
20nF/ 200nF/ 2uF/ 20uF/ 200uF/2000uF |
± (2.5%+5) |
|
Frequency |
10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz/ 1MHz |
± (0.5%+4) |
|
Temperature |
-40℃～1000℃/-40! ～1832! |
± (1.0%+5) |
|
Special function |
VC835B |
|
True RMS |
√ |
|
NCV |
√ |
|
Data hold |
√ |
|
Function protection |
√ |
|
Torch function |
√ |
|
Backlight display |
√ |
|
Duty cycle |
1%~99% |
|
Diode test |
√ |
|
Continuity alarm |
Less than 50Ω, it displays “OL” if over 610Ω |
|
Low battery indicator |
Approx. less than 2.4 V |
|
Auto power off |
About 15 minutes |
|
Input impedance |
10MΩ |
|
Sampling rate |
3 times/s |
|
AC frequency response |
40Hz-2kHz |
|
Operation method |
Manual or Auto range |
|
Max. display |
1999 |
|
LCD size |
61x28mm |
|
Battery |
3V (2*AAA battery) |
|
Power consumption |
Quiescent current about 2mA |
General characteristic
|
Meter color |
Orange and Grey |
|
Meter weight |
195g（including battery） |
|
Meter size |
140×72×37mm |
|
Standard accessory |
Test leads, battery, manual, TP01 temperature probe |
|
Standard packing |
Gift box |
|
Quantity per carton |
40PCS |
|
GW per carton |
15KG |
|
Carton size |
32.5×25×47.5CM |
