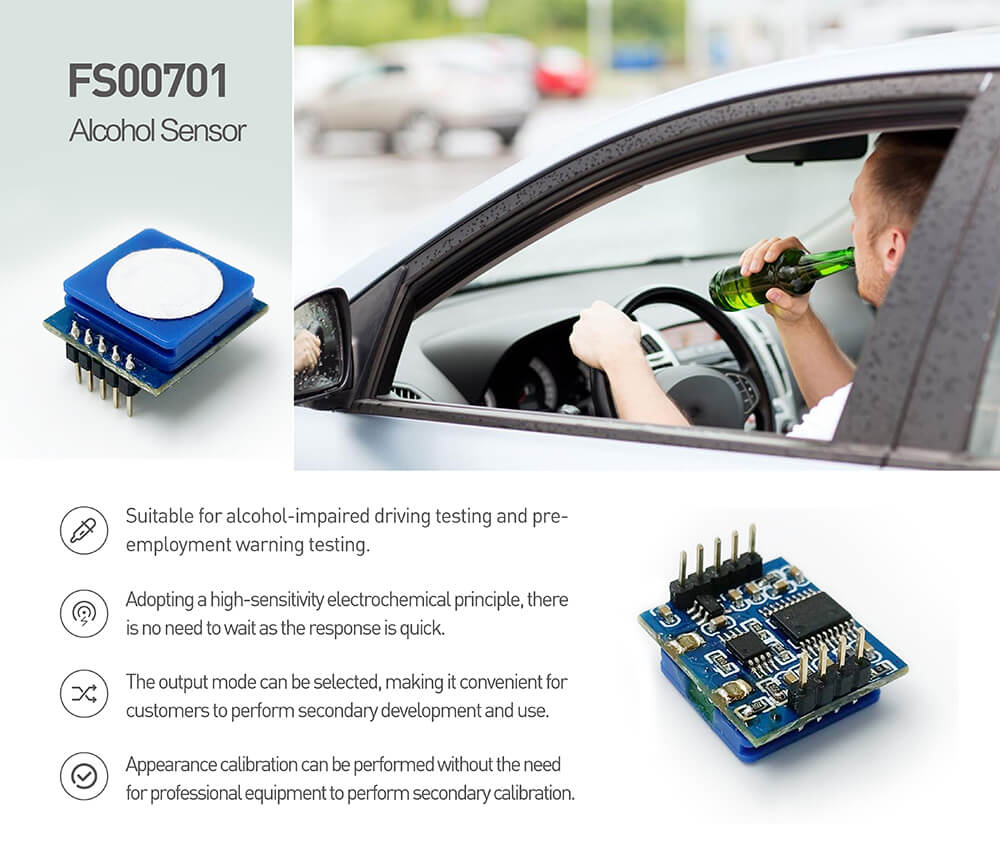

Fosensor Previous Next Electrochemical C2H5OH Alcohol Sensor Module FS00701

Electrochemical C2H5OH alcohol sensor module is a fuel cell type electrochemical sensor that works by the oxidation and reduction reactions on the working electrode and counter electrode, releasing charges to form a current. The magnitude of the current generated is proportional to the concentration of alcohol and follows Faraday’s law. By testing the magnitude of the current, the alcohol concentration can be determined. It uses a high-stability gas sensor and a high-performance microprocessor that supports UART output for easy use. The ethanol sensor module adopts precise automatic calibration and detection equipment, reducing human interference and ensuring the accuracy and consistency of data during large-scale production. This alcohol sensor is very suitable for portable product applications, with a small and convenient design for integration.

1.Detection range

Default: 0～500mg/100ml (Blood alcohol concentration (BAC))

Optional: 0～500ppm (Gas alcohol concentration)

2.High accuracy, high consistency, high solution

Data detection accuracy: ≤10% reading

Minimum solution: 0.001 mg/m³

Batch consistency: ≥90%

3.Long service life:

The lifetime is up to 2 years (in the air)

4.High detection frequency

The data updates once per second by default.
