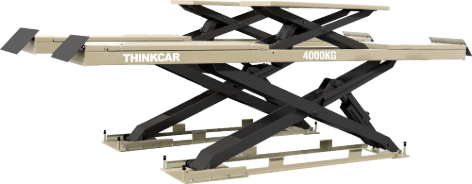

THINKCAR TVL 840 Large Scissors Lift: Pilihan Utama di Melaka, Malaysia OBD Automotive Technology Sdn Bhd

Penerangan

features

·The underground installation saving working space.
·Independent control box, low voltage control, good safety performance.
·Hydraulic volume synchronized cylinder, the platform operates synchronously and stably.
·Hydraulic lock and mechanical double-tooth safety claw, double insurance, safe and reliable.
·Hydraulic failure and overload safety valve protection.
·Adopt oil-free and super wear-resistant material sliding block.
·Equipped with high-quality hydraulic and electrical components from Italy, Germany, Japan, etc.
·Using manganese plate support arm and aluminum motor pump station, strong power.
·The scissors can be pulled out, suitable for extended long vehicle models.
·Integral base, strong horizontal adjustment ability, precise and adjustable precision, especially suitable for four-wheel alignment detection.

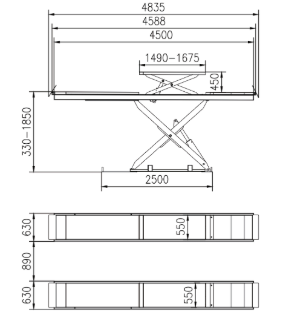

Specifications

Rated load

4000kg

Lifting height

1850mm

Initial height

330 mm

Lifting time

≤50s

Lowering time

≥20s

Platform length

4500mm

Platform width

630mm

Power

2.2kw

Voltage

AC 400V or 230V±5% 50Hz

Hydraulic Oil

20L( Winter: N32# Summer: N46# )

Net weight

2050kg

Working Temperature

5-40℃

Air Pressure

0.6-0.8Mpa
