MODEL 4102A-H

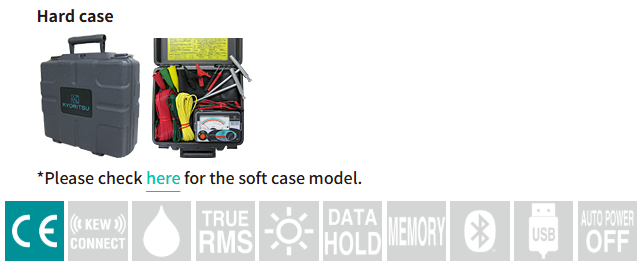

Hard Case Model

3-Pole and 2-Pole Earth Resistance
The latest circuit design permits the instrument to operate with the minimum of influence from earth voltage and earth resistance of auxiliary earth spikes
Dust and drip proof (designed to IEC 60529 IP54)
Earth resistance value can be read directly from the scale
Designed to meet IEC 61010-1 safety standard
Capable of measuring earth voltage
Small and lightweight. Shock resistant new case material
2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test
Lead wire connection to C and P terminals and proper auxiliary earth resistance can be checked by “OK” lamp
Lead wire connection to C and E terminals is good when “OK” lamp is illuminated
