The AirTAC I Joint Series is a specialized pneumatic accessory designed to provide a streamlined, single-ear linkage between a cylinder's piston rod and its driven component. Commonly utilized in conjunction with a Clevis or Y Joint, the I Joint allows for smooth angular rotation and pivoting motion, ensuring force is transferred efficiently across mechanical linkages.
Constructed for industrial durability, the I Joint features a precision-machined bore for secure pin attachment and standard internal threading for seamless integration with AirTAC piston rods. Its compact, rounded profile is engineered to minimize interference in tight automation setups while providing the structural integrity required for high-cycle industrial operations.
Key Features:
Single-Ear Articulation: Provides a reliable pivot point for mechanical linkages requiring angular movement.
Precision Machined Bore: Ensures a perfect fit for pivot pins, reducing slop and mechanical vibration.
Compact, Rounded Profile: Optimized design minimizes the footprint and prevents interference with surrounding components.
Standard Threaded Connection: Easily attaches to standard pneumatic cylinder piston rods for quick assembly.
Heavy-Duty Construction: Built to maintain performance under consistent tensile and compressive loads.
.png)
| Type\Item | NA | NB | NC | ND | NE | NF | NG | NH | NJ | NK | NI |
| F-M14X150I | 52.5 | 50 | 12.5 | 22 | 21 | 19 | 13.8 | 10 | 19 | 40 | M14×1.5 |
| F-M18X150I | 66.5 | 64 | 16.5 | 28 | 27 | 24 | 19.8 | 14 | 24 | 50 | M18×1.5 |
| F-M22X150I | 83.5 | 80 | 23.5 | 40 | 29 | 26 | 29.8 | 22 | 34 | 60 | M22×1.5 |
| F-M26X150I | 83.5 | 80 | 23.5 | 40 | 29 | 26 | 29.8 | 22 | 34 | 60 | M26×1.5 |

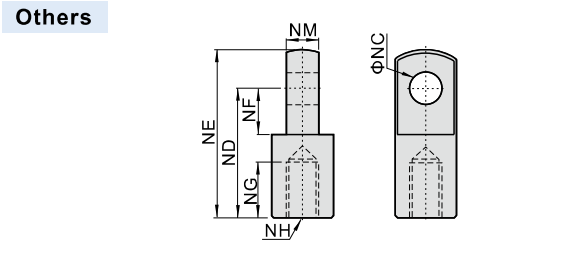

.png)
| Type\Item | NC | ND | NE | NF | NG | NH | NM |
| F-M3x050I | 3 | 12 | 15.5 | 5 | 5 | M3×0.5 | 3 |
| F-M4x070I | 4 | 16 | 21 | 6.8 | 8 | M4×0.7 | 4 |
| F-M5x080I | 5 | 25 | 32 | 14.1 | 7.5 | M5×0.8 | 6.3 |
| F-M6x100I | 6 | 21 | 28 | 8.5 | 8 | M6×1.0 | 6 |
| F-M8x125I | 8 | 30 | 40 | 11 | 15 | M8×1.25 | 8 |
| F-M10x125I | 10 | 40 | 50 | 15 | 20 | M10×1.25 | 10 |
| F-M12x125I | 12 | 48 | 62 | 24 | 20 | M12×1.25 | 12 |
| F-M16x150I | 16 | 64 | 82 | 32 | 23 | M16×1.5 | 16 |
| F-M20x150I | 20 | 80 | 102 | 40 | 30 | M20×1.5 | 20 |
| F-M27x200I | 30 | 110 | 139 | 51 | 45 | M27×2.0 | 30 |
| F-M36x200I | 35 | 144 | 181 | 65 | 55 | M36×2.0 | 35 |
| F-M42x200I | 40 | 168 | 211 | 85 | 62 | M42×2.0 | 40 |

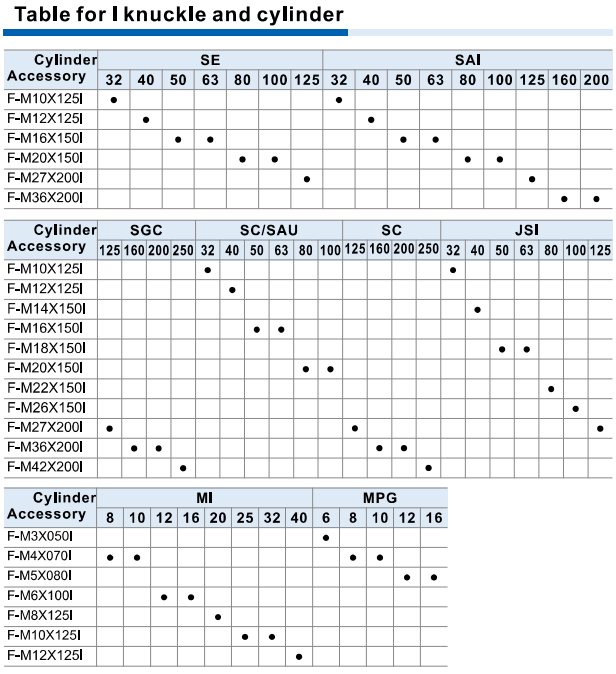

.png)

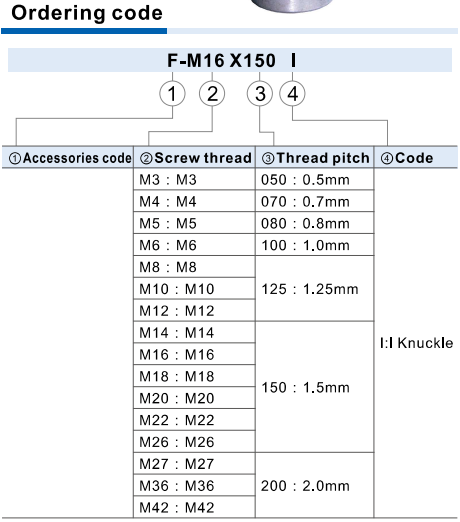

.png)
